Using Flat Field, Part 2

Input settings

The following settings are available in all Imatest versions:

• • Title  Defaults to the file name. You can change it if you wish.
  • Display Uniformity contour plots (Plot area; on by default).
    Turns the main light falloff contour plots off or on. Normally on (checked), but may be turned off by Imatest Master users interested in other results, such as hot/dead pixels and color shading. Four display options are available. Normalized refers to the first (level) plot only.
    Examples on Using Flat Field, Part 1.

• Speedup  When checked, several results (those that require significant calculation time) are not calculated (and hence not saved in the CSV output file) if the corresponding plot is not selected. This can save significant time in production environments. If you need to use Speedup, you should run Flat Field with and without Speedup checked and examine the CSV output file to see if it contains the results you require.
• Gamma  The default value of gamma, 0.5, is typical for digital cameras. Gamma affects only the second figure (the light falloff measured in f-stops); it has no effect on the first figure. Gamma can be measured by Stepchart using any one of several widely-available step charts. (Reflection charts are easiest to use but transmission charts can also be used to measure dynamic range.) Some issues in calculating gamma are discussed below the second figure.

• Corner and side regions  (default 32x32 pixels) allows you to select the areas at the corners and sides of the images to be analyzed. Choices include 10x10 pixels, 32x32 pixels, 1% (min. 10x10), 2% (min. 10x10), 5%, and 10%. These regions can be used as the reference for the Color shading ΔE and ΔC calculations.
• Crop pixels near borders (L, R, T, B)  (Settings area). If checked, the image is cropped by the number of pixels indicated near the left, right, top, and bottom borders. Several cropping (ROI selection) options are available by clicking Settings, Options and Settings… in the Imatest main window. These incluce


  Don’t ask to crop. (Use settings in LF input dialog box.)

  Select crop by dragging cursor. Ask to repeat crop for same sized image.

  Select crop by dragging cursor. Do not ask to repeat crop.

  Although the first option (Don’t ask to crop…) was the default prior to Imatest 2.3.12, the second option (Select crop by dragging cursor. Ask to repeat crop for same sized image), which is similar to the ROI selection in SFR, may be preferred.

Uniformity settings window (for Imatest Master).

The following options are available in Imatest Master and IT:

• Color shading (nonuniformity)  Display the color nonuniformity, i.e., the quotient of or difference between two of the three (R, G, B) channels or one of the L*a*b* color difference metrics (ΔE = sqrt(ΔL*² + Δa*² + Δb*² ), ΔC = sqrt(Δa*² + Δb*² ), ΔE₉₄, ΔC₉₄, ΔE₀₀, ΔC₀₀ ), referred to the center of the image (either the central region, with size specified in the Corner and side regions box or the central 25% by area). Color shading often results from the angle at which light strikes the sensor. It tends to be worst in sensors with tiny pixels. Several options are available. [Note: the center of the image is used for the reference for calculating ΔC and ΔE in the Color shading plots, but for the grid plot, which implements the CPIQ Phase 2 specification, the mean of the entire image is used as the reference for calculating  ΔC and ΔE.]
  • Color shading  Select not displayed (turns off plot), Red/Blue, Red/Green, Green/Blue, or ΔE or ΔC (various flavors & reference regions). Red/Blue (the extremes of the spectrum) is the most popular choice for displaying shading. for (plot units).  To the right of the Color shading box. Select Pixels (gamma-encoded), Intensity (linear), or f-stop difference. Grayed out if ΔE or ΔC metrics are selected.


    Pixels	Displays the ratio of the the pixel values for the selected channels. If Normalized is checked, the plot is normalized to 1.0 (maximum).
    Intensity (linear)	Removes the gamma encoding of the image file using the value of Gamma entered and displays the ratio of the intensities for the selected channels. If Normalized is checked, the plot is normalized to 1.0 (maximum).
    F-stop	Displays the f-stop difference between the selected channels. If Normalized is checked, the plot is normalized to 0 (maximum).

  • Display   Select the display type. Four choices.
    Examples are shown below

    Exaggerated color	2D. Increases the color saturation to increase the visibility of color nonuniformities.
    Pseudocolor	2D
    3D  Pseudocolor, shaded, auto-scaled.	Shading emphasizes contour shapes.
    3D  Pseudocolor, auto-scaled.

  • Normalized  (Checkbox)  If checked (the default), the shading plot is normalized to a maximum of 1 for quotient displays (Red/Green, etc.) Affects only the plot, not the numeric values beneath the plot. The unnormalized maximum and minimum and other values are displayed beneath the plot.
  • Extra smoothing  This increases the smoothing of the contour and shading plots. Checked by default and strongly recommended. When unchecked the contour and color shading plots are much bumpier, more susceptible to noise, and slower. This checkbox may be removed in a future version.
• Color uniformity profiles   Shows pixel levels along diagonal, vertical, and horizontal lines. The specific display is selected in the dropdown menu on the right. Described below.
• Grid plot  Display a grid of results. You can select the grid (m x n) and two parameters to be displayed at each grid location.
  • Grid size:  single region, 3×3 through 10×10, 20×15, 24×16, 32×18, 15×15,16×16, 20×20, 25×25, 27×27 (not in this exact order).
  • Grid calculation:
    • Mean (pixel level) and sigma,
    • Color differences Delta-C and Delta-E, Delta-C 94 and Delta-E 94, Delta-C 00 and Delta-E 00,all calculated relative to the mean for the entire image. Note: The CPIQ color variability metric (D) is the maximum Delta-C in the grid plot. It is shown below the plot when Delta-C and Delta-E are selected.
    • Mean (pxl) & Delta Color Temp K,
    • R/G and B/G pixel ratios,
    • CIELAB a* and b*,
    • Mean (pixel level) and SNR (s/n), Mean (pixel level) and SNR (dB).
  • Minimum threshold (0-1) (default = 0). A minimum threshold for pixels to be included in grid plot analysis. Useful for automatically excluding dark areas in images like the one on the right.

We can add more grid plot measurements on request.

• Histogram plot  Useful in diagnosing stuck (hot and dead) pixels. Described below.
• Fine detail plot  Display a detailed image of noise and sensor nonuniformity (examples below). Slow variations in image density— vignetting (low spatial frequencies) — are removed so that only short to medium range variations— sensor noise, dust spots, etc.— remain. The calculation can be slow and uses lotsof memory because Matlab calculations are performed in double precision mathematics, which requires 24 bytes per color pixel (8 bytes per channel).

  Exaggerated local noise (standard)

  Local noise with added contours

  Pseudocolor contours with colorbar

  Spot detection w / threshold (pseudocolor)

  (Several additional 3D displays)

  Several display options are available. The first displays noise exaggerated by a factor of 10. The second superposes contour plots (from a smoothed version of the image) on the noisy image. The third produces a pseudocolor image of local nonuniformities (also smoothed) with a color bar (legend) on the right. The fourth emphasizes dark spots, usually caused by dust. A histogram can also be added beneath the fine detail plot.

• Channel  You can choose between Red, Blue, Green, or Y (luminance) channels. Color space  Used for converting from RGB color space where L*a*b* color difference metrics are displayed.
• Hot and dead pixels  By checking the appropriate boxes you can display hot or light pixels (red x) and/or dead or dark pixels (blue •).
  The definition depends on whether Absolute pixel threshold or Relative % threshold is selected:

  Display hot or dead pixels (o): Absolute pixel threshold

  Hot pixels are stuck at the sensor’s maximum value (255 in 8-bit files) and dead pixels are stuck at 0. Because signal processing— especially JPEG compression— often causes these values to shift, you can use the sliders to set the detection threshold between 6-255 for hot pixels and 0-249 pixels for dead pixels. (The extreme values are for measurements made on white or black fields.) Clicking on < or > at the ends of the sliders adjusts the threshold by 1. The default values are 252 and 4, respectively.

  Display light or dark pixels (o): Relative % threshold

  Light pixels are more than the relative % threshold above the mean of the 8 neighbors; Dark pixels are more than the relative % threshold below the mean of the 8 neighbors.

  Clusters (in Imatest 4.0+) are defined as groups of two or more adjacent pixels.

  JPEG files should be saved at the highest quality level for this feature to work well; isolated hot and dead pixels tend to be smudged at lower quality levels. Details of hot and dead pixels are presented below. You can choose whether to count a pixel as hot or dead (light or dark) if the criteria are met by any color channel (the default), all channels, or the selected channel.

Results

Hot and dead pixels

Imatest Master allows you to detect hot and dead pixels. Hot pixels are stuck at or near the sensor’s maximum value (255 in 8-bit files); dead pixels are stuck at or near 0. Image processing (especially demosaicing and data compression) may alter these numbers. Thresholds lower than 255 and higher than 0 are usually required, particularly for JPEG files, where isolated pixels are smeared, even for the highest quality levels. Hot and dead pixels cannot be reliably detected in JPEGs saved at lower quality levels.

The hot and dead pixels shown on the right met the criteria that they were above or below the threshold for any color channel. All channels or the selected channel could have been selected.

The first figure in Uniformity shows two simulated hot (x) and dead (•) pixels. The CSV output file on the right shows the basic statistics for the image (8185344 pixels total). h = 245 and d = 10 are the hot and dead pixel thresholds, respectively. The number and fraction of the hot and dead pixels are shown, followed by the x and y-locations of the first 100 hot and dead pixels. The Histogram plot, described below, is useful for selecting thresholds.

Optical Center

The optical center is the approximate geometric location of the brightest part of the image. It has to be calculated very carefully using a centroid calculation (which is mathematically similar to center of gravity) because noise makes the very broad peak location unreliable— even with highly smoothed images. The horizontal (x) and vertical (y) Optical Centers are calculated separately using the same algorithm. We describe the horizontal calculation.

• Find the mean value (L_mean(x)) of a horizontal band that runs across the image and extends from 0.25 to 0.75 the image height (i.e., half the image height).
• Smooth (lowpass filter) L_mean(x).
• Find the peak value of smoothed L_mean(x). Call it L_peakX. (The peak location is not a stable indicator of the Optical Center.)
• The X-Optical Center is the centroid of the object defined by G(x) = L_mean(x) – 0.95*L_peakX  where  L_mean(x) > 0.95*L_peakX .
  The equation is   X-Optical Center = ∫x G(x) dx  ⁄  ∫G(x) dx .

Optical center is displayed as a yellow circle (“O”) in luminance contour plots and is reported in the CSV and JSON output files.

Note that the optical center (for illumination) described here is one of three optical centers measured by Imatest (the others are center of distortion and center of sharpness).

Color shading (nonuniformity)  (not in Studio)

The Color shading plot displays the ratio or difference between R, G, and B channels or L*a*b* color differences (ΔE, ΔC, ΔE₉₄, ΔC₉₄, ΔE₀₀, or ΔC₀₀ ). Two examples are illustrated below. The first shows shading as the ratio of Red to Blue (R/B) channel pixels. Plotted results have been normalized to a maximum of 1.0. Normalization only affects the plots; it makes the plotted results relatively insensitive to white balance errors. The background displays the image with exaggerated colors (HSV saturation S has been increased by 10x for low saturation values; less for high values.)

R/B Color shading, exaggerated color.

Normalization refers to the plot-only. The numbers displayed below the plot are not normalized.

The R/B Pixel ratio max and min (1.02 and 0.94, above (unnormalized)) are taken over the entire smoothed image (not restricted to the corner and side areas indicated by the red rectangles). For this reason they tend to be more extreme than the maxima and minima of the squares (displayed on the next line), and the ratio between them (0.94/1.02 = 0.92) is generally lower than the minimum ratio between the center and the sides & corners. They are calculated and included in numeric outputs (CSV, JSON, and XML files) only when the Color shading plot is produced. Other values (from fixed regions) are always calculated and included in numeric outputs. Two out of twenty-nine of these results are shown in the CSV and JSON examples below.

JSON output. Values in the image are highlighted.

        “pixel_color_stats”: “Pixel ratios, R/B, R/G, R/B, B/R, G/R, B/G,”,
        “maximum_stat”: [1.017,1.006,1.015,1.064,1.054,1.025],
        “minimum_stat”: [0.9396,0.9487,0.975,0.9829,0.9933,0.9844],
        “resTable_comment”: “Results table variables start with resTable_.”,
        “resTable_entries”: “Center, UL, LL, UR, LR, L-Ctr, R-Ctr, T-Ctr, B-Ctr, Center 25%,Worst corner, Mean corner, Best corner, Pct corner var”,
        “resTable_R_div_B_unnorml”: [1.0134,0.9702,0.96837,0.95031,0.94276,0.99793,0.97397,0.99369,0.99091,1.0124,0.94276,0.95791,0.9702,2.828],
        “resTable_R_div_G_unnorml”: [1.0047,0.97956,0.97873,0.9605,0.96265,0.99398,0.98409,0.99673,0.99411,1.0043,0.9605,0.97036,0.97956,1.945],

The second example shows the R/B ratio in pseudocolor. (The difference in f-stops could also be displayed, but is not shown here.)  Plotted results have been normalized to 1.0.

R/B color shading, pseudocolor.

Color nonuniformity can be displayed as one of the L*a*b* color difference metrics (ΔE = sqrt(ΔL*² + Δa*² + Δb*² ), ΔC = sqrt(Δa*² + Δb*² ), ΔE₉₄, ΔC₉₄, ΔE₀₀, ΔC₀₀ ), referred to the center of the image (either the central region, with size specified in the Corner and side regions box or the central 25% by area). The ΔC metrics are of particular interest for color metrics because they omit luminance differences (ΔL*). It is displayed below as a 3D plot, which can be rotated for enhanced visualization..

ΔC 2000 color shading (omits ΔL*), 3D shaded pseudocolor.
The Extra smoothing box should always be checked for 3D plots.

Uniformity profiles

Uniformity profiles displays profiles of image levels along several lines: Diagonal Upper Left-Lower Right, Diagonal Lower Left-Upper Right, Vertical Top-Bottom (center), and Horizontal Left-Right (center). Several display options are listed below.

The independent axis goes from 0 to 1 in steps of 0.025 (41 steps total). Detailed results for the 41 steps are written to the CSV and XML output files.

Polynomial fit  A fourth order fit to R, G, and B (or L*, a* and b*) is shown as faint dotted lines in the upper (Diagonal UL-LR) plot. The equation for the fit is

y = c₁r⁴ + c₂r³ + c₃r² + c₄r + c₅

where r is the distance from the center normalized to the center-to-corner distance (r = 1 at the corners). The Y-fit line is calculated from the R, G, and B fit lines using luminance coefficients, and thus does not have separate polynomial fit coefficients. The R, G, and B coefficients are in displayed the CSV and JSON output files. They have the following format in the CSV output file:

Grid plot

Several grid choices (3×3 through 32×18) and plot calculations are available.

Uniformity Grid plot

For the grid plot, which implements the CPIQ Phase 2 specification, the mean of the entire image is used as the reference for calculating  ΔC and ΔE.

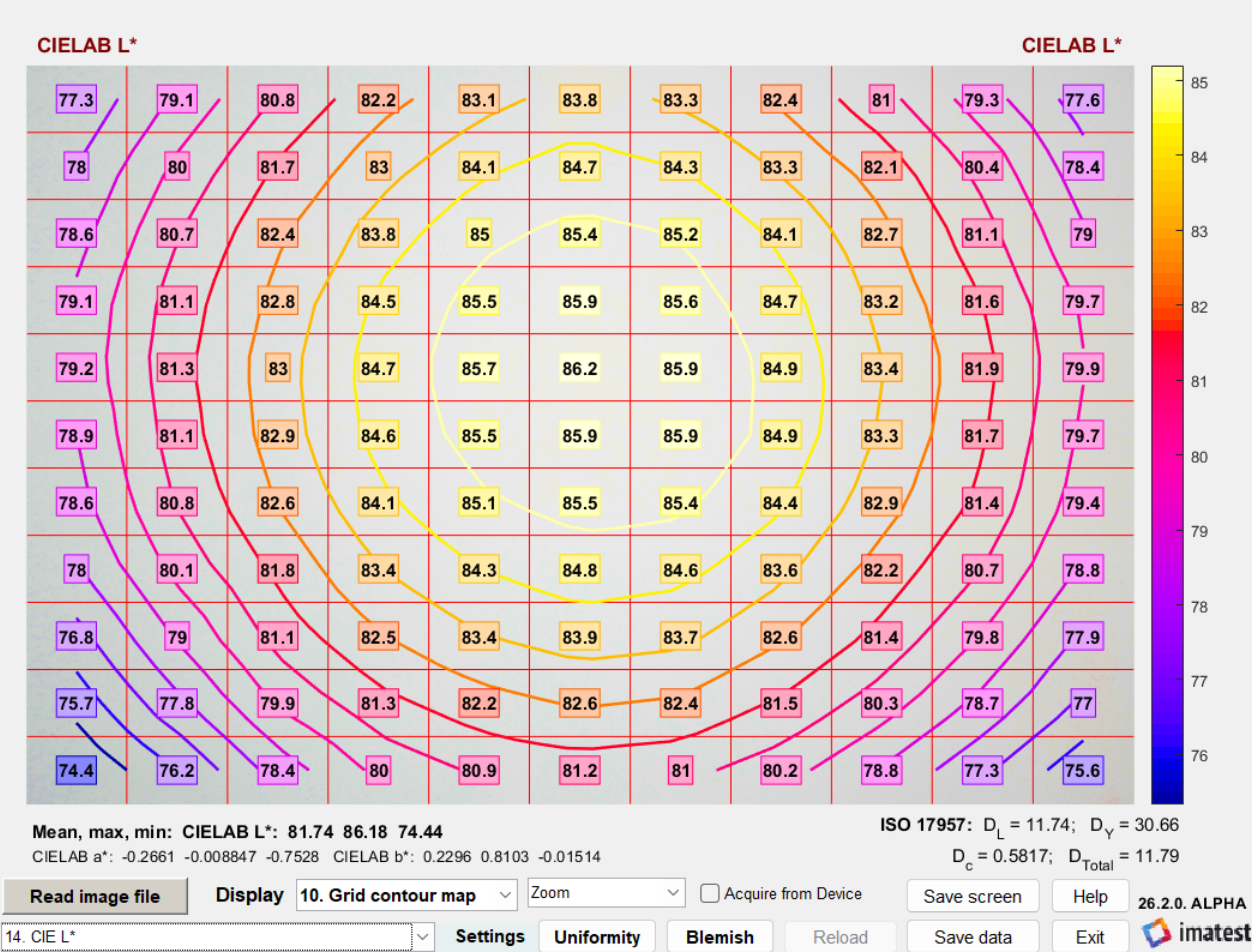

Grid contour map

The grid contour map, introduced in Imatest 2020.2, is particularly good for visualizing results. It works very well in Uniformity Interactive because you can quickly scan through different results. Unlike the grid plot, which displays two or three values in the grid (and is difficult to read), it displays only one value. But this isn’t much of a drawback because it’s easy to scroll through the results.

Histograms

The histogram plot, introduced in Imatest Master 2.3.11 (July 2007), facilitates the detection and the setting of thresholds for stuck (hot, dead, etc.) pixels. Histograms of log₁₀(occurrences+1) are displayed for the red, green, and blue channels. [The logarithm compresses the plot so even a single bad pixel is visible. log₁₀(occurrences+1) is used because log(0) = −∞ (minus infinity), while log(1) = 0.]

R, G, and B Histograms showing stuck pixels.

In this example, single stuck pixels are plainly visible near levels 0 and 252. Although these stuck pixels were synthesized, their levels is slightly different due to JPEG compression (they were the same in a TIFF file). The dead pixel threshold is shown on the left in blue; the hot pixel threshold is shown on the right in red. You can quickly see if the thresholds are set correctly— if they are outside the valid density region and if the dead and hot pixels are above and below their respective thresholds. You can change threshold settings and rerun Uniformity if necessary.

Noise detail

shows an exaggerated or pseudocolor image of the noise detail with long-range density variations removed. Four options are available:

The local noise figures are produced by

1. Subtracting a highly smoothed version of the image from the image itself. This removes broad image variations (low spatial frequencies), leaving only the fine detail. (The signal is highpass filtered.) Exaggerating the fine detail by a factor 5x or 10x, depending on the signal-to-noise ratio (the average pixel level of the original image divided by the standard deviation of the difference image (the results of step 1), i.e., the RMS noise). Adding an offset to the the exaggerated signal so the average level of the image is displayed as middle gray.
2. If Local noise with added contours is selected, contours are calculated by subtracting the same highly smoothed version of the image from a moderately smoothed version of the image. Smoothing is necessarily because noise would make the contours unintelligibly rough.

The first image (below) shows noise detail for the Canon EOS-20D at ISO 1600 with the 10-22mm lens set to f/4.5. No surprises here; electronic noise dominates.

Noise detail for Canon EOS-20D, ISO 1600, 10-22mm lens, f/4.5.

The second image (below) shows noise detail for the Canon EOS-20D at ISO 100 with the 10-22mm lens set to f/8. Thanks to the small aperture, some very faint dust spots are visible. The dust is on the anti-aliasing/infrared filter/microlens assembly in front of the sensor. This assembly can be well over 1 millimeter thick. Stopping the lens down (increasing the f-stop setting) reduces the size of dust spots but makes them darker. This image has a surprise in the form of concentric circles: bands where the noise appears to be higher or lower than the remainder of the image. This may be caused by (a) the Analog-to-Digital (A-D) converter in the image sensor chip, which can have small discontinuities when, for example going from level 127 to 128: binary 01111111 to 10000000, or (b) JPEG artifacts. Rrecall that these noniniformities are exaggerated by a factor of 10: they would be invisible or barely visible on an actual image; you might seem then faintly in smooth areas like skies.

Noise detail, Canon EOS-20D, ISO 100, 10-22mm lens, f/8.

Here is the same image, displayed in pseudocolor (which shows the amount of variation) with a color bar, and including a histogram (of individual pixels, not the smoothed image used to generate the contour plot on the left). The scale varies from image to image; it is not fixed like the scales for for the luminance and f-stop contour plots (which display long range, low spatial frequency variations). The histogram is narrower than the separate histogram image (above) because long-range (low spatial frequency) density variations have been removed. It is a good approximation to the average sensor noise. The circular pattern may originate with reflections between the light source, lens, and sensor.

Local nonuniformities shown in pseudocolor, Canon EOS-20D, ISO 100, 10-22mm lens, f/8.

The image below is an enlargement (a zoom) of the above image, centered on the dust spot to the left of the center. You can zoom into an image by using the mouse to draw an rectangle, or by simply clicking on a feature you want to enlarge. You can restore the original image by double-clicking anywhere on the image.

The following image is the noise detail from a 2 f-stop underexposed image with maximum luminance = 0.161 (out of 1), f/4.5, ISO 100. It shows a clear pattern. Although it looks alarming, this pattern is invisible because (a) it is in a very dark region, (b) it is aliased. The actual pattern has a much higher spatial frequency, hence is less visible. You need to zoom in to view the true pattern, which is less visible than it appears here.

Noise detail, illustrating aliasing. (The actual noise is not as bad as it looks.)

Spot detection   (not in Studio; better with Blemish Detect)

Because Spot detection works so much better in Blemish Detect, the description will be hidden unless you press the button below.

Display the description of Spot detection
