120° Collimator Lens for Wide Field of View

May 15, 2018
September 28, 2024
OSCL1223C-Main
images

OSCL1223C-Main

$4,700.00

The OSCL1223 Collimator Lens is for 120° Wide Field of View. A sub-lens is required.

Select one or more sub-lenses:

  • *

    Sub Lens for testing 4000mm to infinite distance + $720.00
    Sub Lens for testing 3000mm to 1300mm virtual distance + $720.00
    Sub Lens for testing 1200mm to 800mm virtual distance + $720.00
    Sub Lens for testing 600mm to 700mm virtual distance + $720.00
    Sub Lens for testing 500mm virtual distance + $720.00
    Sub Lens for testing 350mm to 400mm virtual distance + $720.00
SKU: OSCL1223C-Main Categories: ,

Our product pricing and shipping rates do not include import duties, taxes or fees. The customer / recipient is responsible for these expenses.

Description

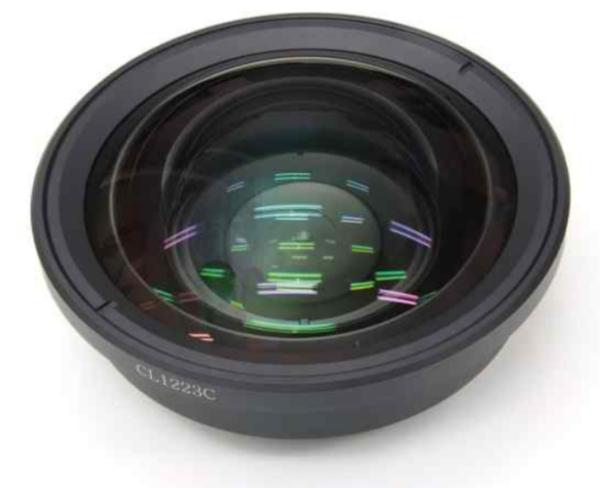

The OSCL1223C Collimator Lens for 120° Wide Field of View

  • Requires Sub-lens
  • EFL: 350.1mm
  • Inspectable FOV of CCM: 120°
  • Assemblyy Size: Ф 190mm X L 83.92mm
  • Exit Pupil Size: Φ4.5mm (Distance from camera lens to CL)
  • Exit Pupil Position: 23.0mm at Object Distance infinity
  • Working Distance (from CL 1st lens R1 surface to chart): 248.2mm
  • Chart size: Φ1225.2mm

Object Distance (mm)

Sub Lens

Working Distance

Chart Size (Ф, mm)

Infinity
10000
8000
4500
4000
3000
2500
2000
1900
1800
1700
1600
1500
1400
1300
1200
1100
1000
900
800
700
600
500
400
350

0.0D
0.0D
0.0D
0.0D
0.0D
0.5D
0.5D
0.5D
0.5D
0.5D
0.5D
0.5D
0.5D
0.5D
0.5D
1.0D
1.0D
1.0D
1.0D
1.0D
1.5D
1.5D
2.0D
2.5D
2.5D

248.15
236.34
233.53
233.04
220.07
220.11
213.4
203.88
201.48
198.86
195.99
192.83
189.34
185.47
181.14
181.57
175.76
169.12
161.48
152.58
145.86
132.75
117.58
99.97
87.61

1225.2
1179.2
1168.2
1127.3
1116.1
1120.4
1094.1
1056.8
1047.4
1037.2
1025.9
1013.6
999.9
984.7
967.7
971.5
948.7
922.6
892.6
857.7
832.6
781.1
727.2
659.7
610.5
