80° Near Infrared Collimator Lens for Medium Field of View

September 28, 2024
September 28, 2024
cl825ir

$1,800.00

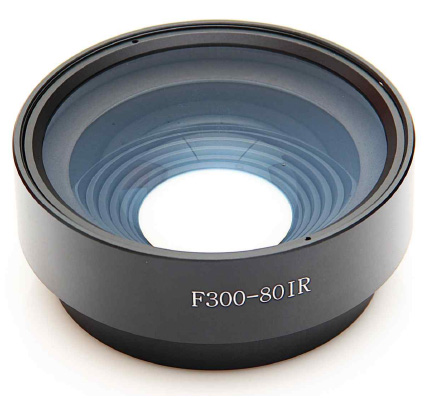

The OSCL825ir Collimator Lens is for NIR wavelengths and 80° Field of View or less.

SKU: OSCL825ir Categories: ,

Our product pricing and shipping rates do not include import duties, taxes or fees. The customer / recipient is responsible for these expenses.

Description

The OSCL825ir Collimator Lens for 80° Field of View or less.

  • Lens Composition: 5 Glass Lenses ( 2 HRI Glass )
  • Compatible with IR System (850nm, 940nm)
  • EFL: 286.8mm (850nm), 288.7mm (940nm)
  • Inspectable FOV of CCM: 80 degrees
  • Ass’y Size: Ф 94.0mm X L 41.5mm , 0.44kg
  • Exit Pupil Size: Φ4.0mm
  • Exit Pupil Position: 25.0mm (from vertex C/L to CCM)

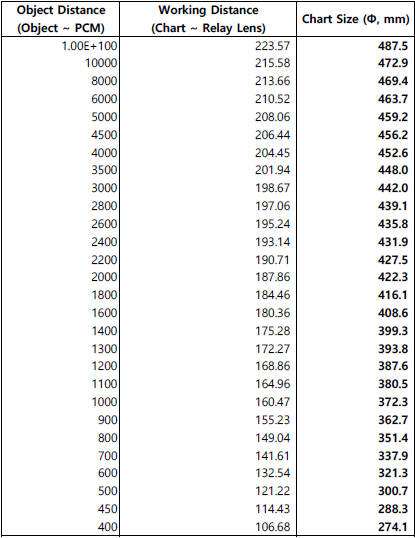

  • Working Distance (from C/L 1st Lens R1 surface to chart):

223.6mm at Object Distance Infinity (0.0D)
surface to Chart) 225.2mm at Object Distance Infinity (0.0D)
