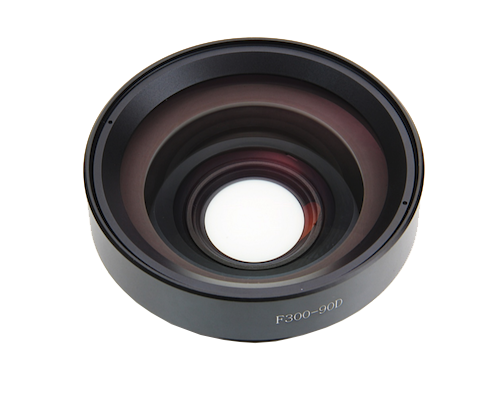

Name: 90° Collimator Lens for Medium-Wide Field of View
SKU: 69603
Price: 2200.00 USD
Availability: InStock

$2,200.00

The OSCL921 Collimator Lens is for cameras with a 90° Field of View or less.

Wavelength

Clear

OSCL921e-SUB0.67D * + $440.00
0.67 Diopter sub-lens for OSCL921e for testing between 1200mm to infinite virtual distance
OSCL921e-SUB1.0D * + $440.00
1.0 Diopter sub-lens for OSCL921e for testing between 800mm to1200mm virtual distance
OSCL921e-SUB1.33D * + $440.00
1.33 Diopter sub-lens for OSCL921e for testing between 600mm to 800mm virtual distance
* + $440.00
1.67 Diopter sub-lens for OSCL921e for testing between 500mm to 600mm virtual distance

Categories: Collimators, Equipment

Our product pricing and shipping rates do not include import duties, taxes or fees. The customer / recipient is responsible for these expenses.

Description

Model name	CL-921IR	CL-921e
EFL	336.2mm (850nm), 337.2mm(940nm)	300.00mm
Inspectable FOV of CCM	90°9	0°
Assembly Size	Ф121.0mm X L54.87mm	Ф121.0mm X L54.87mm
Weight	0.84kg	0.84kg
Exit Pupil Size	Φ4.5mm	Φ4.5mm
Exit Pupil Position (from Vertex of CL CCM side to CCM)	21.0mm	21.0mm
Resolution suitability	<=20MP	<=20MP
Construction	Main Lens Only	Collimator + Sub-Lens
Spec Sheet	Download	Download

90° Collimator Lens for Medium-Wide Field of View
