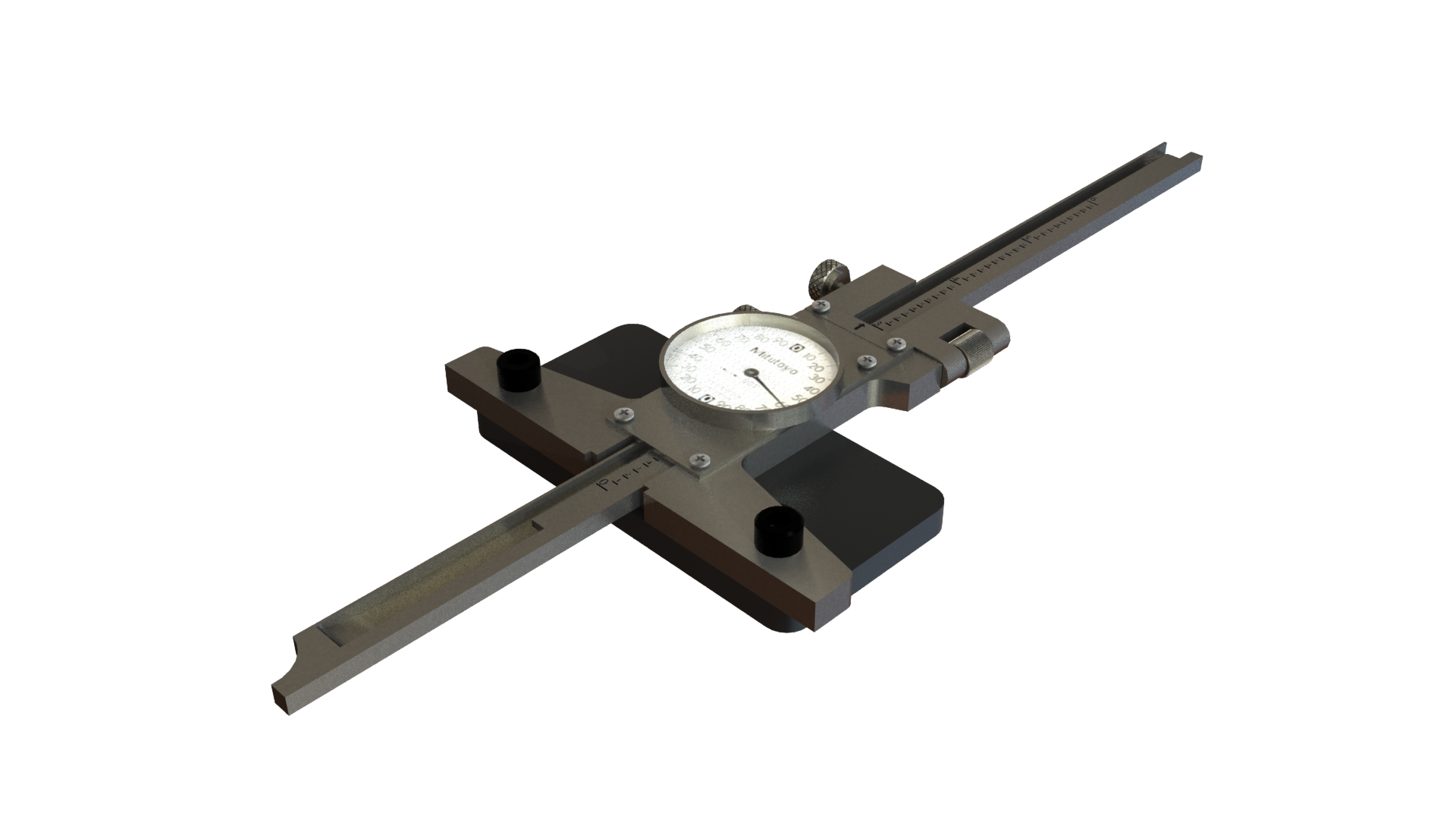

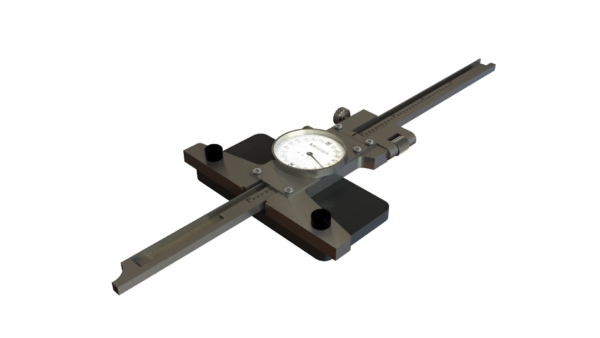

BTS-CALZ-KIT
BTS-CALZ-KIT (Analog)

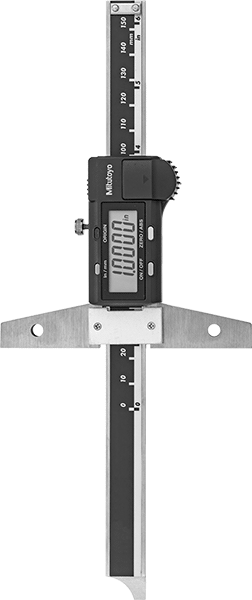

BTS-CALZ-KIT_Digital
BTS-CALZ-KIT (Digital)

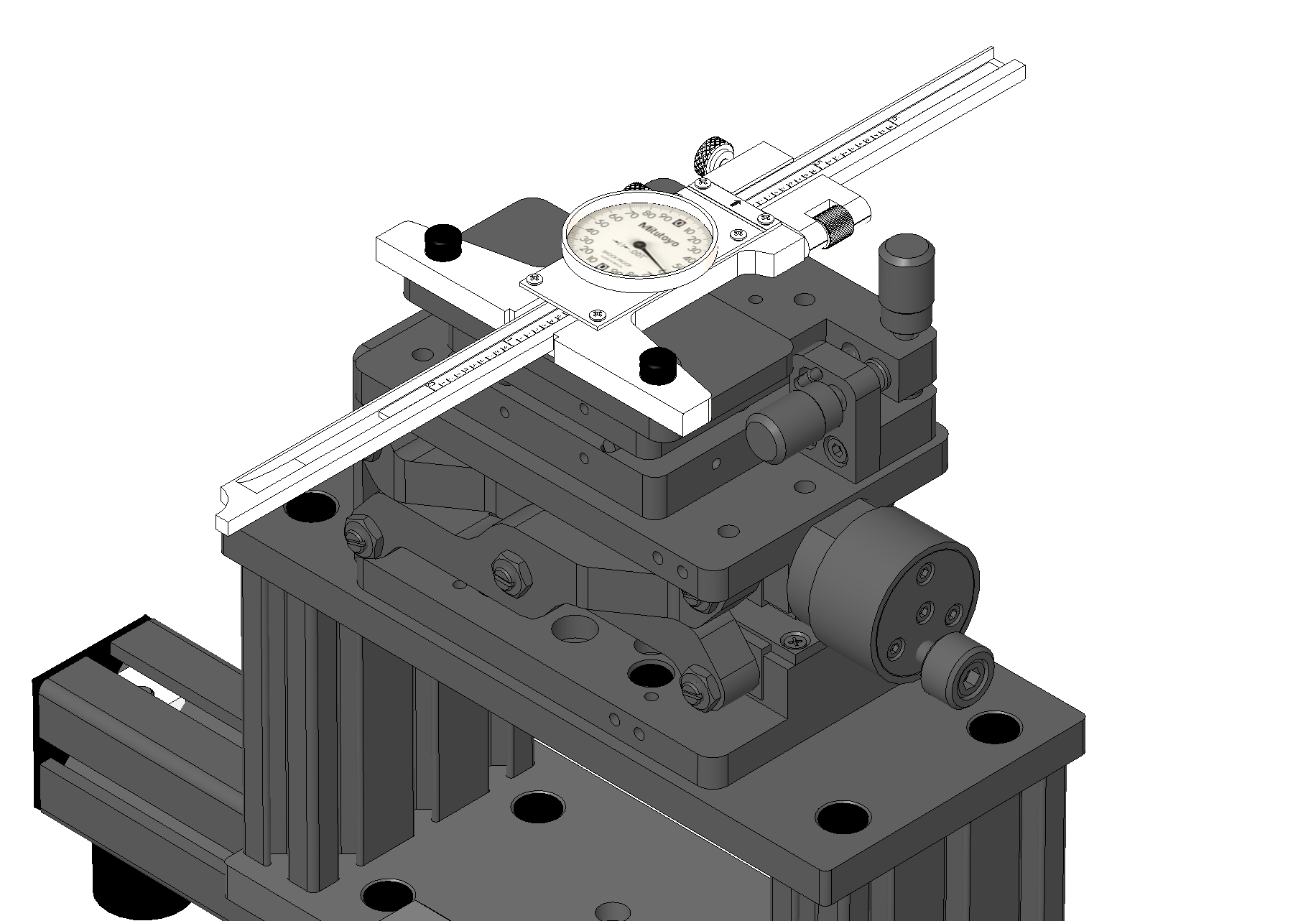

BTS-CALZ-KIT (Analog) on BTS Camera Podium
BTS-CALZ-KIT (Analog) on BTS Camera Podium
$600.00 – $900.00
Upgrade your Benchtop Test Stand calibration process with the Z-axis calibration kit. This compact kit includes a precise depth gauge and a versatile BTS adapter plate, allowing for easy measurement of the distance between your camera and test chart. When used with Imatest’s hardware control software, you can automate the positioning of your motorized BTS, enhancing efficiency and accuracy. Perfect your testing setup today!
Description
The Z-axis calibration kit for the Benchtop Test Stand allows you to calibrate your camera-to-target distance. The kit includes a depth gauge and BTS adapter plate for measuring the physical distance between the center of the camera podium and your test chart. Use the calibration kit along with Imatest’s hardware control software to automate the positioning of your motorized BTS.
Benchtop Test Stand Z Axis Calibration Kit Features
- Includes High Precision Mitutoyo depth gauge and adapter plate
- Easily integrates with Imatest Benchtop Test Stand
- Available in Analog or Digital
| Specifications | Details |
| Weight: | .23 Kg (.5 lbs) |
| Dimensions: | 260 x 100 x 25 mm (10.25” x 4” x 1”) |
| Mounting Pattern: | Depth Gauge: M5 x 70mm | Adapter Plate: M6 x 50mm |
| Analog Depth Gauge Measuring Increments: | 0.001″ |
| Digital Depth Gauge Measuring Increments: | Imperial Mode: 0.0005″ | Metric Mode: 0.01 mm |
|
Digital Depth Gauge Accuracy: |
Imperial Mode: ± 0.001” | Metric Mode: ± 0.025 mm |
