Imatest Modular Test Stand Wide FOV Package

July 21, 2020
March 21, 2024
WFOV Package
images

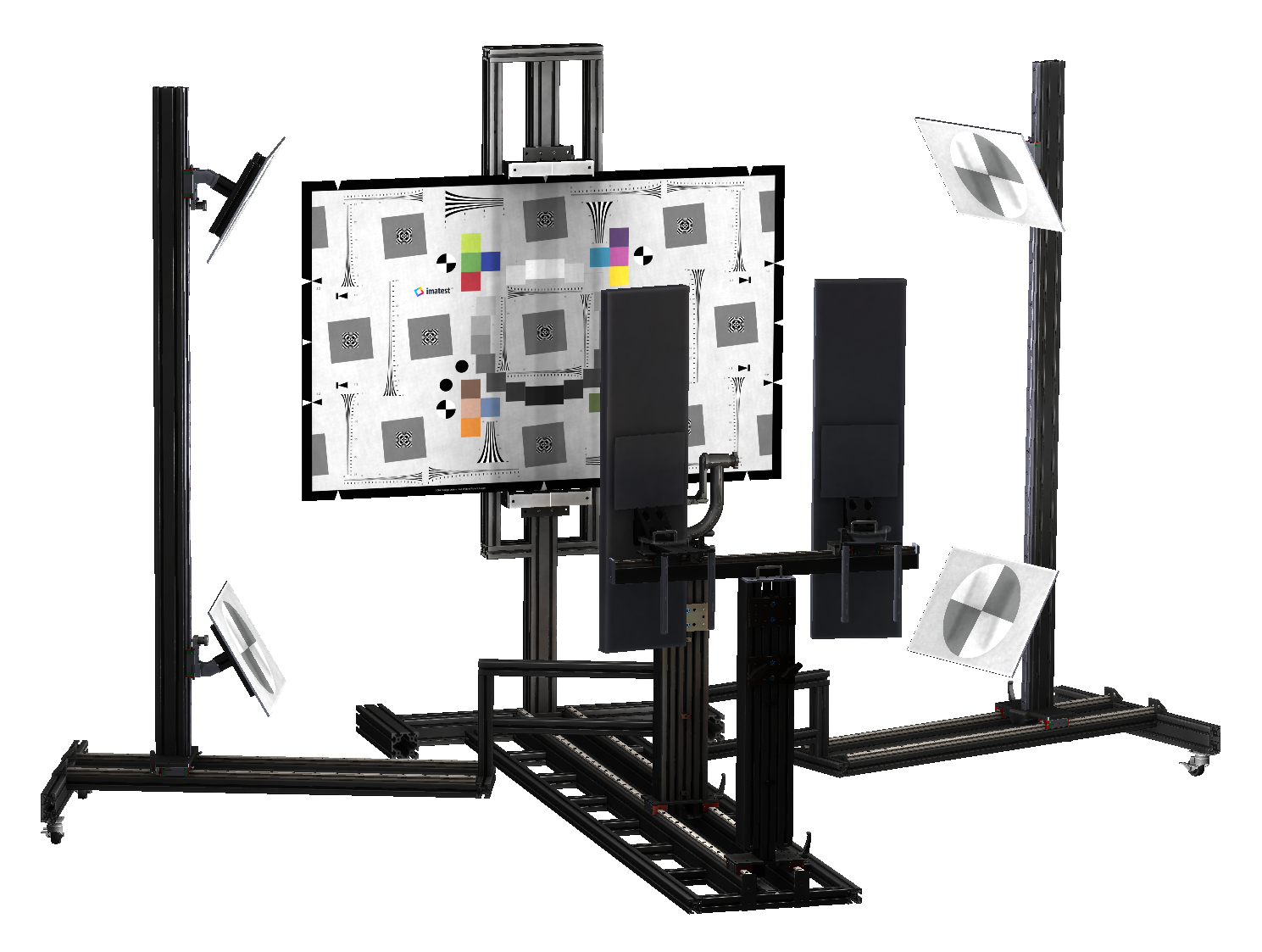

WFOV Package

Imatest Reflective WFOV Module
images

Imatest Reflective WFOV Module

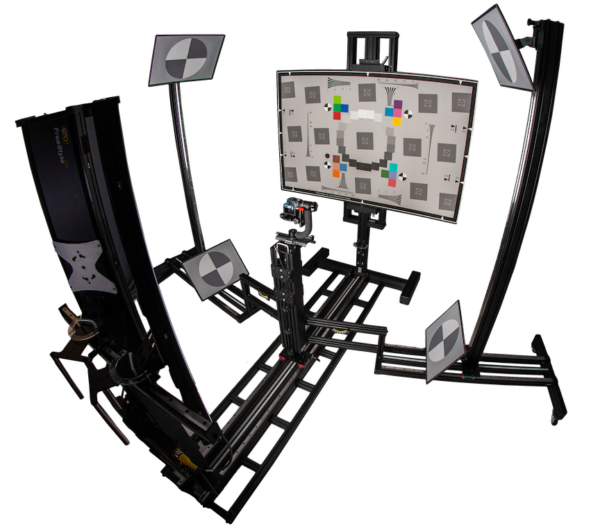

WFOV Module
images

WFOV Module

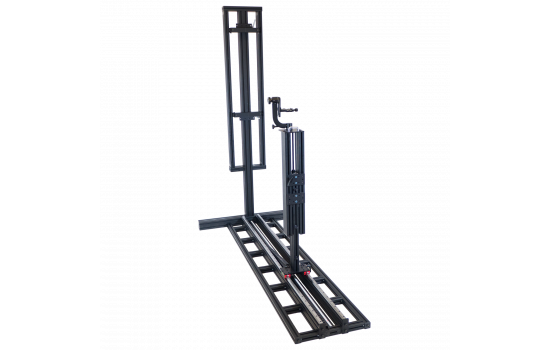

IMTS Base Module
images

IMTS Base Module

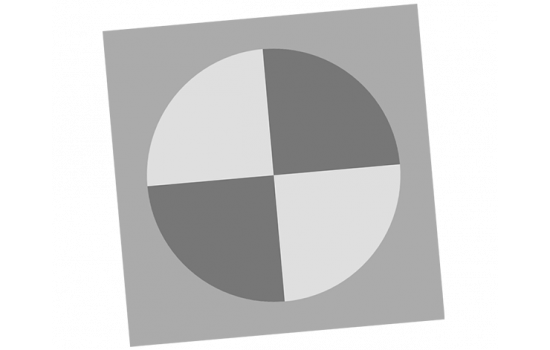

SFRreg Chart
images

SFRreg Chart

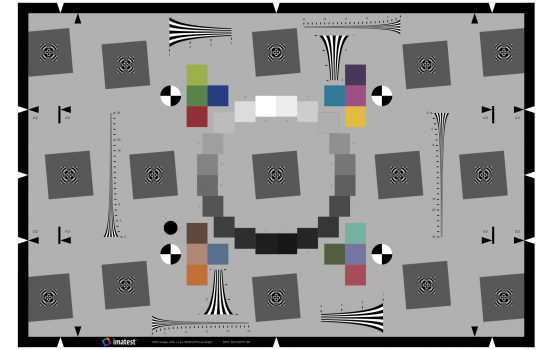

eSFR ISO Chart
images

eSFR ISO Chart

$0.00

This package includes everything you need to set up your test lab for testing camera systems with FOV up to 200º.

Software

  • *

Imatest Modular Test Stand

  • *

    Imatest Modular Test Stand - 2M Rail with Tripod Head + $8,900.00
    Imatest Modular Test Stand - 3.5M Rail with Tripod Head + $10,950.00

Imatest MTS Wide FOV Module

  • *

    Imatest MTS Wide Field of View Module + $11,240.00 – $12,780.00

Reflective LED Lights

  • *

    Kino Flo 31 LED DMX Lights (Set of 2) + $9,490.00

Reflective SFRreg & eSFR-ISO Charts

  • *

    IMTS-RWFOV: 5 Chart Set for Test Distance <1m & FOV <160º + $1,420.00
    IMTS-RWFOV: 5 Chart Set for Test Distance <1m & FOV >160º + $1,640.00
    IMTS-RWFOV: 5 Chart Set for Test Distance >1m + $1,930.00
SKU: IMTS-RWFOV-PKG Categories: ,

Description

This Imatest Wide Field of View Testing Package starts with our Modular Test Stand base module and includes everything you need for testing up to 200º FOV:

Software

Compare the different versions of Imatest Software.

Test Equipment

The Modular Test Stand base module comes standard with a 2m rail.

The MTS Wide Field of View Module integrates with the MTS to enable testing up to 200°. See more about ultra wide solutions.

Reflective lighting

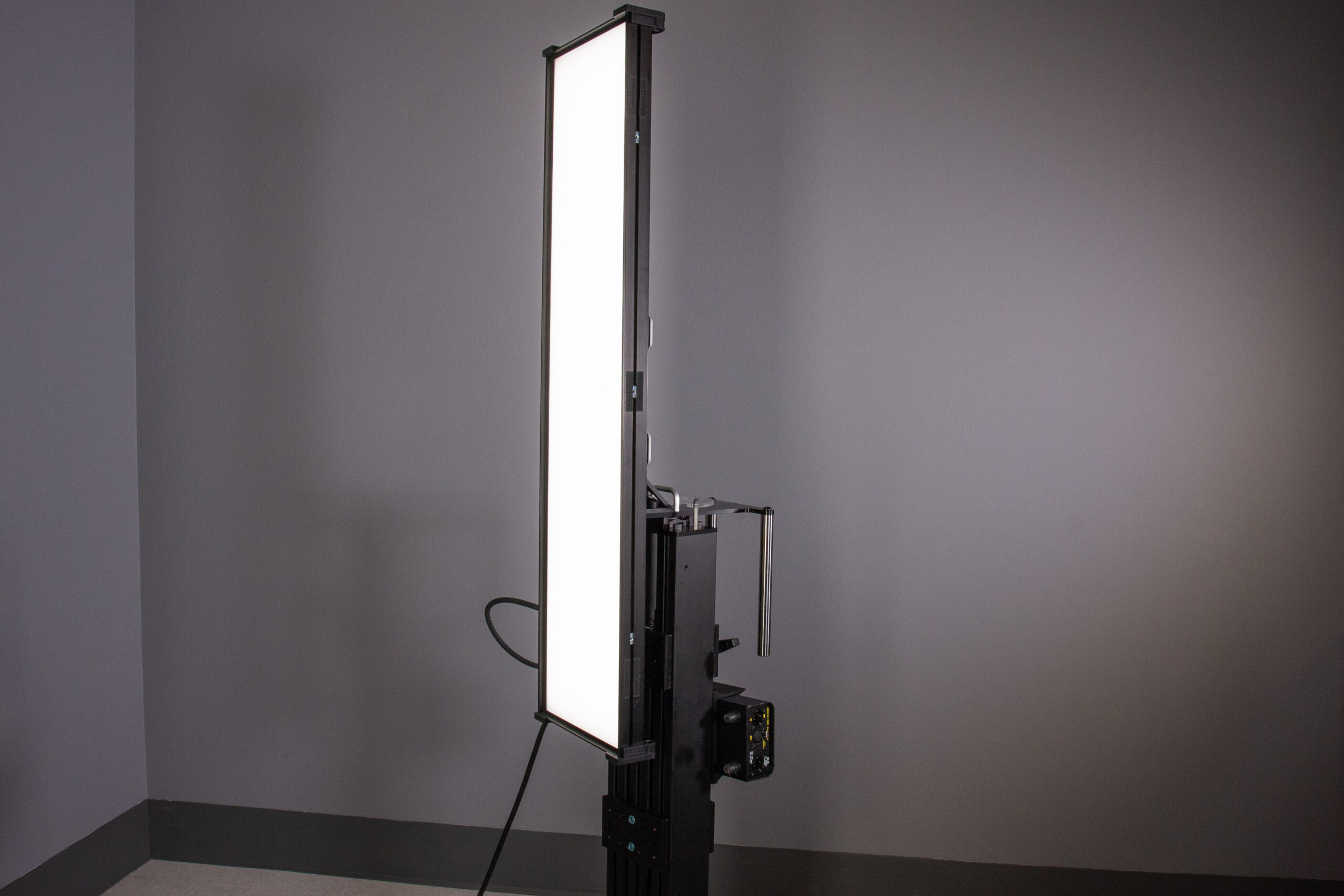

The Kino Flo F31 LED Lights integrate with the WFOV module.

Reflective eSFR-ISO and SFRreg charts

eSFR-ISO targets measure sharpness along with many other image quality factors.

SFRreg targets can be used for testing wide FOV systems and long range testing.

The recommended chart sizes depend on your test distance and FOV:

  • Testing under 1m with <160º FOV: 4 Outer targets: SFRreg – Size 0.5x, 1 Center Target: eSFR ISO – Size 2x. All charts ship mounted.
  • Testing under 1m with >160º FOV: 4 Outer targets: SFRreg – Size 1x, 1 Center Target: eSFR ISO – Size 2x. All charts ship mounted.
  • Testing over 1m: 4 Outer targets: SFRreg – Size 1.5x, 1 Center Target: eSFR ISO – Size 4x. SFRreg charts ship mounted. The eSFR ISO 4x chart ships in a tube and requires mounting.

Specifications:

  • Weight for RWFOV Module (not including base module, charts or lights): 173lb / 79kg; Crated: 328lb / 149kg
  • Overall fixture dimensions for full width max setup: Length: (Length of MTS Base Module) x Width: 3.38m x Height (2.04m)
  • Crated dimension: 2.03m x 0.61m x 0.53m
  • Testing distances range: 0.5m – 1.5m @ 3:2 or 16:9 camera aspect ratio
  • Material: Black anodized 6105 T5 Aluminum
  • Includes one Isolight Puck with cable
  • Lead Time: 8 weeks
