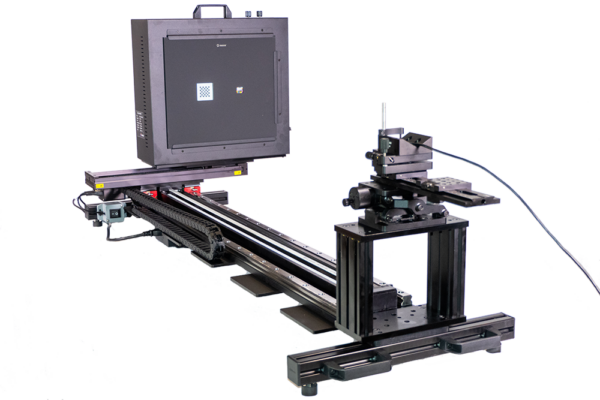

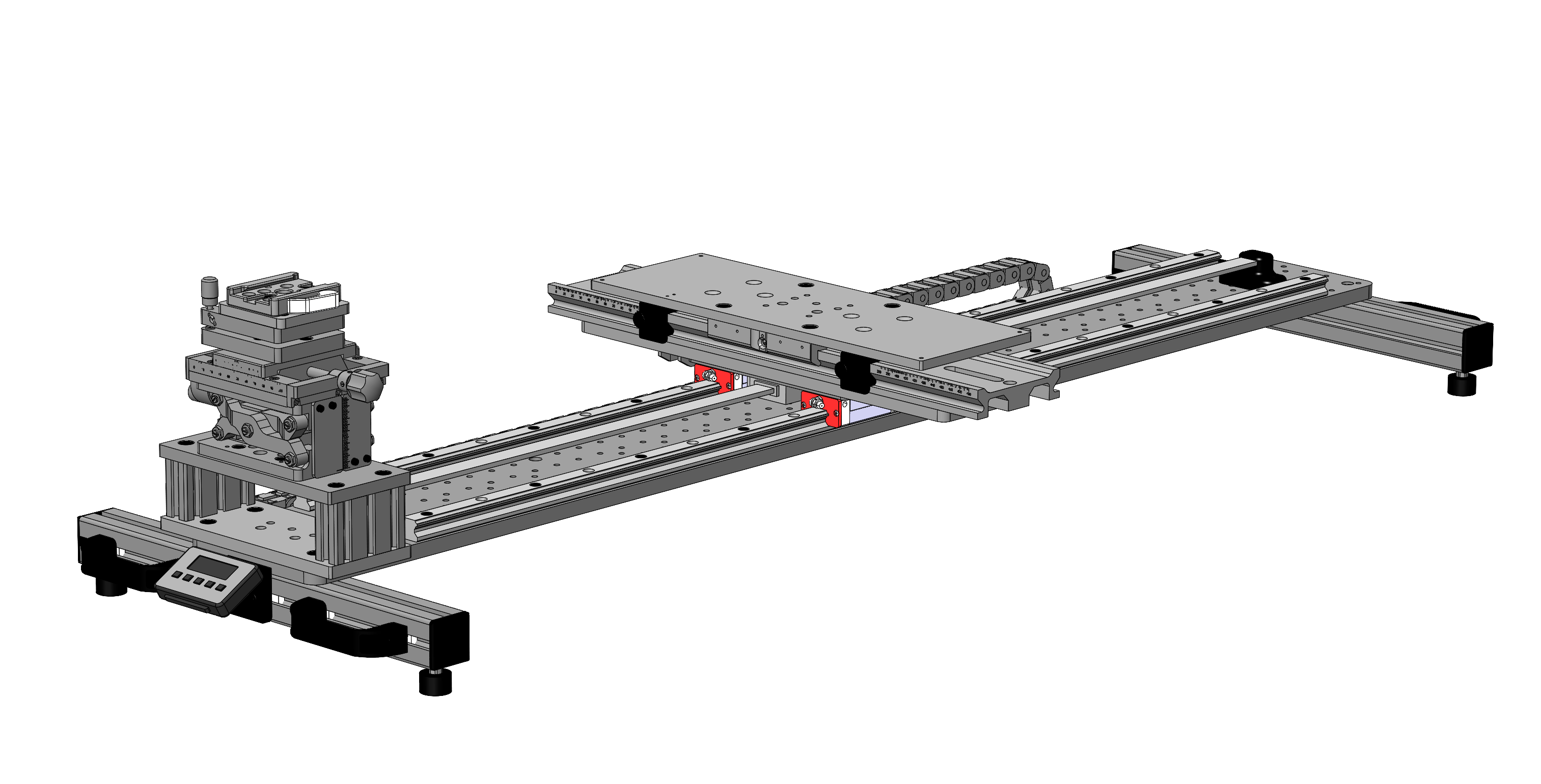

Imatest Benchtop Test Stand
BTS

Imatest Benchtop Test Stand

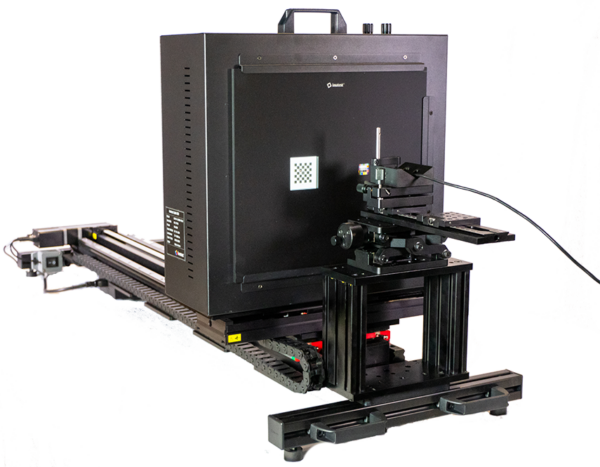

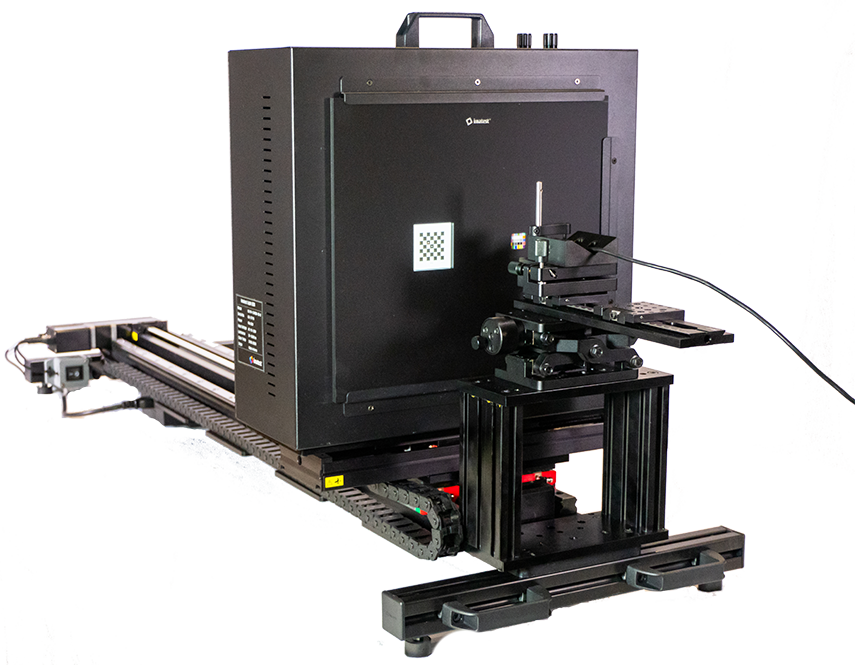

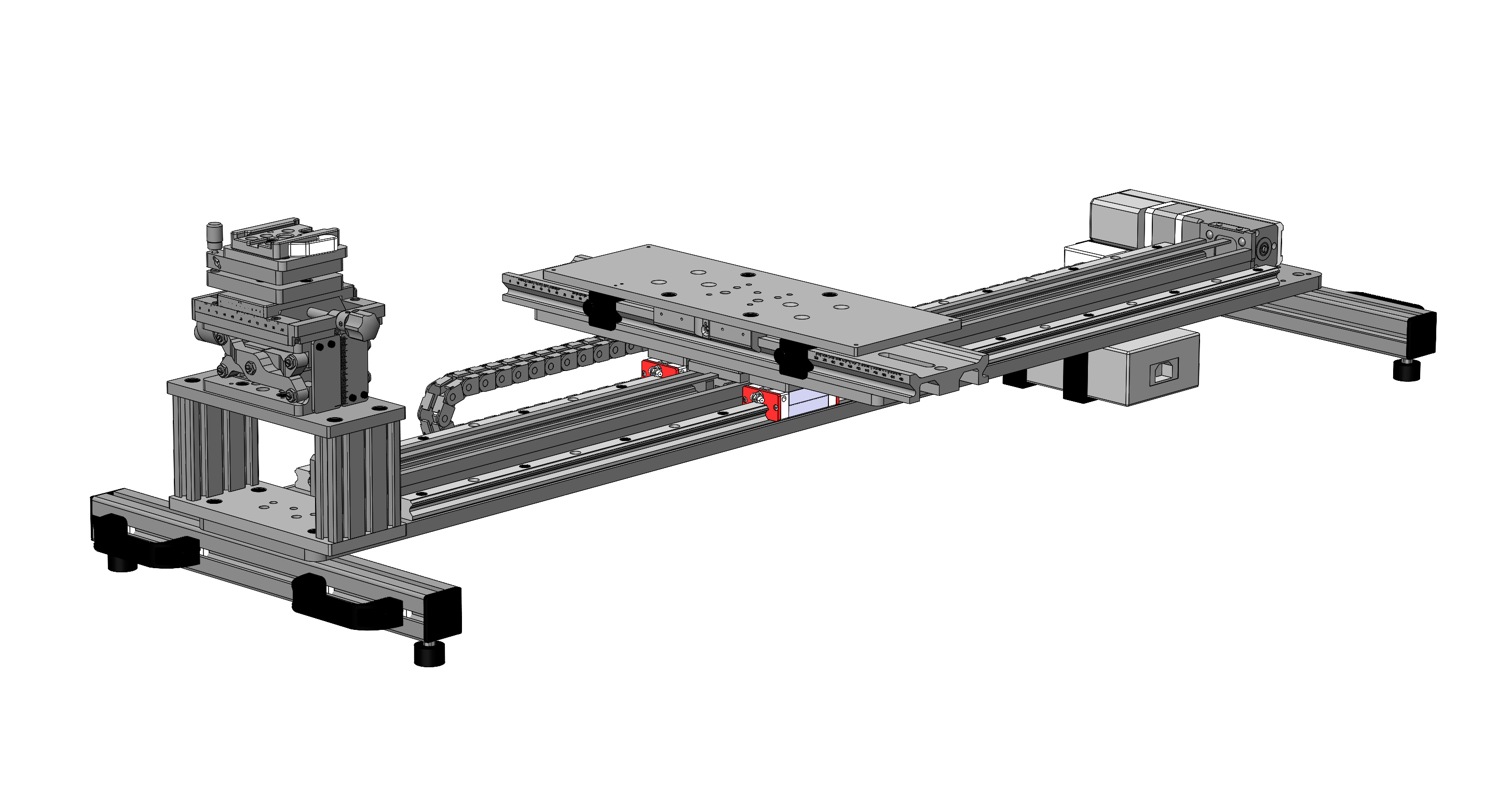

Imatest Benchtop Test Stand with Motorized Z-stage
BTS-MOTZ

Imatest Benchtop Test Stand with Motorized Z-stage

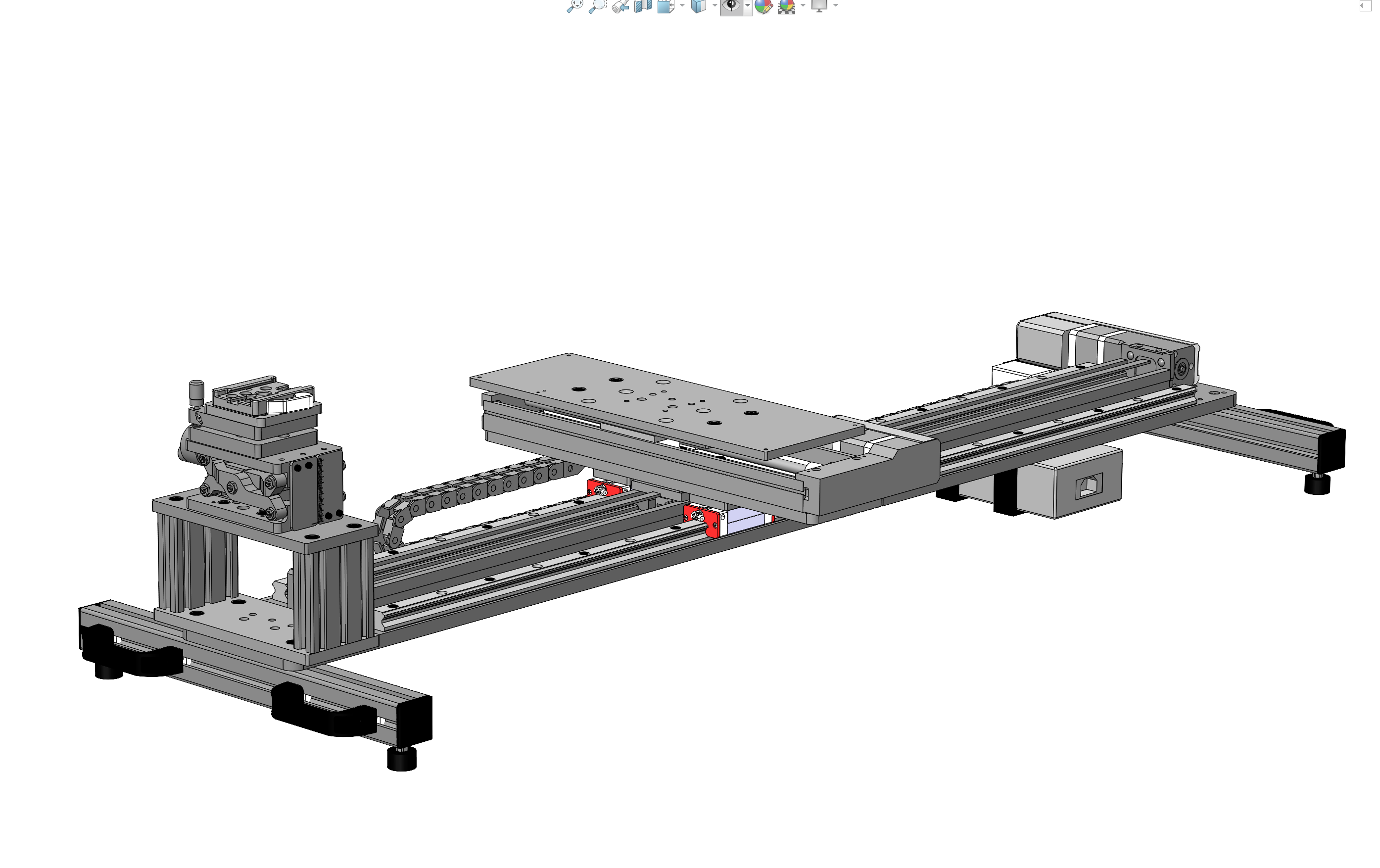

Imatest Benchtop Test Stand with Motorized XZ-stage
BTS-MOTXZ

Imatest Benchtop Test Stand with Motorized XZ-stage

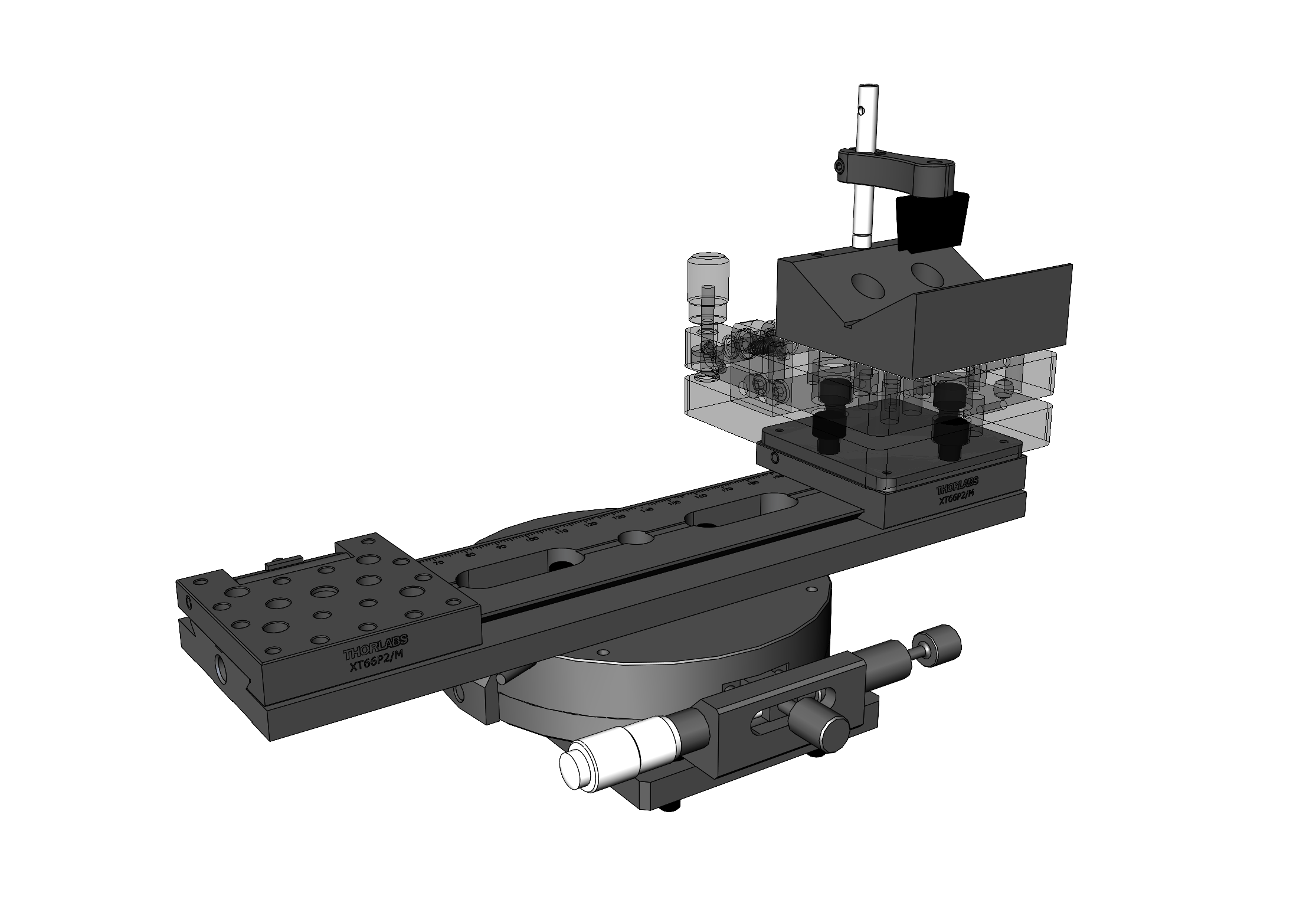

Imatest BTS with optional kit for Endoscope rotational stage (back)
BTS-ER-KIT back iso1

Optional BTS-E-KIT with optional rotation stage

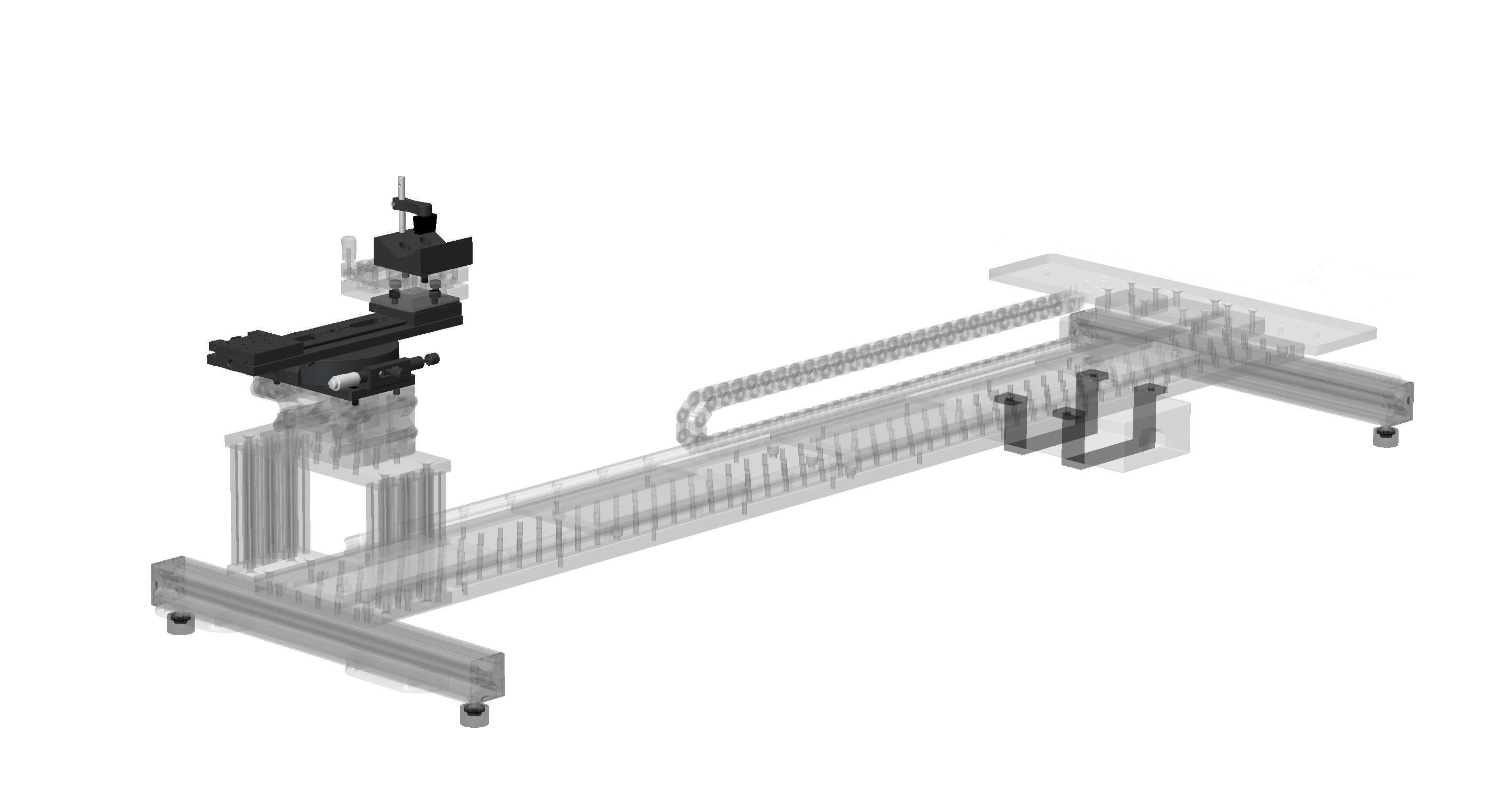

Imatest BTS with optional kit for Endoscope rotational stage (back, Motorized)
BTS-ER-KIT back iso (trans BTS-MOT)

Imatest BTS with optional kit for Endoscope rotational stage (back, Motorized)

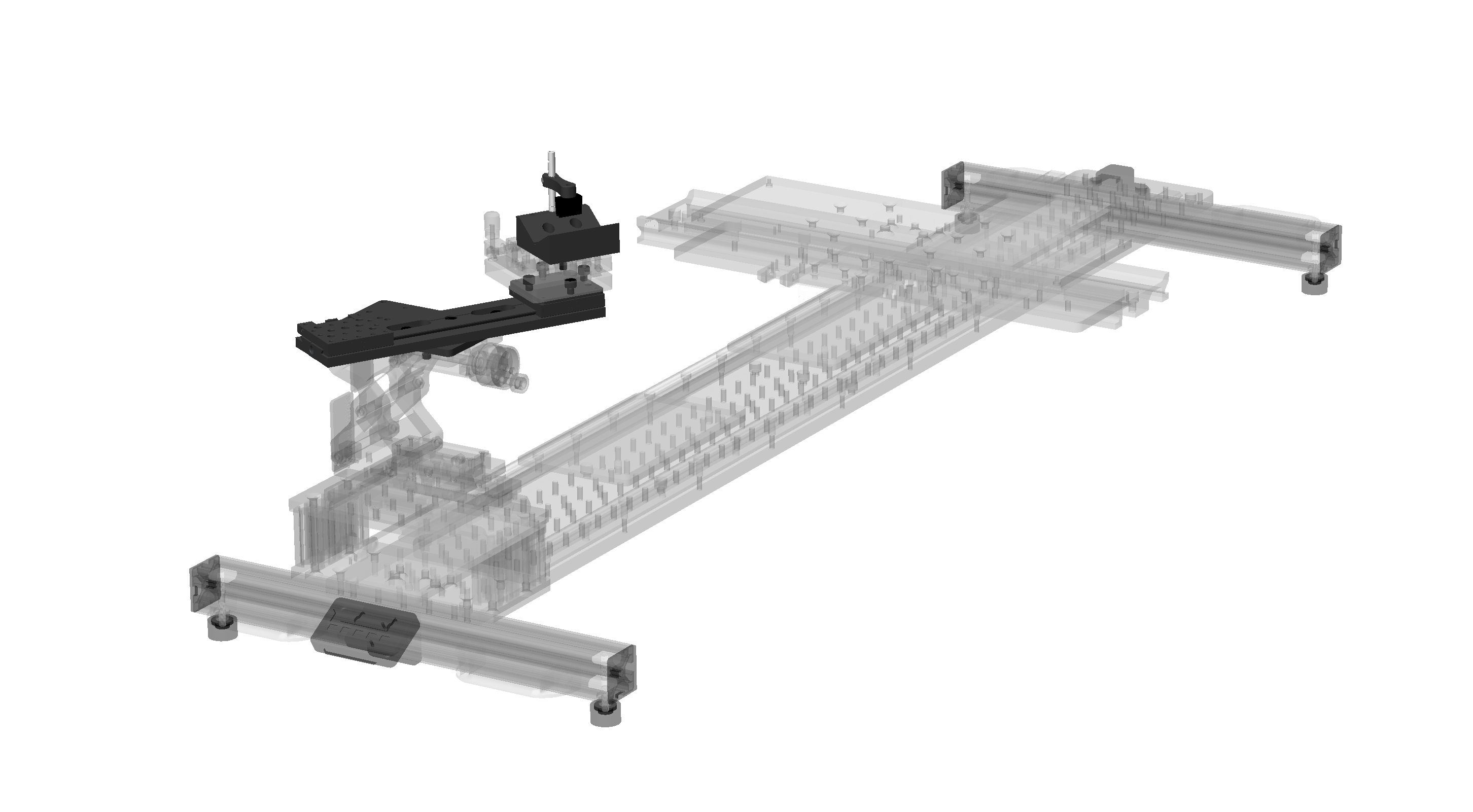

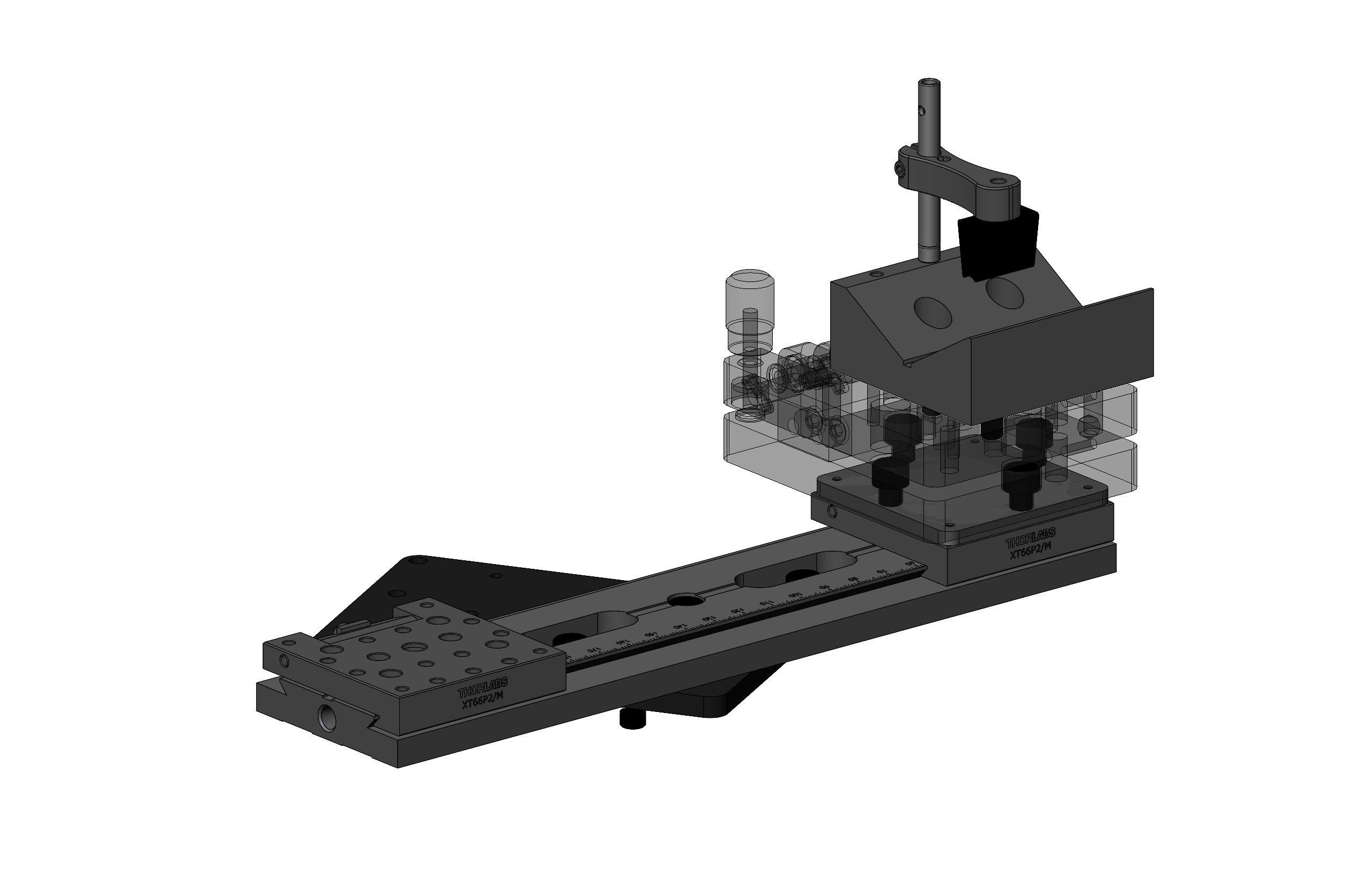

Imatest BTS with optional kit for Endoscope Module
BTS-E-KIT back iso

Optional BTS-E-KIT

Imatest BTS with optional kit for Endoscope Module
BTS-E-KIT Back iso (trans BTS)

Imatest BTS with optional kit for Endoscope Module

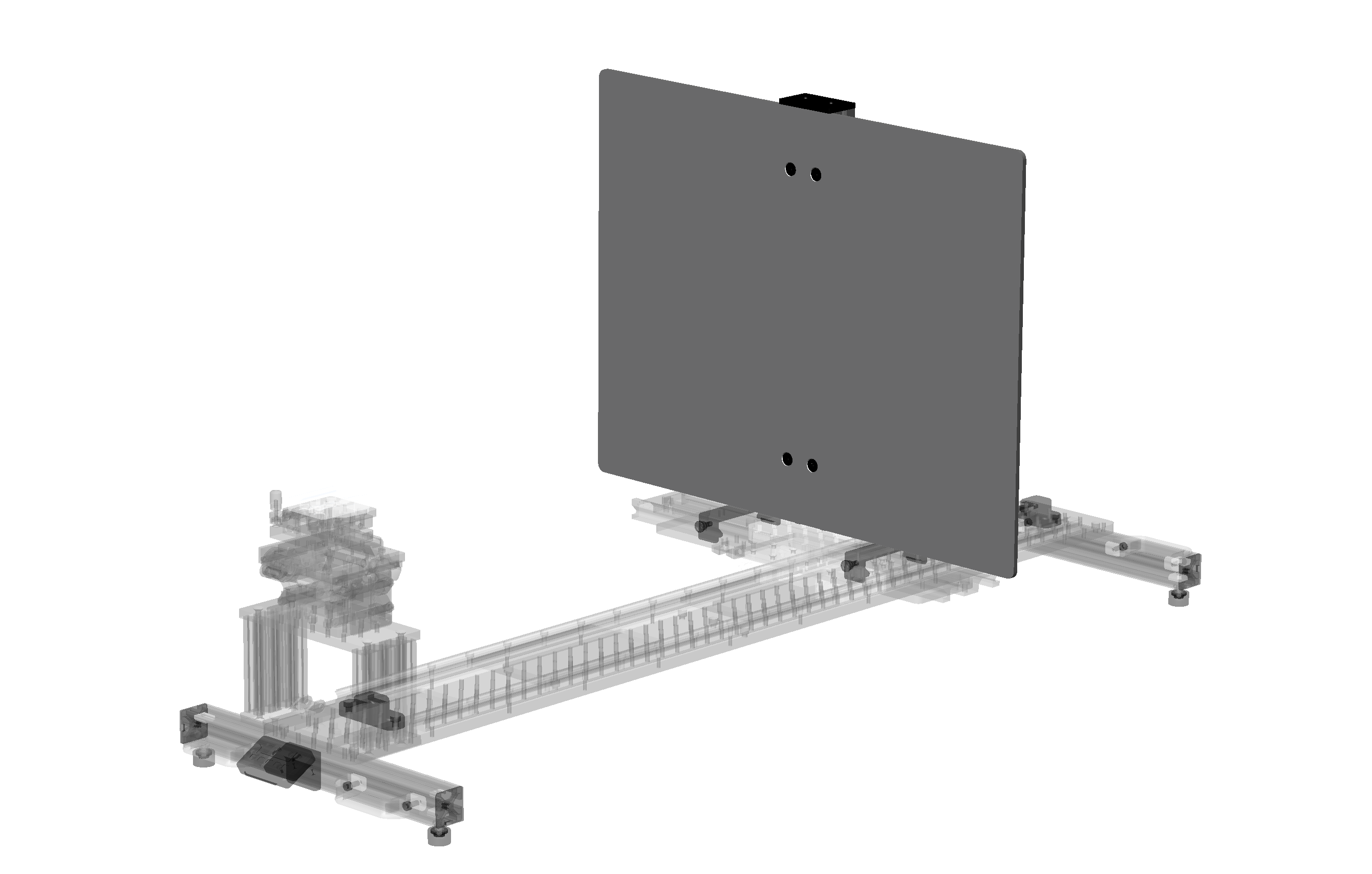

Imatest BTS with optional kit for Reflective Module
BTS-R-KIT Back iso (trans BTS)

Optional BTS-R-KIT shown with transparent BTS

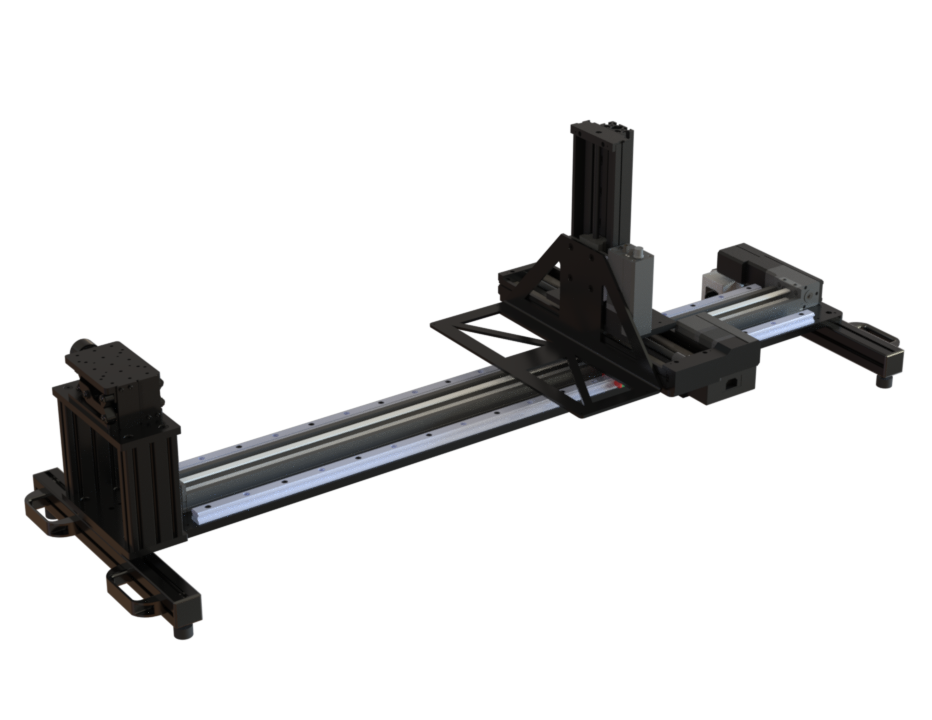

Benchtop Test Stand Motorized Y Stage
BTS-MOTY-ILB

Benchtop Test Stand Motorized Y Stage

$7,000.00 – $29,000.00

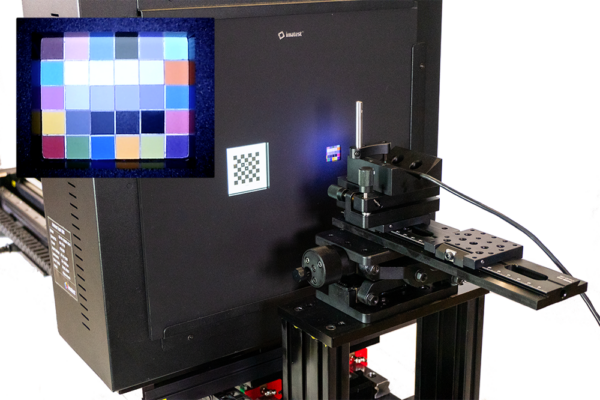

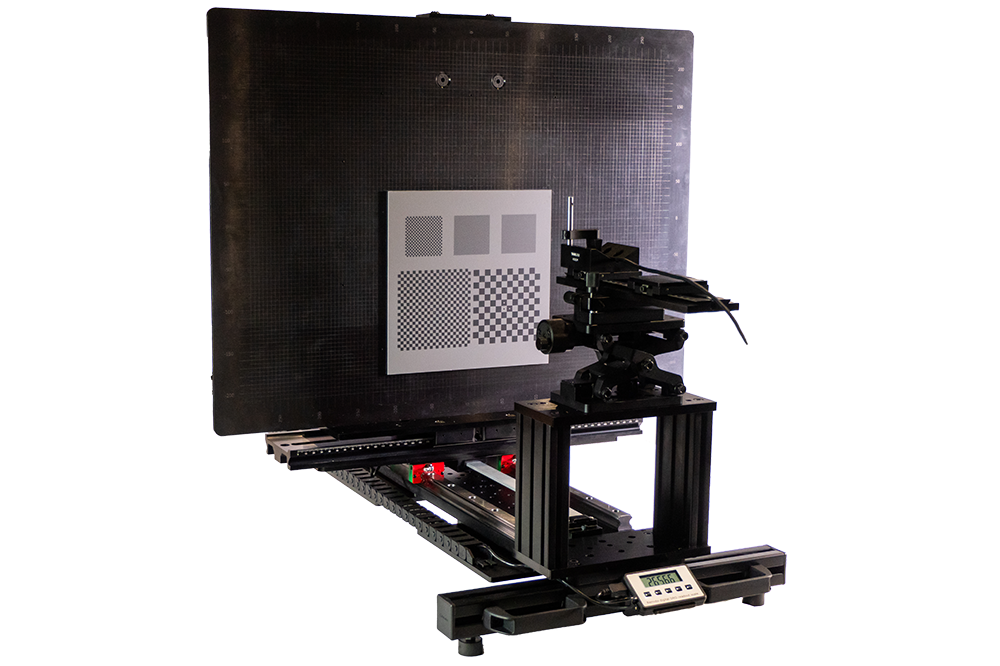

The Imatest Benchtop Test Stand (BTS) is an easy-to-use, modular platform for image quality testing. The fixture is well-suited for testing endoscopes.

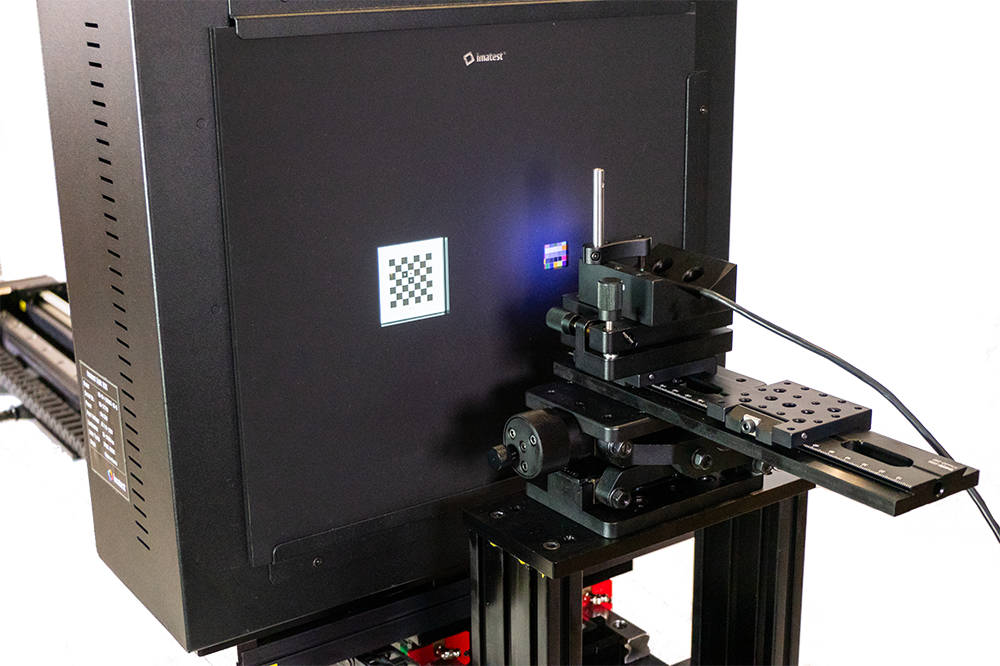

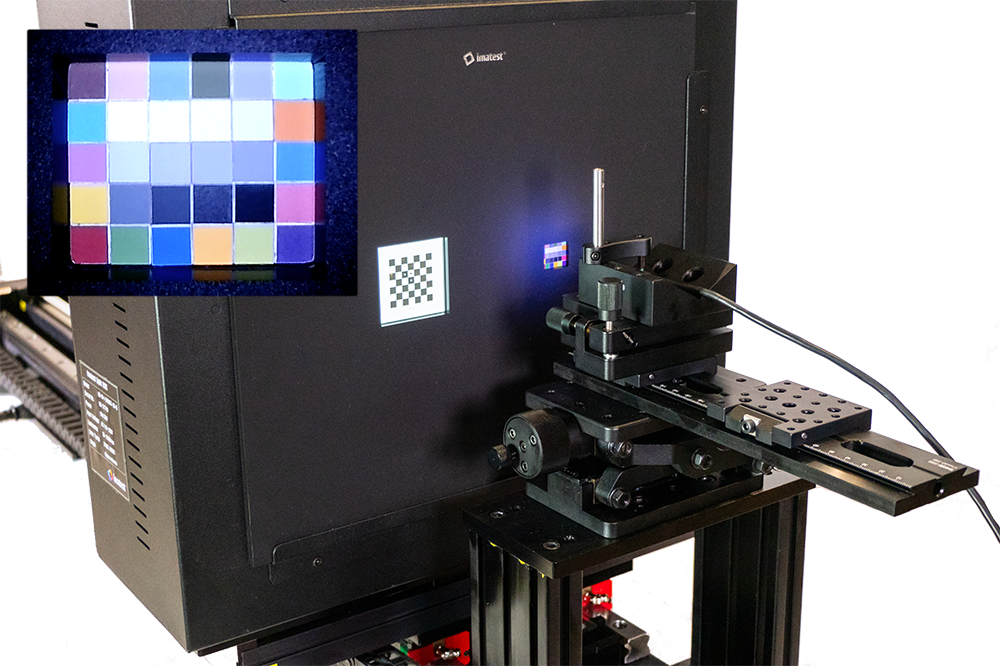

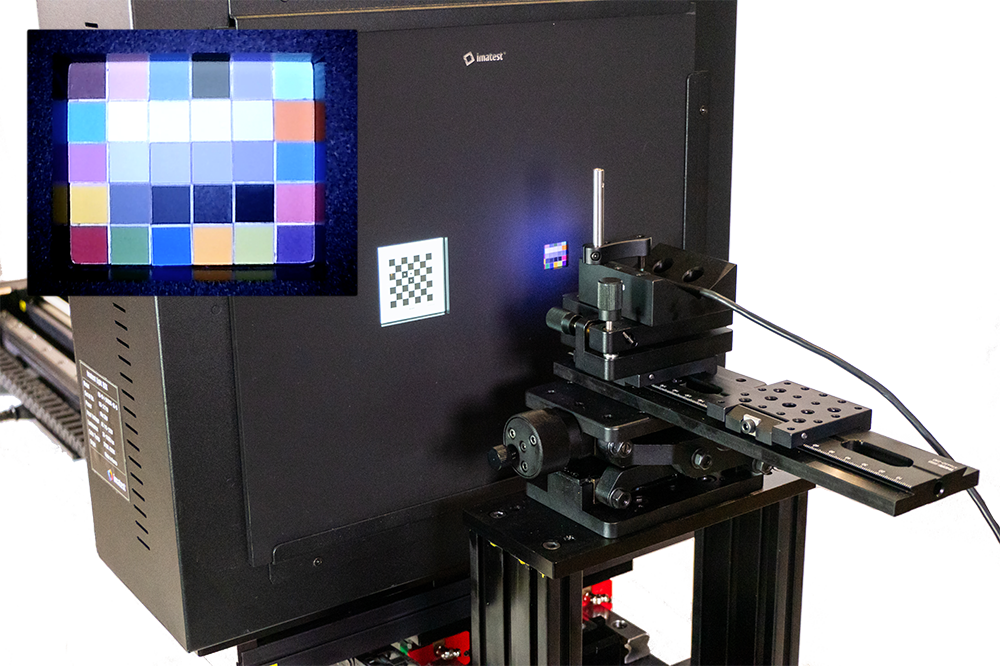

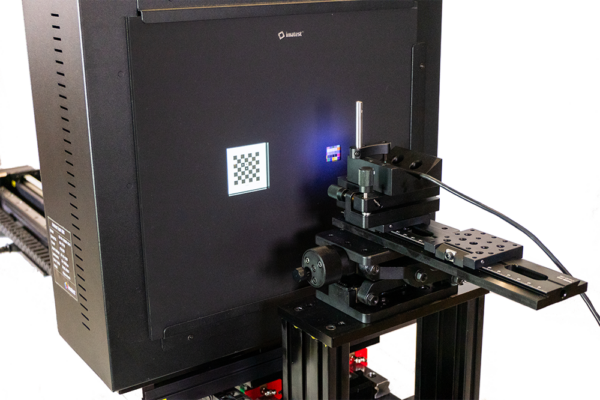

Quickly test endoscopes and medical devices for sharpness, color accuracy, and more with an optional mount designed for endoscopes.

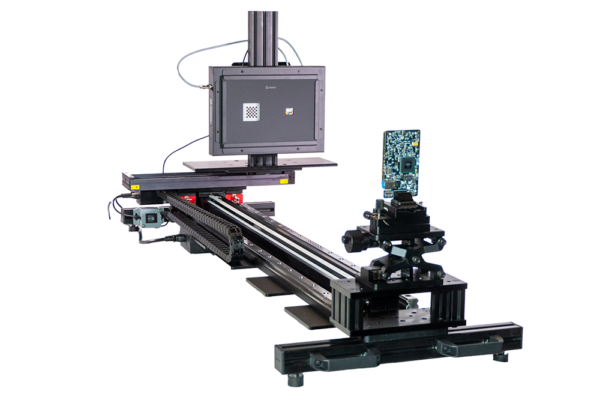

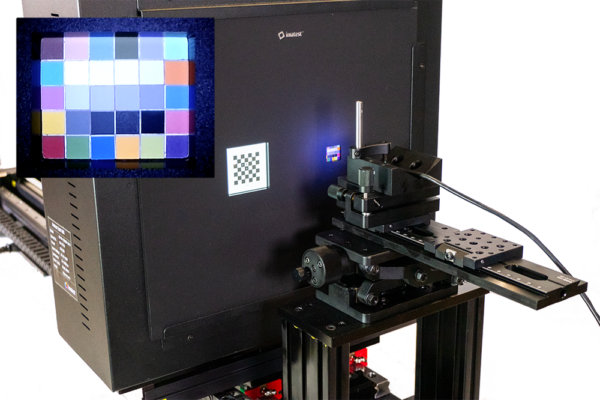

The base module features a rail system for repeatable test positions. Motorized versions of the BTS allow for automated positioning of cameras, test targets, and light sources. Perform transmissive testing with Imatest lightboxes and light panels (sold separately), or perform reflective testing using the optional Magnetic Chart Mounting System.

We also offer a stray light (flare) and long-range testing version.

Optional Add Ons

Add an optional Magnetic Chart Mounting System for reflective targets or the Endoscope Module to your BTS.

  • The Magnetic Chart Mounting System allows you to easily mount reflective targets. Compatible with every BTS configuration.

  • The Endoscope Module add-on kit is designed for rigid endoscope testing. It includes the manual mounting stage, two carriages, tip/tile stage, 30º and 70º angled mounting plate, and V-clamp.

Categories: , , ,

Our product pricing and shipping rates do not include import duties, taxes or fees. The customer / recipient is responsible for these expenses.

Description

BTS Details

  • Includes a recirculating ball bearing carriage which provides high load and lifetime.
  • Includes digital readout encoder for accurate and easy measurement of distances with a resolution of 0.01mm.
  • Compact design easily fits on a standard workbench or table.
  • Two options for Z-stage length:
    • 1000mm with Footprint: 1.37M x 0.53M (54″ x 21” )
    • 445mm with Footprint: 772mm x 500mm (30.39″ x 19.69″)
  • Multiple configurations and kits can meet general and specific testing requirements.
  • Reflective or transmissive testing – from 1mm to 1 meter test distance
  • Endoscope Module – ready to use medical device fixture

Motorization Additions

  • Automate your test setup to complete analysis of multiple image quality factors across multiple charts and test distances.
  • Easily connect using USB 2.0 or serial communication ports and send commands over RS-232.
  • Zaber’s Console software makes it easy to control the speed and position of the target, change the device settings, and write custom scripts.
  • The linear stage system includes an indexed knob which provides manual control options.
  • Control interface: USB Serial Interface, Zaber Console Control Software, Python 3 – Zaber Motion Library, BasicMicro Motion Studio, Basic Micro Libraries (Python, C++), BasicMicro Drivers (LabView, Arduino)

Benchtop Test Stand Info Sheet

Related: Test Stray Light (Flare) or perform long range testing in a confined space using our BTS-Stray Light/Target Projector Module. Learn more.

Specifications

Details

Weight:

Varies based on configuration
  • BTS: 22.7 Kg (50 lbs)  (Standard 1 meter Z-stage)
  • BTS-500mm: 16 Kg (35 lbs)
  • BTS-MOTXZ: 34 Kg (75 lbs)
  • BTS-MOTXYZ: 37k Kg (82 lbs)
  • BTS-500-MOTXZ: 23 Kg (50 lbs)
  • BTS-500-MOTXYZ 26 Kg (57 lbs)
  • BTS-SLTP-MOTZ: 29.5 Kg (65 lbs)
  • BTS-SLTP: 20.4 Kg (45 lbs)
  • BTS-R-KIT: 18.3 Kg (40 lbs)
  • BTS-E-KIT: 1.5 Kg (3.3 lbs)

Dimensions:

Dimensions vary based on configuration
  • Width: 528mm  |  w/BTS-R-Kit: 665mm
  • Length: 1372mm  |  BTS-500mm: 772mm
  • Height w/BTS-R-KIT: 692mm  |  w/Motorized Y-stage: 463mm

Uniform Light Sources for Transmissive Targets:
  • ILP-A     |     ILP-B     |     ILB-B
  • Visible Spectra: 3100K     |     4100K     |     5100K     |     6500K
  • NIR Spectra: 850nm     |     940nm

Reflective Targets:

 Up to 665 x 500mm (SFRreg 2X)

Translational Travel:
  • Motorized: Z-axis: 1045mm or 445mm  |   Y-axis: 150mm   |   X-axis: 300mm
  • Manual:  Z-axis: 1000mm or 450mm      |   Y-axis: 60mm   |   X-axis: 500mm

SLTPM Translational Travel:
  • Motorized: Z-axis: 1045mm | Y-axis: 60mm | X-axis: 50mm
  • Manual: Z-axis: 1000mm | Y-axis: 60mm | X-axis: 50mm

Rotational Travel:

 Yaw: ±2.5º   |  Pitch or Tilt: ±2.5º  | Endoscope:  Yaw: 0º, 30º, 70º

Microstep Size:

 Z-axis: 4.2µm  |  X-axis: 0.50µm

Motorized Accuracy (unidirectional):

 Z-axis: 700µm  |  X-axis: 35µm

Repeatability:

 Z-axis: 20µm  |  X-axis: 2.5µm

Operating Temperature Range:

 0 to 40 °C

Maximum DUT Weight:

 11.34Kg (25lbs)  |  Endoscope Module: 3Kg ( 6.6lbs)

Maximum Speed (Motorized):

 2000mm/s

Electrical: Maximum Current Draw
  •  Z-axis:  1800mA  | X-axis: 1900mA  |  Rotational Axes: 950mA
  •  Input Voltage: 100-240 V AC



Benchtop Test Stand Ecosystem
