Imatest Light Stands

November 9, 2023
April 10, 2024
LS-DUAL-2_small
LS-DUAL
LS-NIR_subassembly
LS-DUAL-1_small
LS-NIR

$5,400.00 – $6,800.00

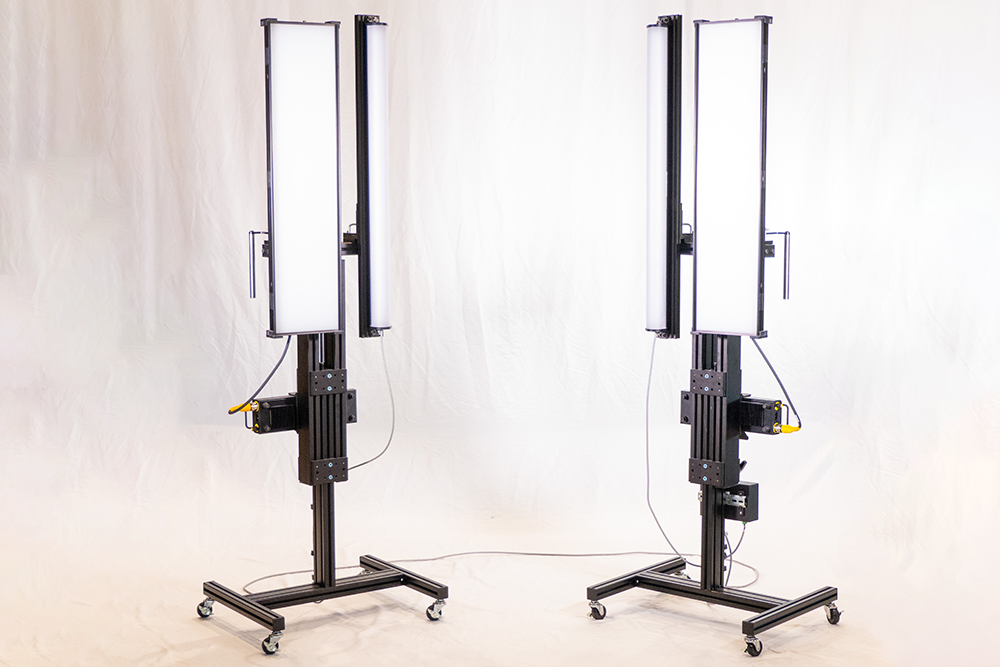

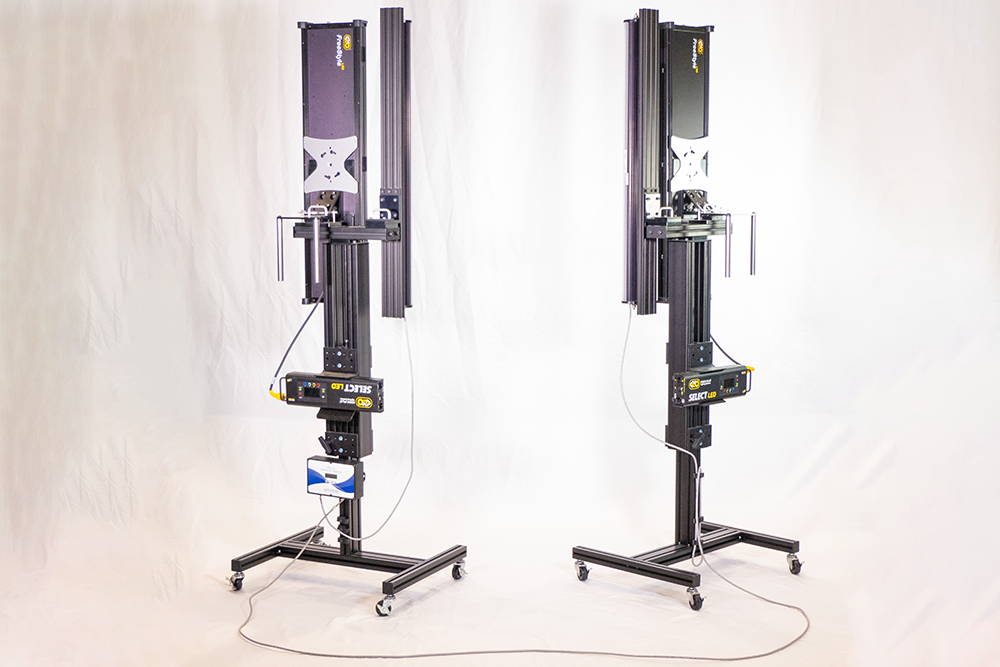

The Imatest Light Stands are freestanding fixtures (set of 2) designed to work with one or both of the following lighting systems: KinoFlo LED Freestyle 31 and/or Metaphase Exolight 2.0 (850nm or 940nm IR). The fixtures allow you to quickly set up repeatable lighting conditions with features that include angle markers, locking casters, and a dampened height adjustment system. (Lights are sold separately.)

Information Sheet

Category:

Description

 Imatest Light Stand Features

  • Lockable casters allow for freely positioning the light stands
  • Additional angle adjustment of each light bank with built-in protractors
  • Easy and dampened height adjustment
  • Works with KinoFlo Freestlye 31 lighting system (Visible)
  • Works with Metaphase 850nm or 940nm IR Exolights 2.0 (NIR)



Specifications Details
Weight (Pair): Visible: 29.5 Kg (65 lbs) | NIR: 27.25 Kg (60 lbs) | Dual: 31.75 Kg (70 lbs)
Fixture Dimensions (minimum height): 620 x 509 x 1562 mm (24.41” x 20” x 61.5”)
Fixture Dimensions (maximum height): 620 x 509 x 1971 mm (24.41” x 20” x 77.6”)
Crate dimensions 1.07m x 0.74m x 0.89m (42” x 29” x 35”
Total shipping weight Visible: 61.25 Kg (135 lbs) | NIR: 59 Kg (130 lbs) | Dual: 63.5 Kg (140 lbs)
Travel distance of light:

A. Height adjustment: 400mm (15.75”) B. Distance from chart: Free positioning C. Incident angle: 0º – 90º
