Imatest Sensor Plate

February 24, 2022
November 13, 2024
SpectralSensorPlateWide
LightControlWindow-1024x771
grid_esfr-iso-12233_enhanced_2

$1,700.00

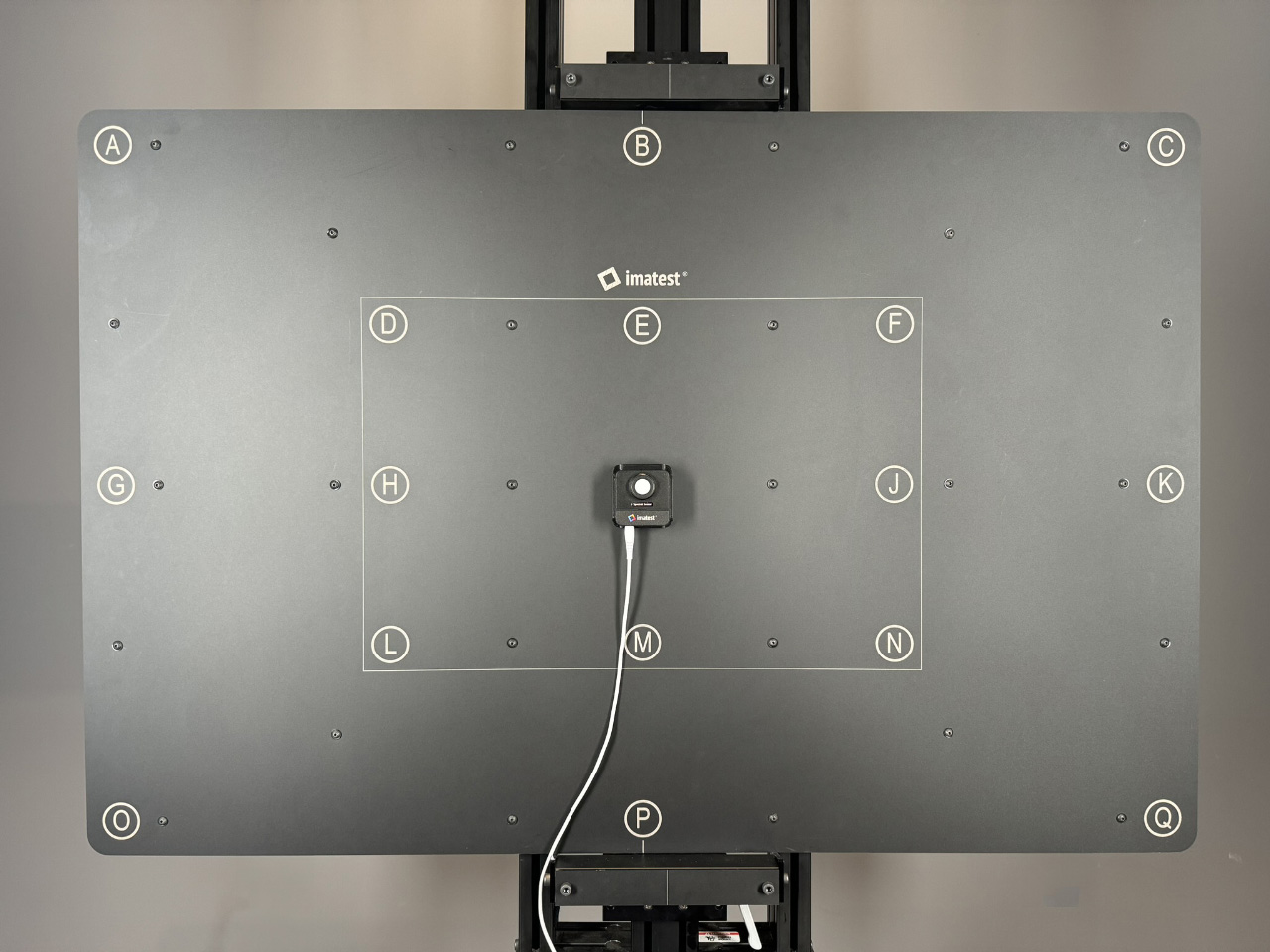

Imatest’s Spectral Sensor Plate for Measuring Reflective Uniformity

The Imatest Spectral Illuminance Color Sensor is an ideal companion for image quality testing and camera calibration. The Spectral Sensor Plate allows you to quickly set and verify your lighting color and light level using embedded magnets on a 3×3 grid providing accurate, repeatable measurements. Measure uniformity across the surface of size 2x or 4x reflective test charts using a single Spectral Illuminance Color Sensor (sold separately).

Download Information Sheet

Add the Imatest Spectral Illuminance Color Sensor to your order

  • Quantity *

    Add one or more Imatest Spectral Illuminance Color Sensors to your Sensor Plate order. ($385 each)

SKU: ISSP Categories: , ,

Our product pricing and shipping rates do not include import duties, taxes or fees. The customer / recipient is responsible for these expenses.

Description

  • Embedded magnets for quick, repeatable positioning of Imatest Spectral Illuminance Color Sensors and Low Light Sensor
  • Measure uniformity across the surface of your test chart with a single Sensor
  • Includes a 3×3 grid for both size 2x and 4x reflective test charts
  • Measure lighting intensity and color temperature

 Specifications

 Details

 Weight

 11Kg (24lbs)

 Dimensions

 1277mm x 851mm x 14mm

 Supported Chart Sizes

 eSFR ISO 2x, eSFR ISO 4x

 Shipping Weight

 23Kg (51lbs)

 Shipping Dimensions

 1111.25mm x 1409.7mm x 114.3mm



Imatest Light Sensor Comparison

  Low Light Illuminance Sensor Spectral Illuminance Color Sensor
Color Sensing ❌ ✅
Illuminance Measurement ✅ ✅
Lowest Illuminance readout 0.5 lux 5 lux
External Readout Device ✅ ❌
Windows Application (Single Device) ✅ ✅
Cost $350 $385
