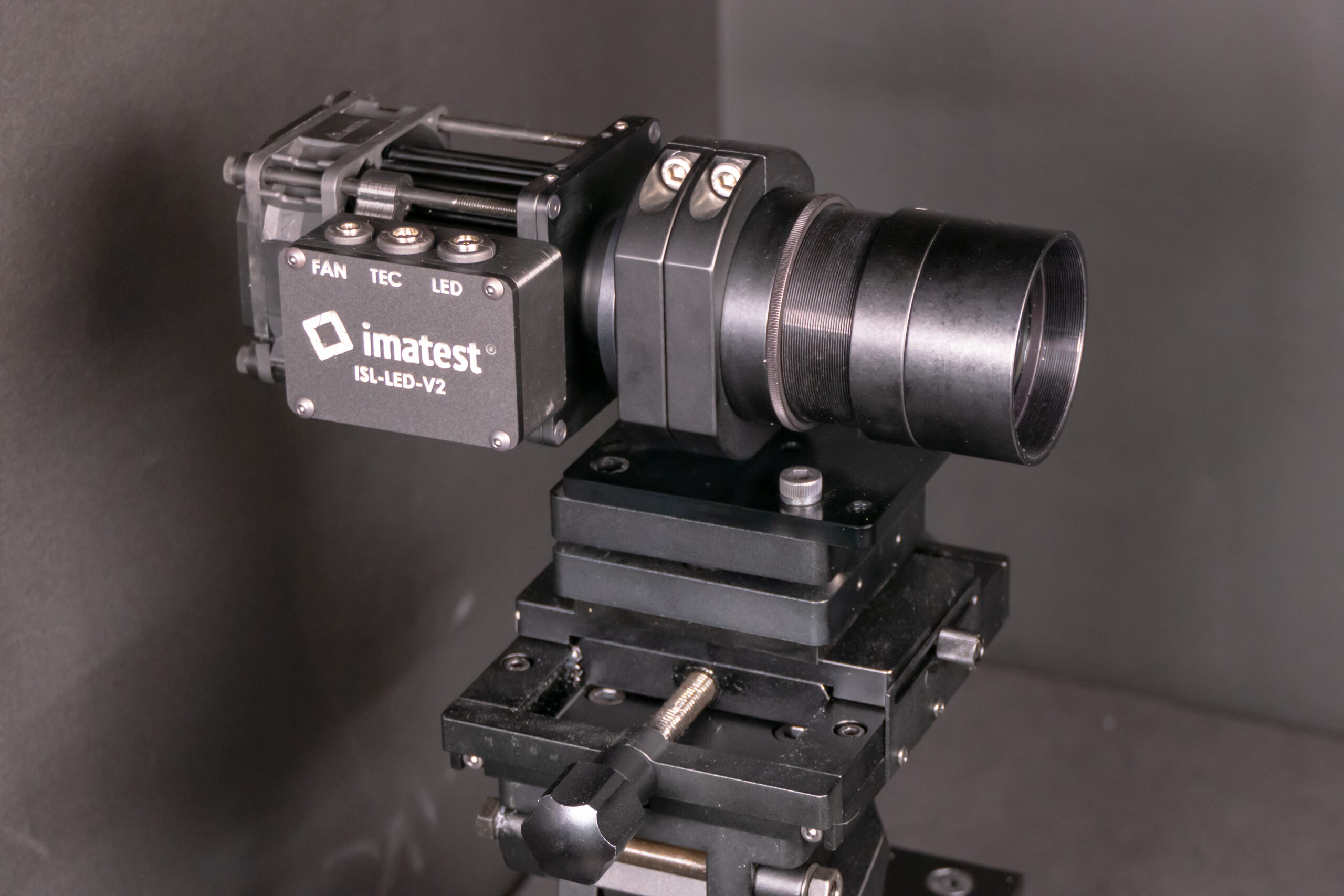

Collimated light source for characterizing stray light (flare)

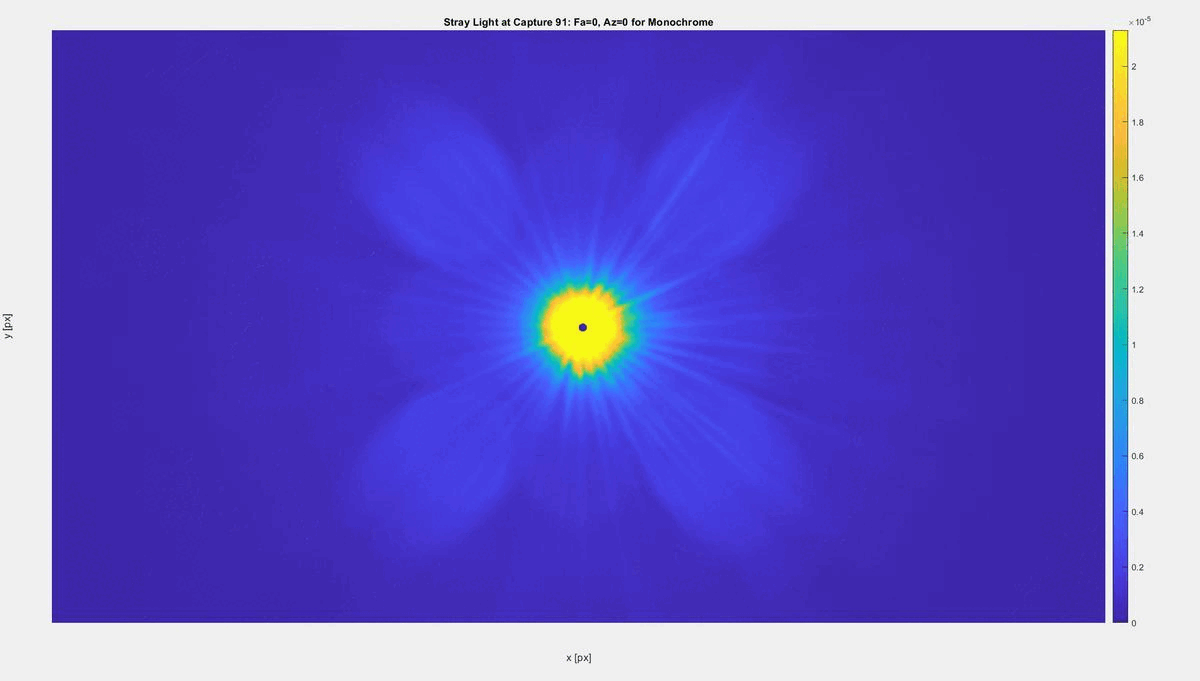

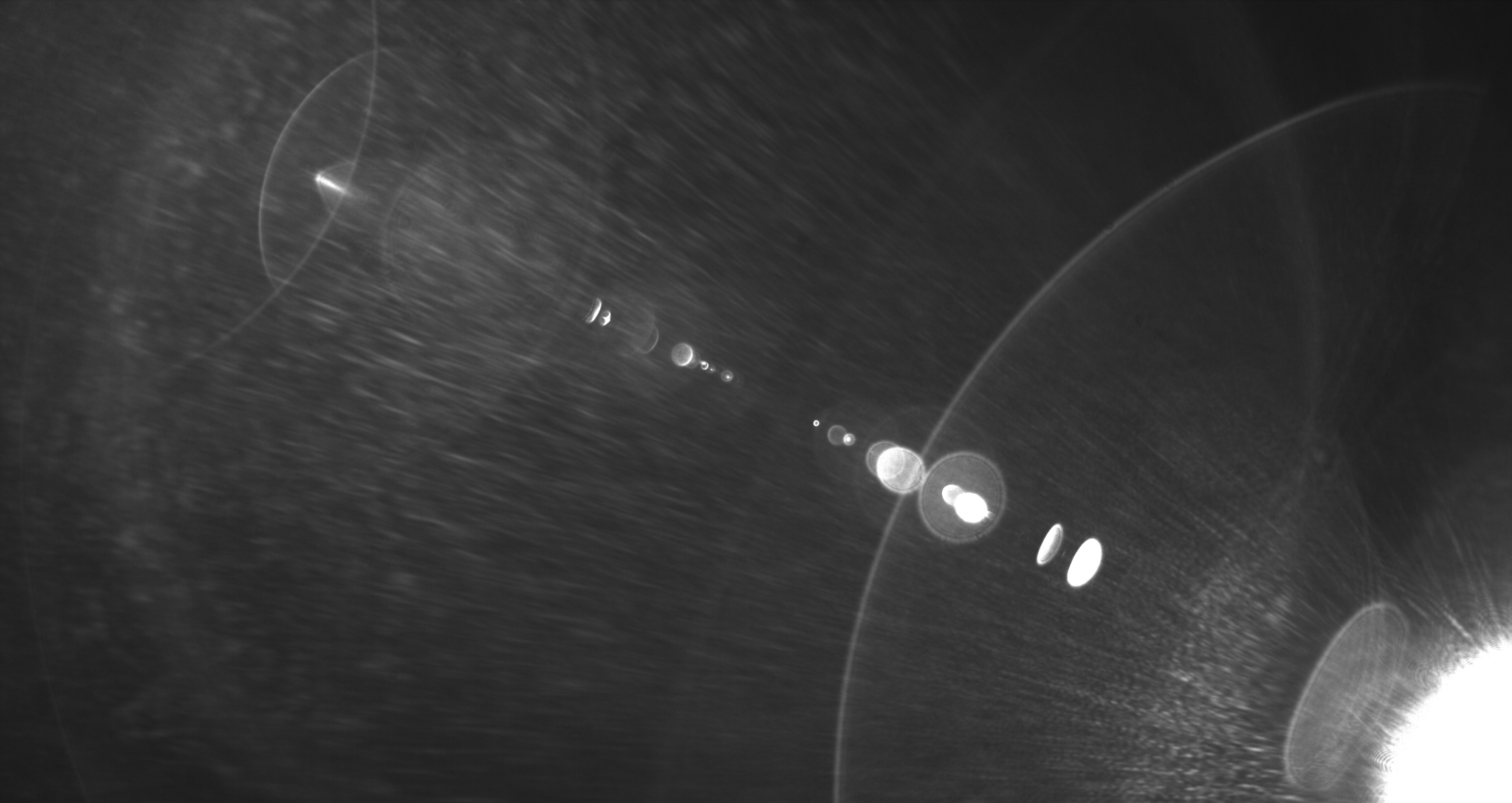

The Imatest Stray Light LED Source (V2) is specifically designed for characterization and testing of stray light (flare) in cameras. It projects an image of a small point-like source as a uniform, collimated beam of light. When imaged by a camera, the saturated image of the source produces stray light that can be visually inspected or analyzed using Imatest stray light analysis software.
This hardware is compatible with the Imatest Benchtop Test Stand.
Description
Imatest Stray Light LED Source Features
- Small source angular size for high resolution stray light measurements and detailed characterization of stray light, including diffraction spikes, ghosting, and veiling glare

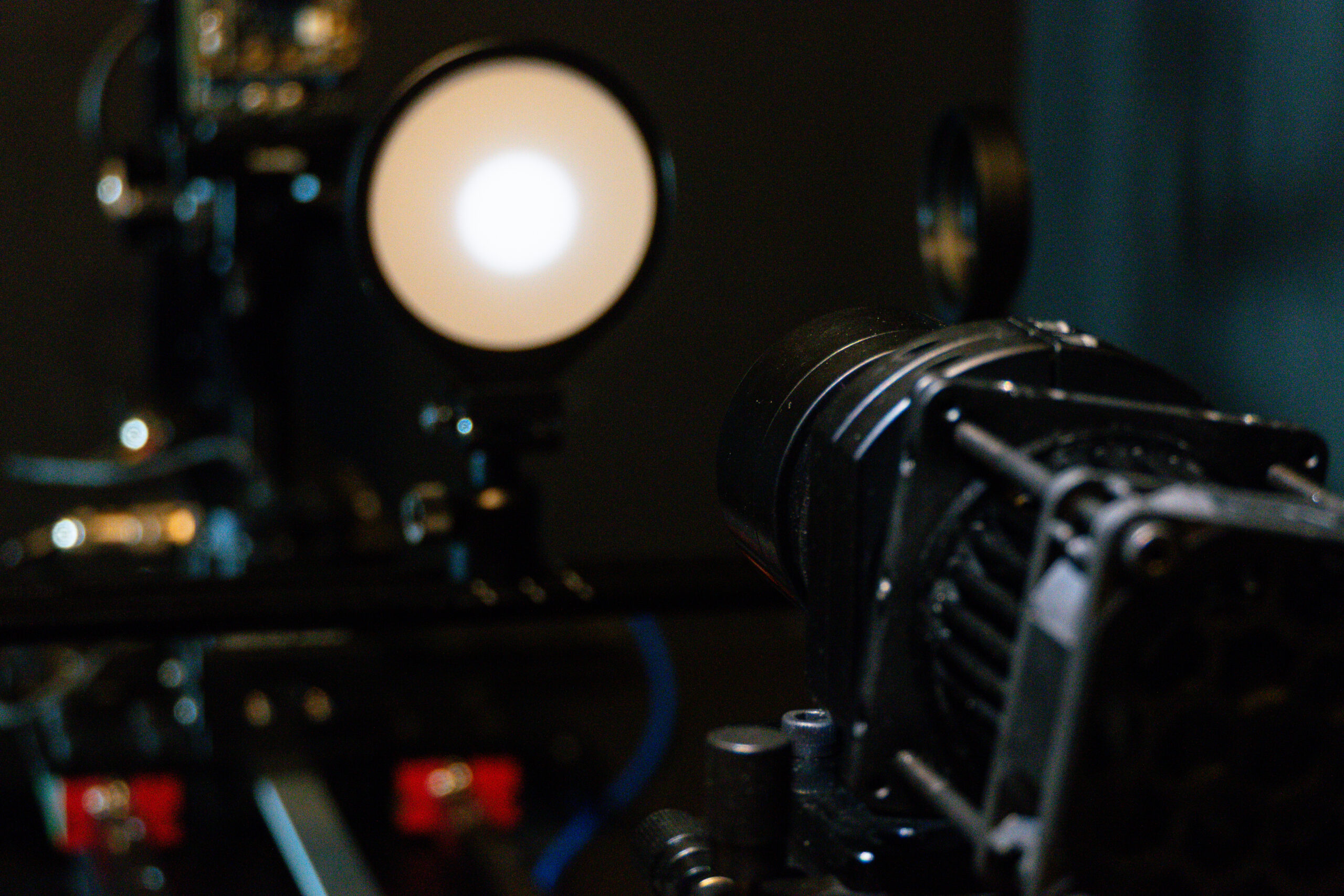

- Spatially uniform collimated beam benefits repeatability of measurements

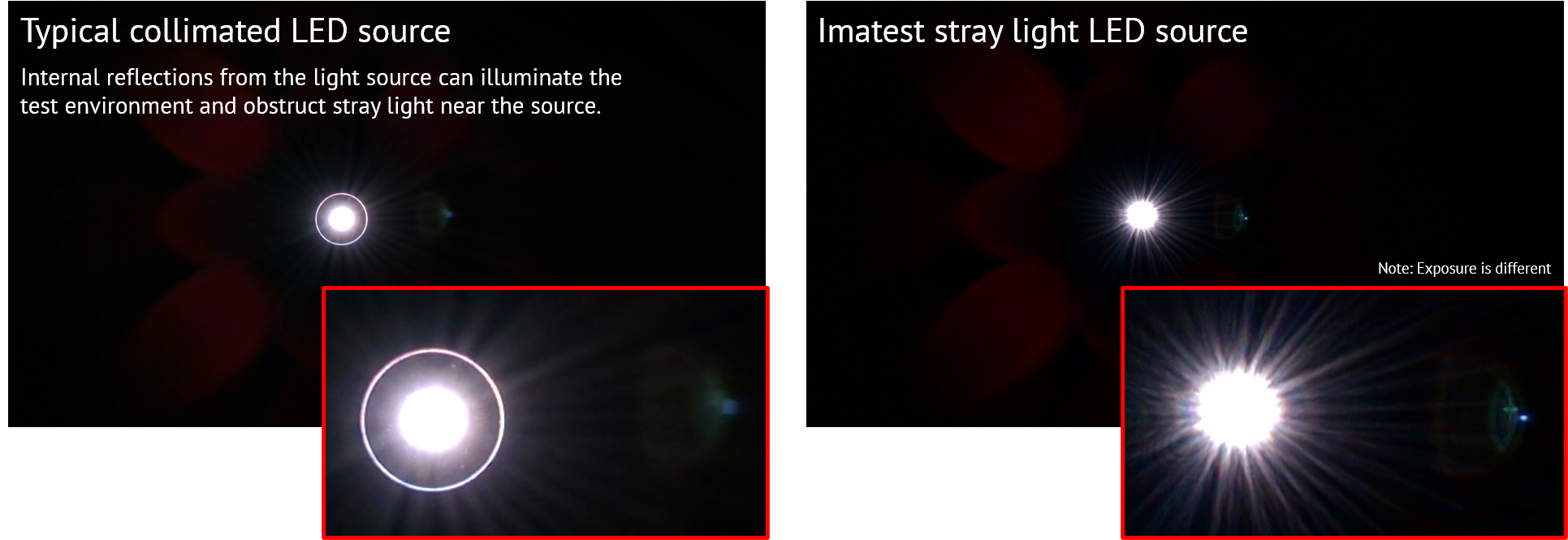

- Designed for low internal reflections (e.g., no halo) by intentionally underfilling the collimating lens with light
- Adjustable intensity/brightness
- Adjustable lens focus, allowing for both collimated or diverging beams
- Includes programmable power supply for powering LED; TEC and fan powered by AC adapters
Notable Improvements Over Previous Generation
We’ve redesigned out Stray Light LED Source to bring significant improvements in technical performance and capability:

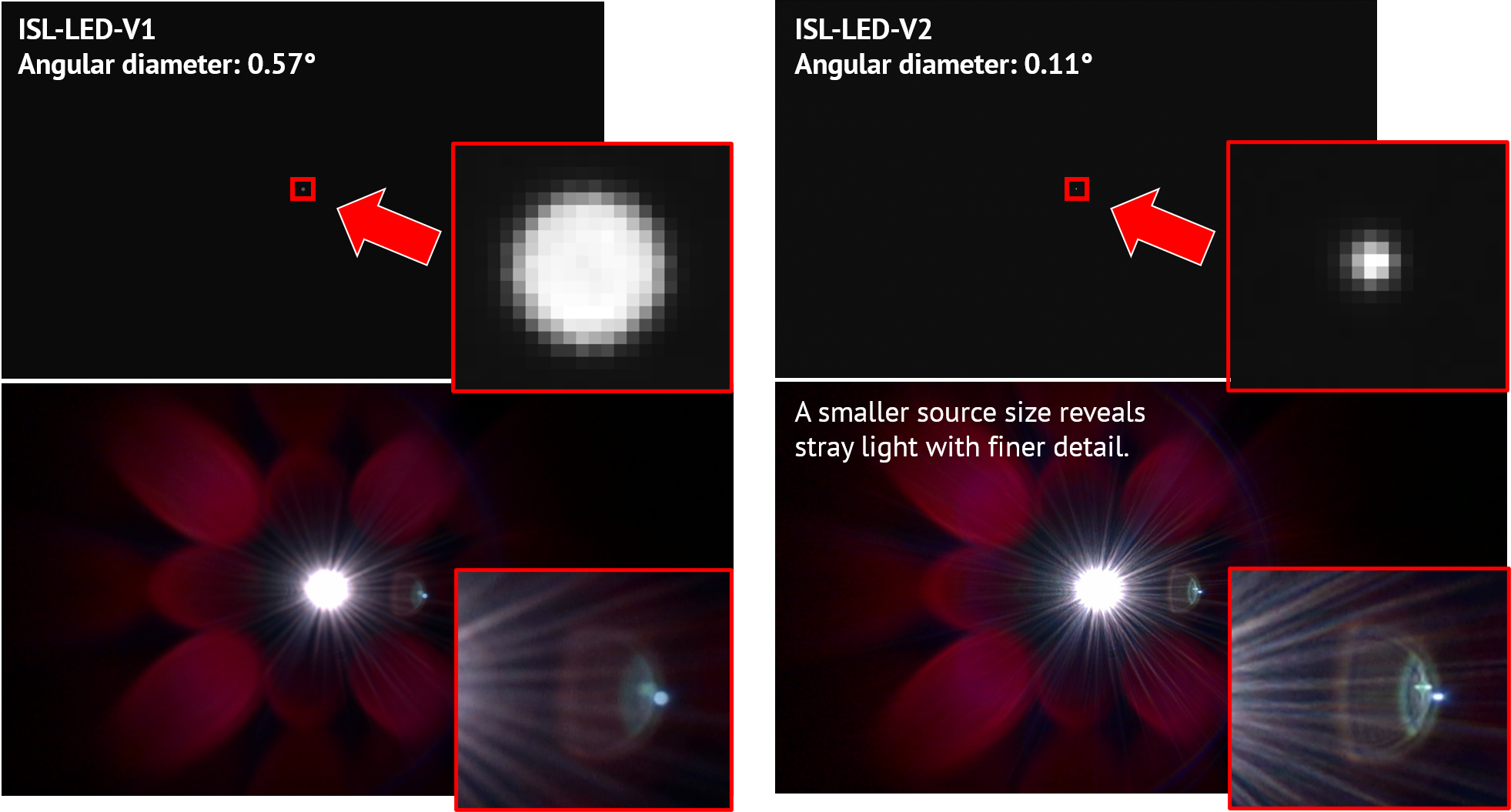

- Smaller source size reveals higher frequency stray light artifacts, providing higher resolution images of stray light in the camera

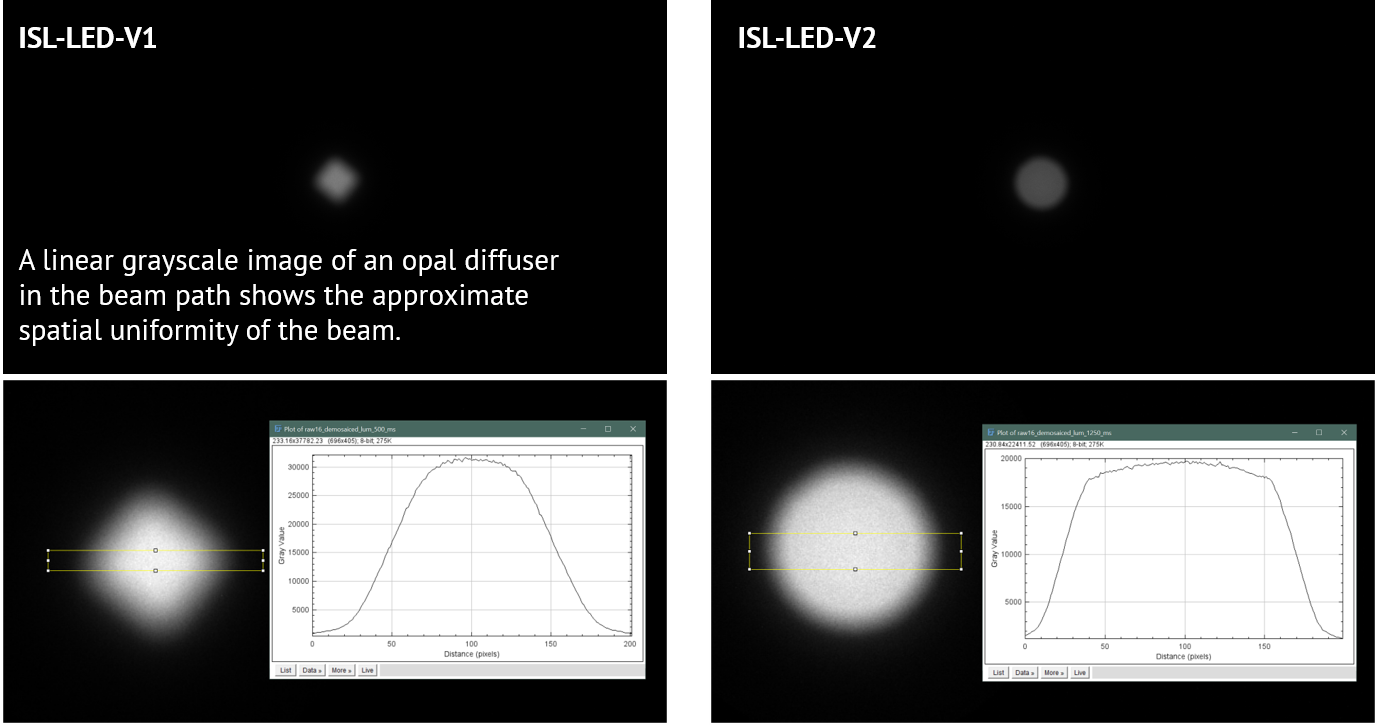

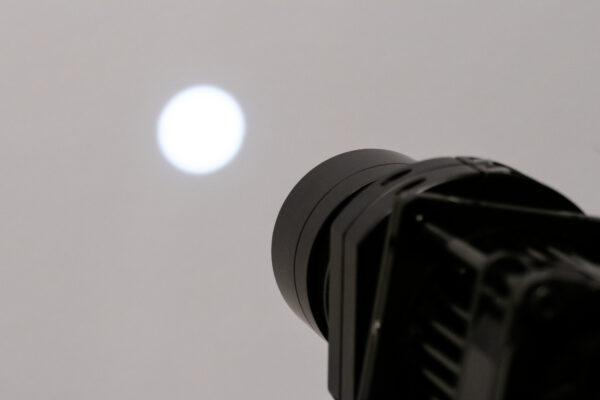

- Improved collimation and significantly improved spatial uniformity of the output beam, providing better test repeatability and control
- Introduced brighter white LED and new options for NIR LEDs (850nm and 940nm)
Mounting Info
The Imatest Stray Light LED Source offers three versatile mounting options to suit different setups. Click the variation link to see the mounting plate drawing.
- BTS: Includes a base plate designed for direct attachment to the Benchtop Test Stand.
- MTS: Features a base plate for secure mounting to the Lightbox Shelf of the Modular Test Stand.
- Tripod: Equipped with a 1/4-inch connecting plate and a 1/4-20 tapped hole, compatible with most standard tripods.
DP711 Programmable Power Supply Data Sheet
| Specifications | Details |
| Angular Diameter | The projected point image has an angular diameter of 0.11° |
| Beam Diameter | The uniform area of the beam has a diameter of 20-25 mm within 1 meter when collimated, with the ability to achieve larger beam diameter by adjusting the lens focus to output a diverging beam. At max divergence, the uniform area has a diameter of 50 mm at 1 meter away. |
| Beam Divergence | Adjustable collimation/focus with theoretical minimum half divergence angle of 0.055° |

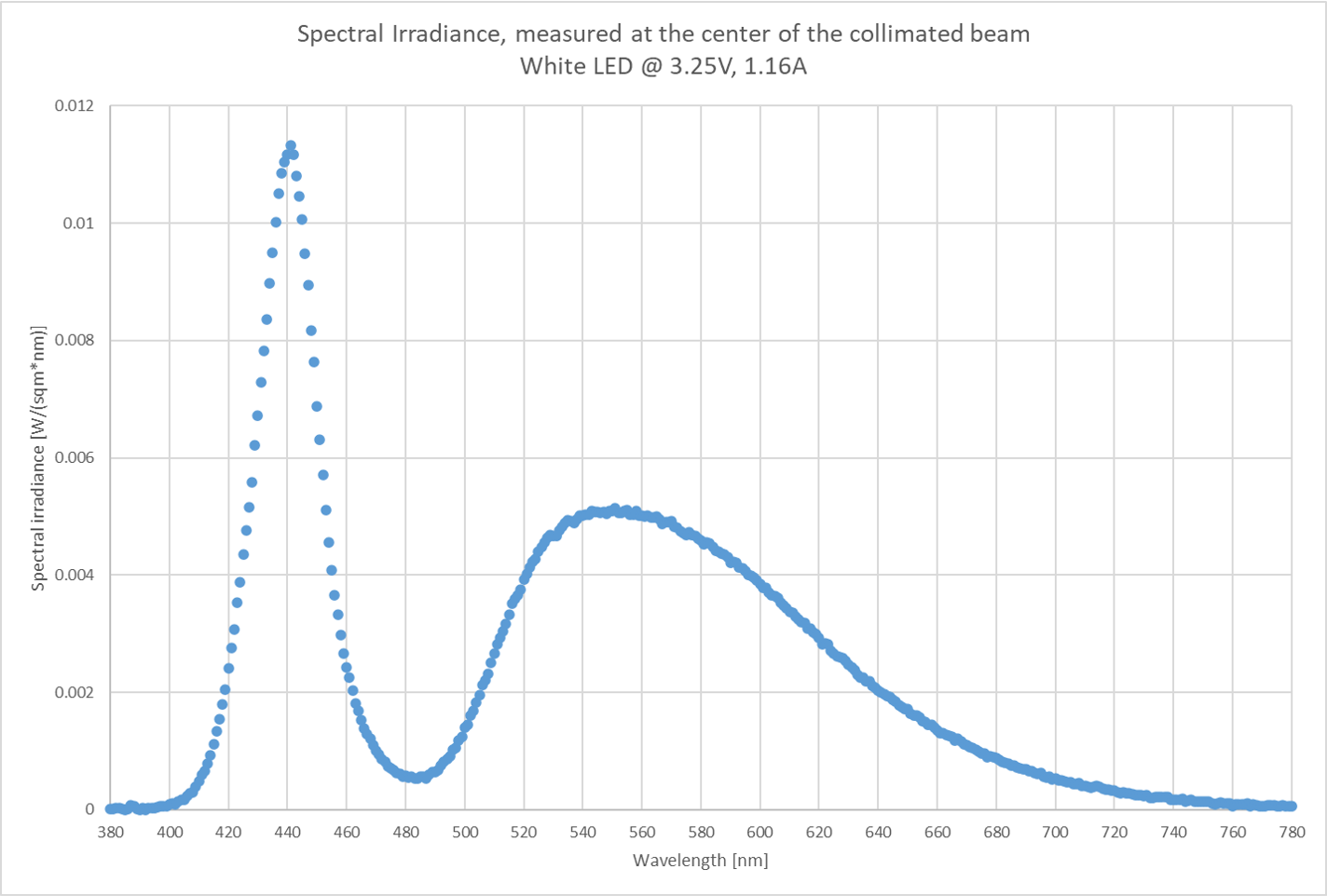

| Beam Intensity & Spectrum |

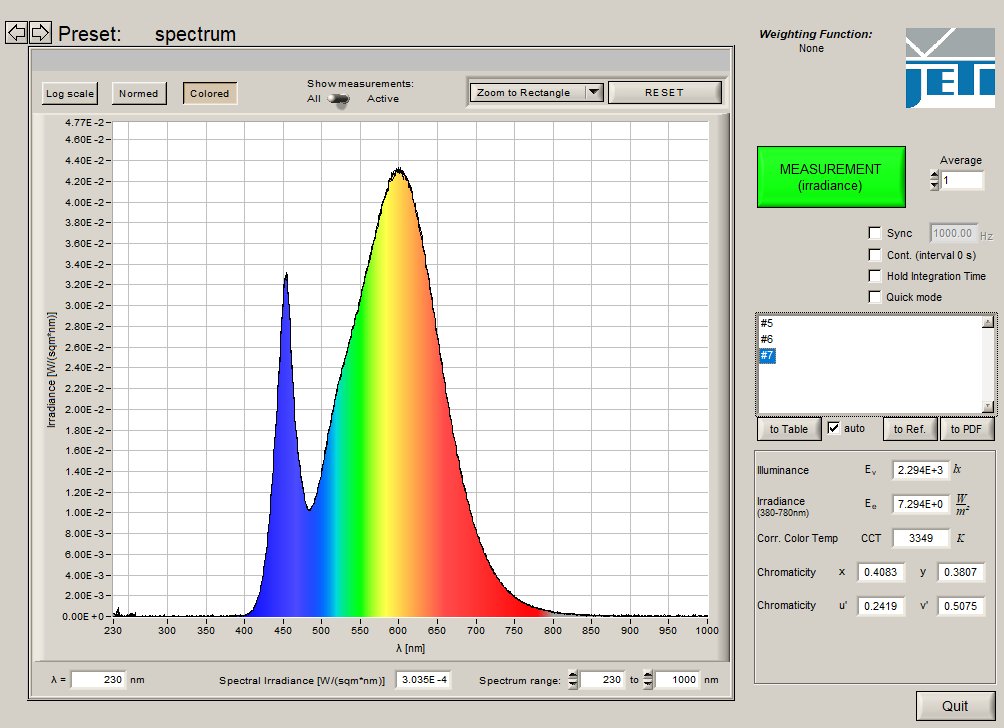

White LED, 5700K:

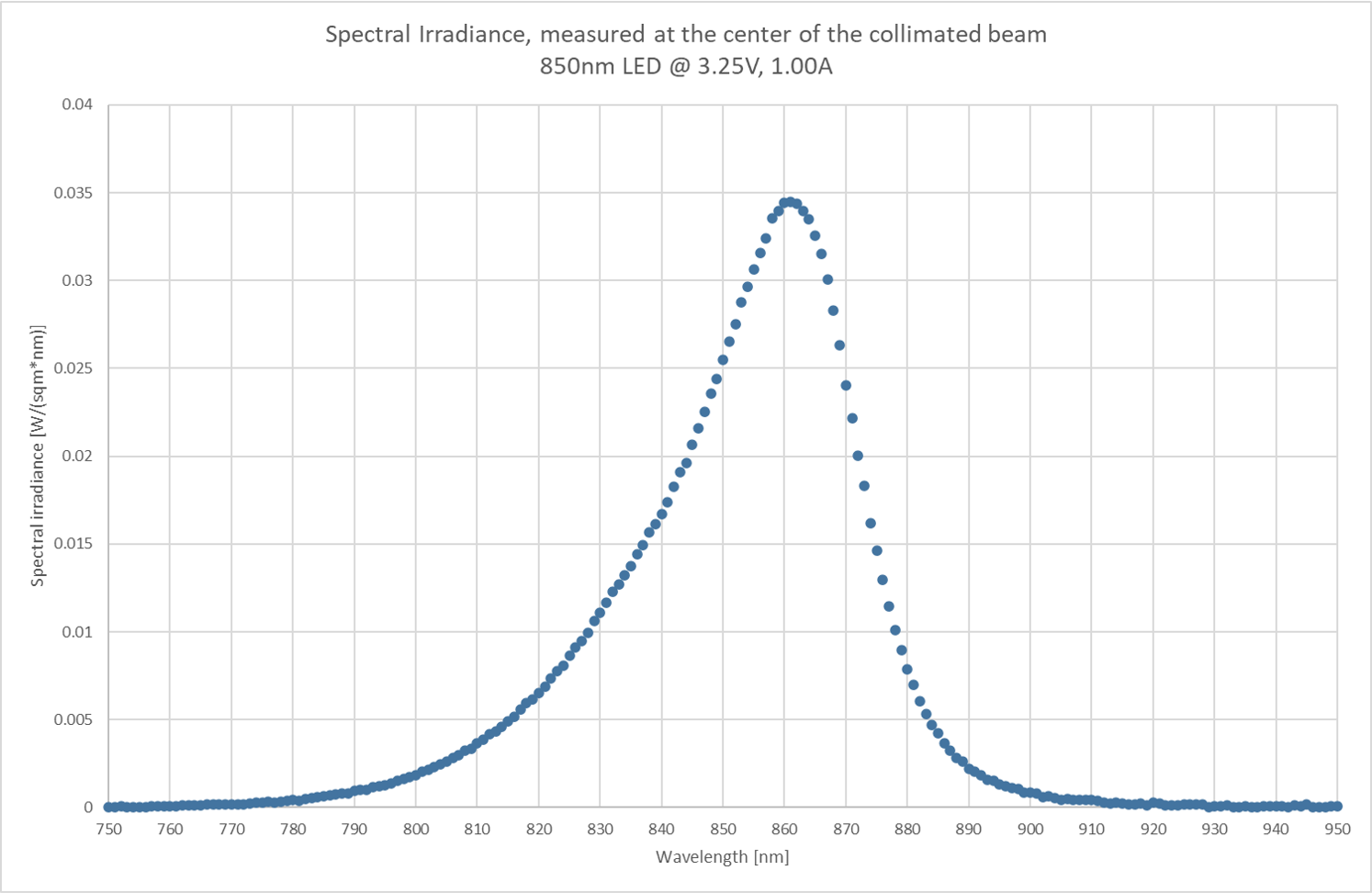

NIR LED, 850nm:

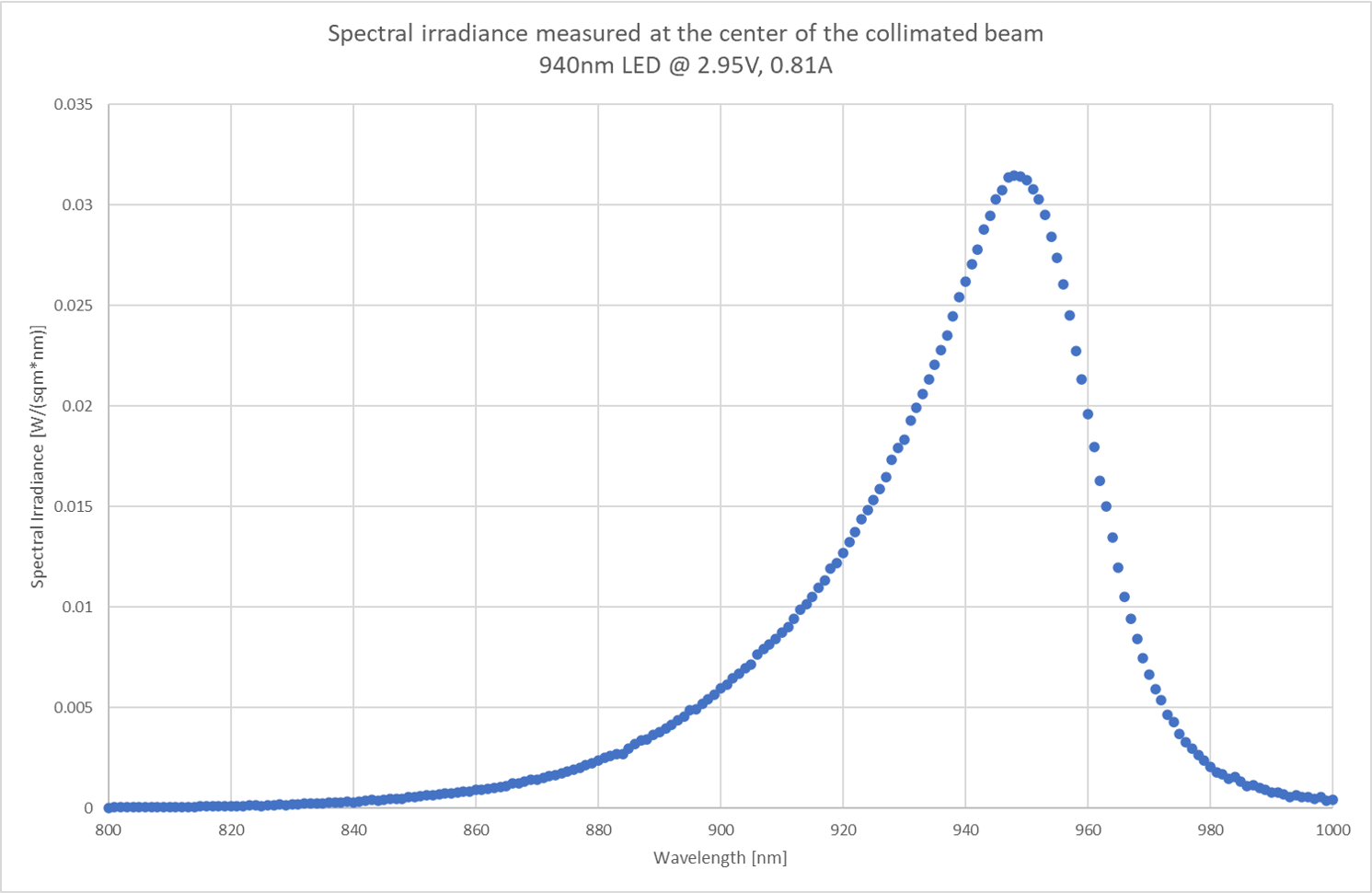

NIR LED, 940nm:
|
| Design Testing Distance | Up to 1 meter |
| Light Source Dimensions | 204mm x 94 mm x 75 mm (8.03” x 3.7” x 2.95”) |
| Programmable Power Supply Dimensions | 332mm x 202mm x 140 mm (13.1” x 8” x 5.5”) |
| Weight | Light source: 2.3 Kg (5 lbs) | Programmable Power Supply: 6.9 Kg (15.2 lbs) |
