Imatest Target Projection Module

April 13, 2022
July 23, 2024

$1,000.00

Imatest’s Target Projection Module is an add-on to our Modular or Benchtop Test Stands. This module allows you to easily simulate long test distances in a confined space by mounting the OneStone Target Projector (CM10120) securely on the MTS in alignment with the camera under test.

Imatest Modular Test Stand Base Module or Benchtop Test Stand recommended. CM10120 and LED controller sold separately.

See IMTS-TPM Data sheet

SKU: IMTS-TPM Categories: , , , ,

Our product pricing and shipping rates do not include import duties, taxes or fees. The customer / recipient is responsible for these expenses.

Description

IMTS-TPM Data sheet

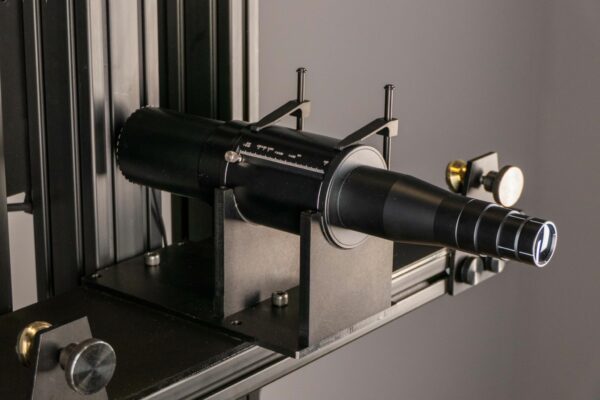

Quickly secure the OSCM10120 10° Collimator to the Modular Test Stand.  A manually adjustable diopter barrel allows you to set projected target distances from 1m-infinity with a 10º inspectable field of view.

Imatest Target Projection Module Features

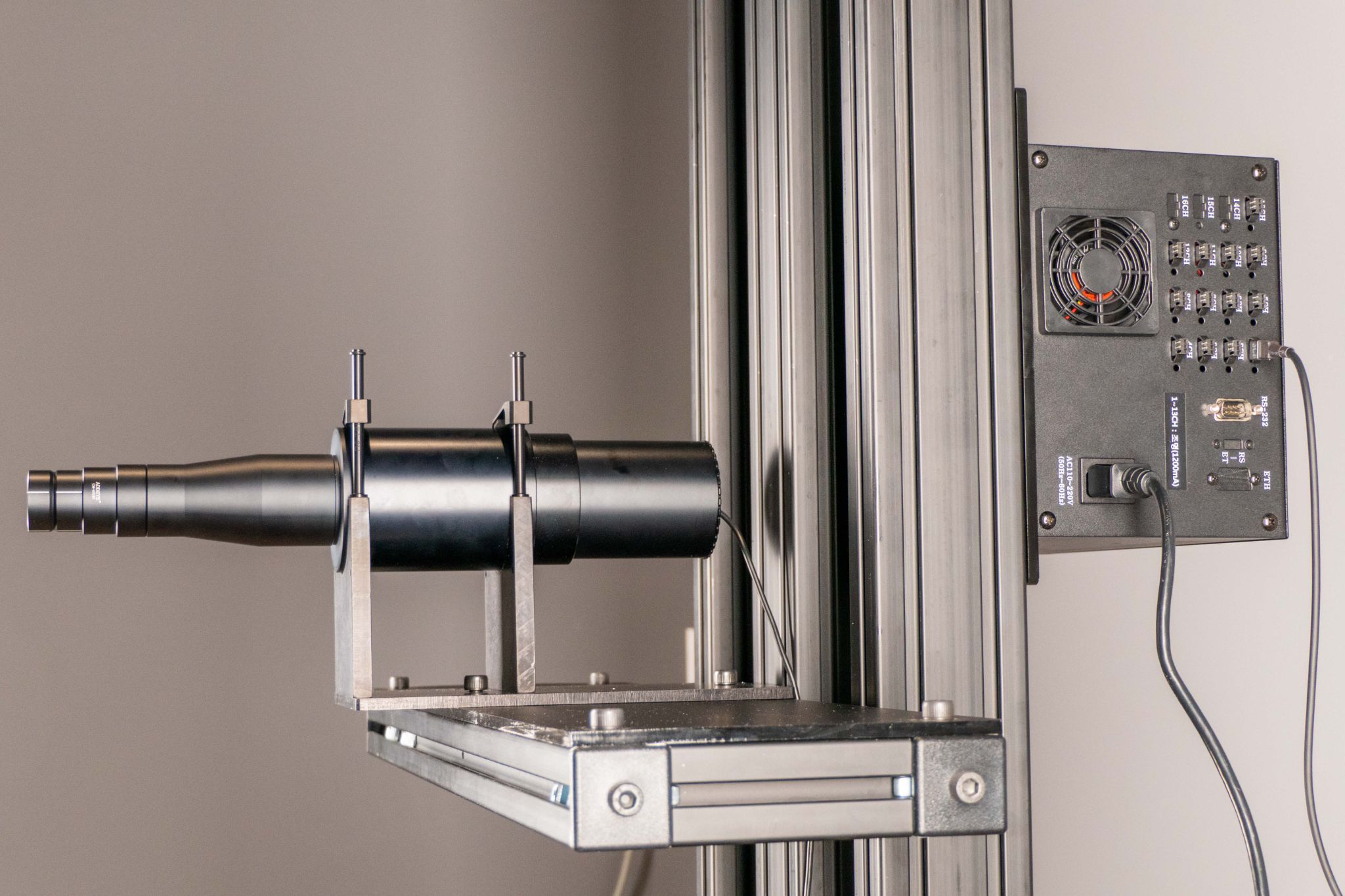

  • Quick securing and releasing clamps

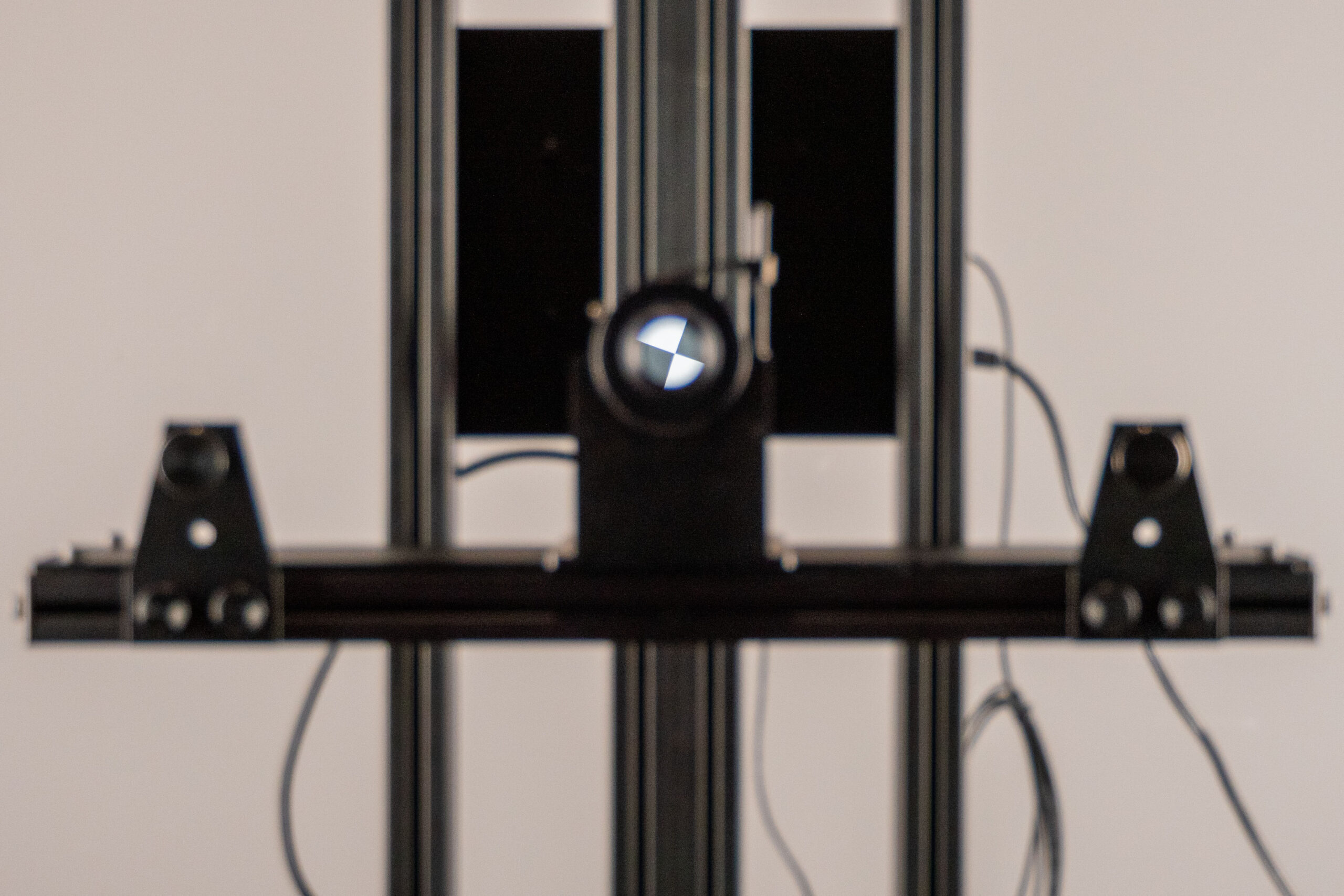

  • Mounts centered on the MTS Base Module Lightbox Shelf
  • Easily Mounts to 1″x1″ Breadboard
  • Can be used freestanding or on any benchtop

Imatest Modular Test Stand Base Module recommended.

Imatest Target Projection Module Specifications

Specifications

 Details

Weight

 2.3 Kg (5 lbs)

Dimensions

 230mm x 125mm x 180mm

Dimensions with CM10120

 330mm x 125mm x 180mm

Operating Temperature Range

 0 to 50 °C

Maximum Load

 Maximum Centered Load: 100 N















The CM10120 Projection Collimator and LED Controller (Sold separately) Features:

  • Manually adjustable diopter barrel for changing simulated distance
  • High-resolution B&W film target reticle
  • Manually controlled 6000K or NIR LED light source
  • 10º inspectable FOV
  • Independent channel control; each channel can drive a single CM10120 unit
  • Visible or NIR lighting control for multiple units: 5 channel, 8 channel, 13 channel



CM10120 Specifications (Sold separately)

Specifications

 Details

Weight

 0.87 Kg

Projector FOV

 10º

Effective focal length

 323.9mm

Exit pupil size  ø4.5mm
VIS LED color temperature  6000K ± 500K
NIR LED wavelengths  850nm or 940nm
Target reticle diameter  60.2mm

















LED Controller Specifications (Sold separately)

Specifications

OSLED-5CH

OSLED-8CH

OSLED-13CH

Weight

4.55kg

5.95kg

6.42kg

Overall dimensions

200mm X 170mm X 340mm

Input Voltage

AC110~220V(50Hz/60Hz)
