$11,240.00 – $12,780.00
The WFOV Module is an add-on to Imatest’s Modular Test Stand and provides an easy to use platform for sharpness testing of wide FOV camera systems. It enables fast and efficient testing of WFOV systems that are otherwise difficult to characterize due to the non-planar nature of their imaging plane.
- Purpose-built for sharpness testing on camera systems with FOV up to 200º
- Rail systems for easy mounting and positioning of your camera device, peripheral test targets, and light sources
- The main chart holder accommodates a variety of different charts
- Includes one Imatest Spectral Illuminance Color Sensor for measuring lighting uniformity
Base stand, lights and test charts are sold separately. View the complete WFOV package options. Lead time approximately 10 – 12 weeks. See MTS Wide Field of View Module information sheet.
Description

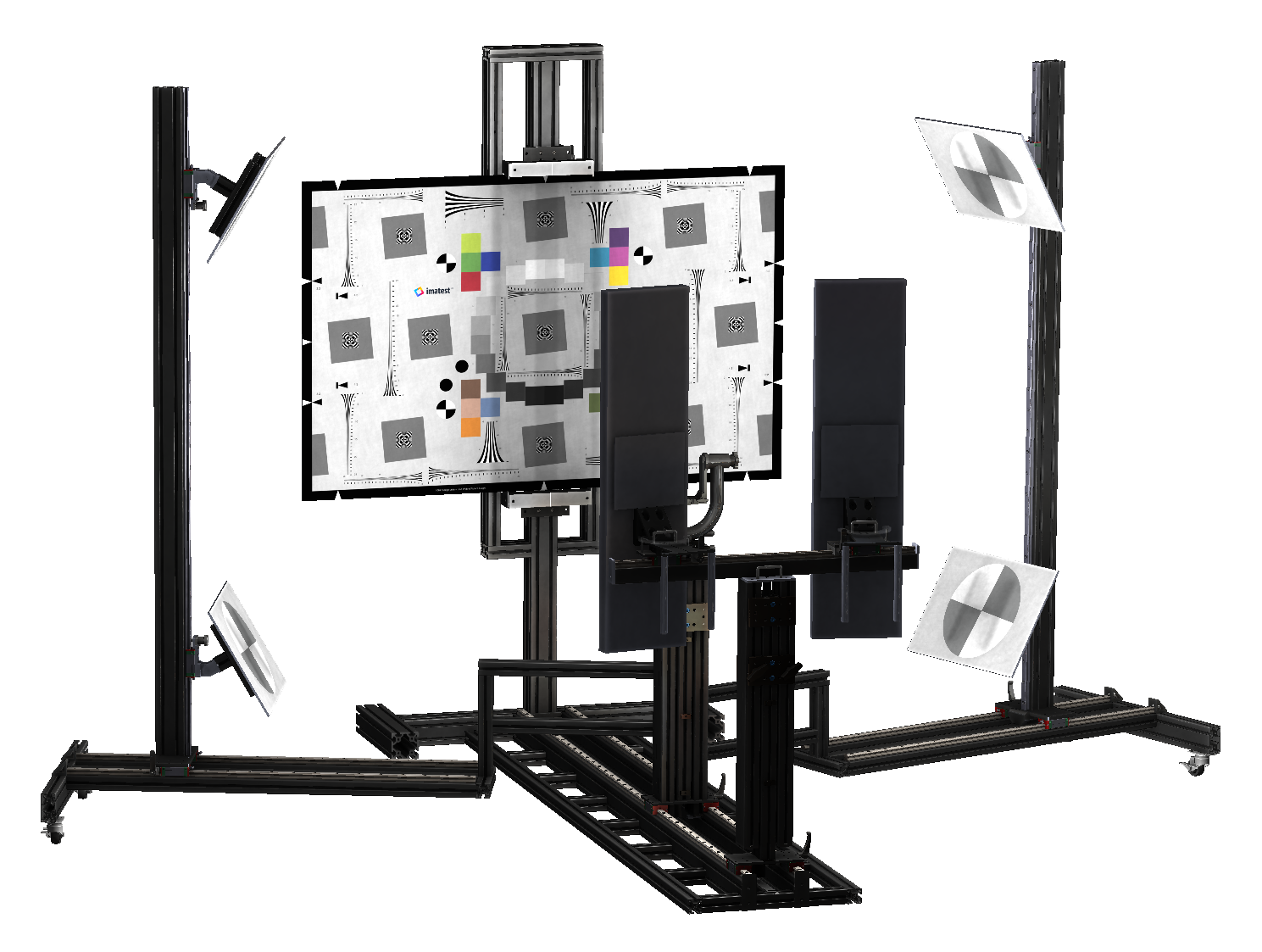

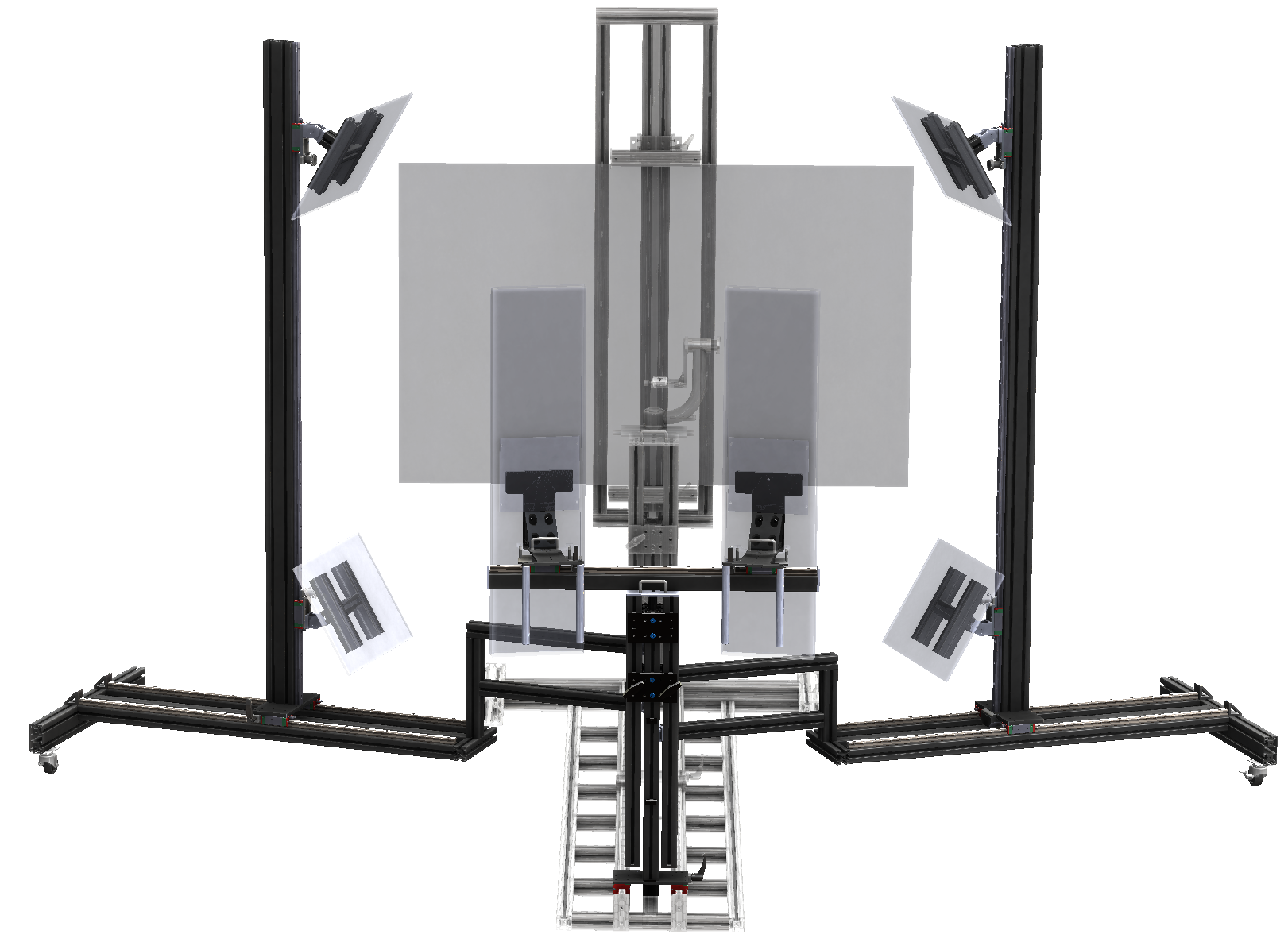

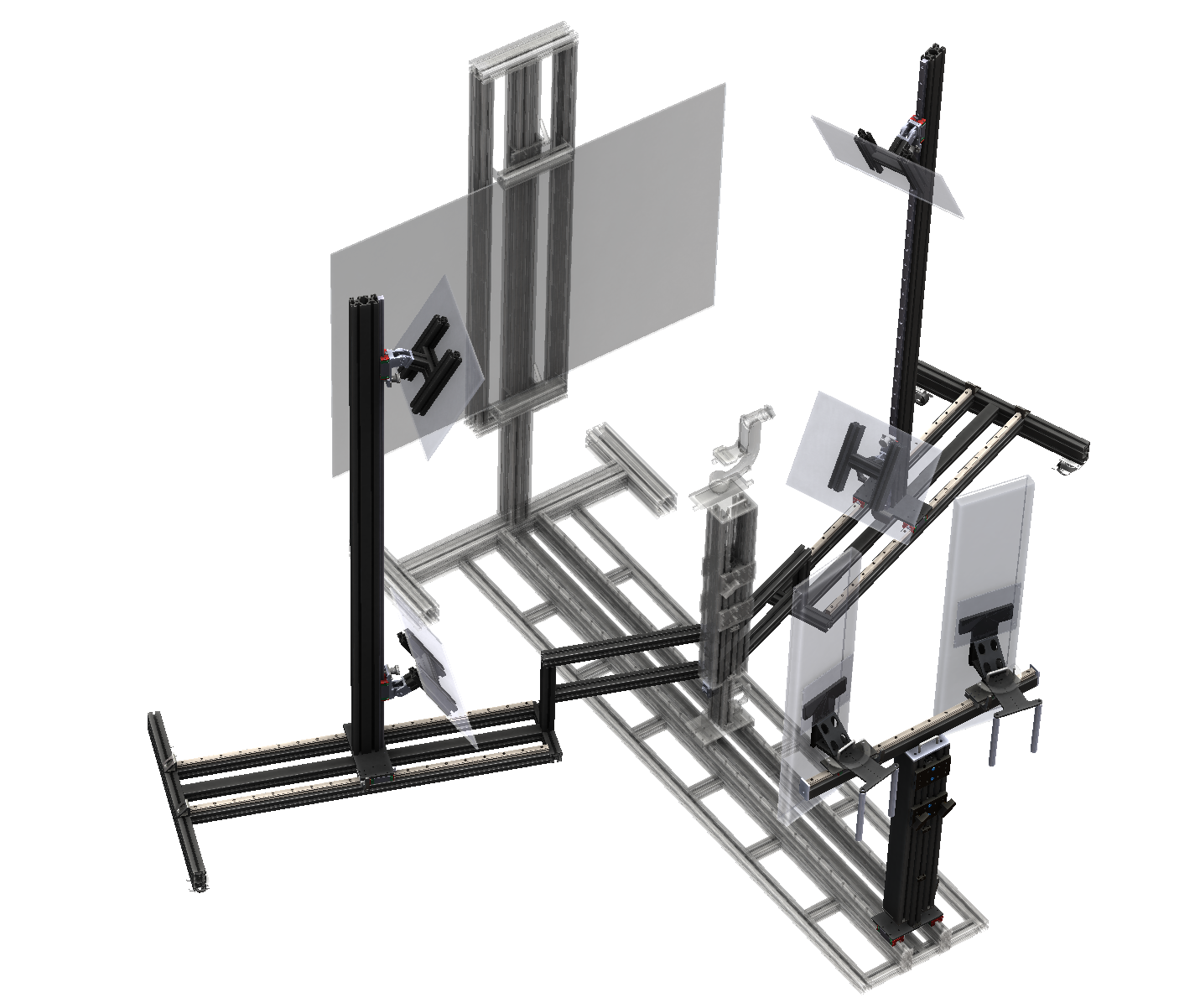

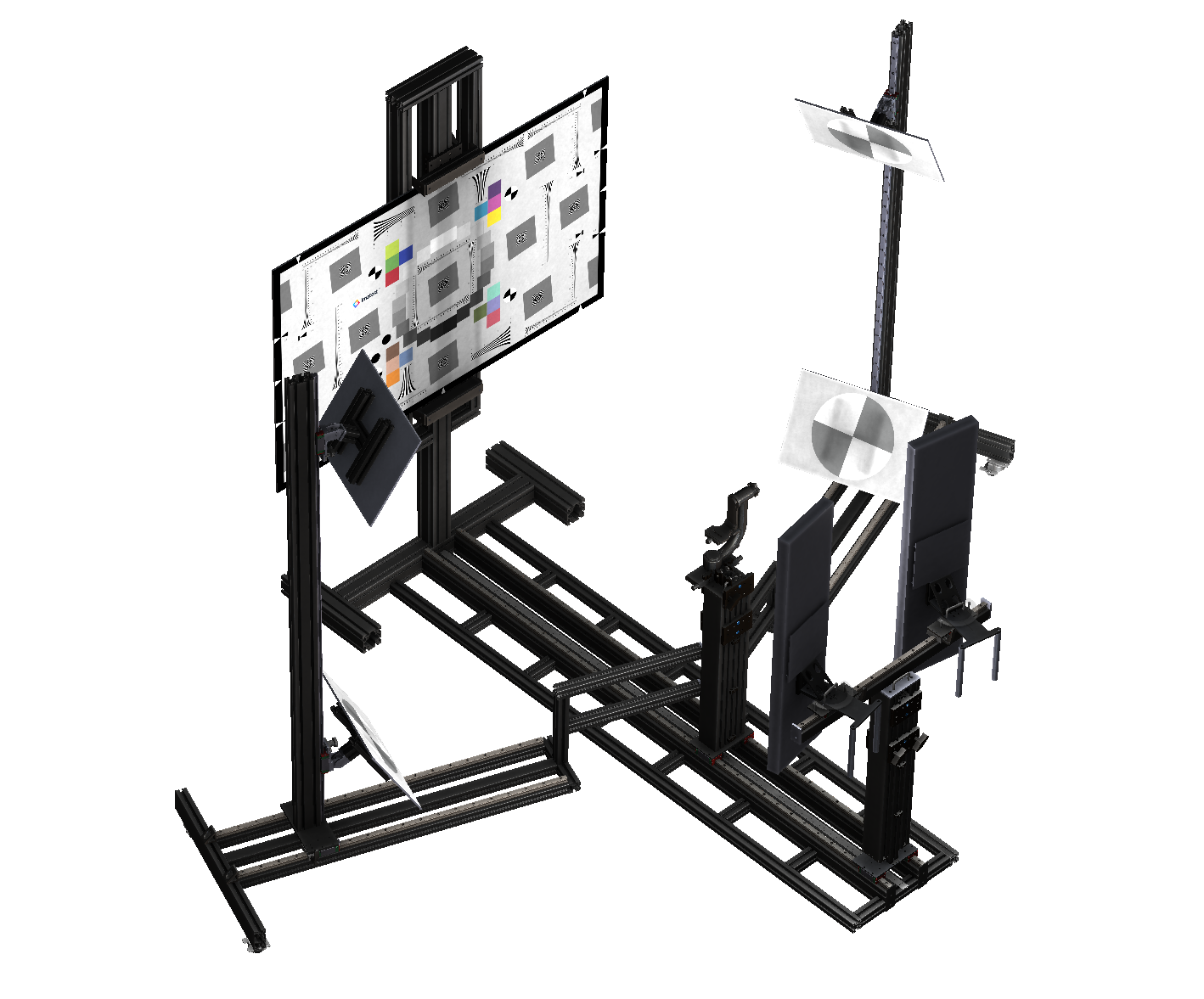

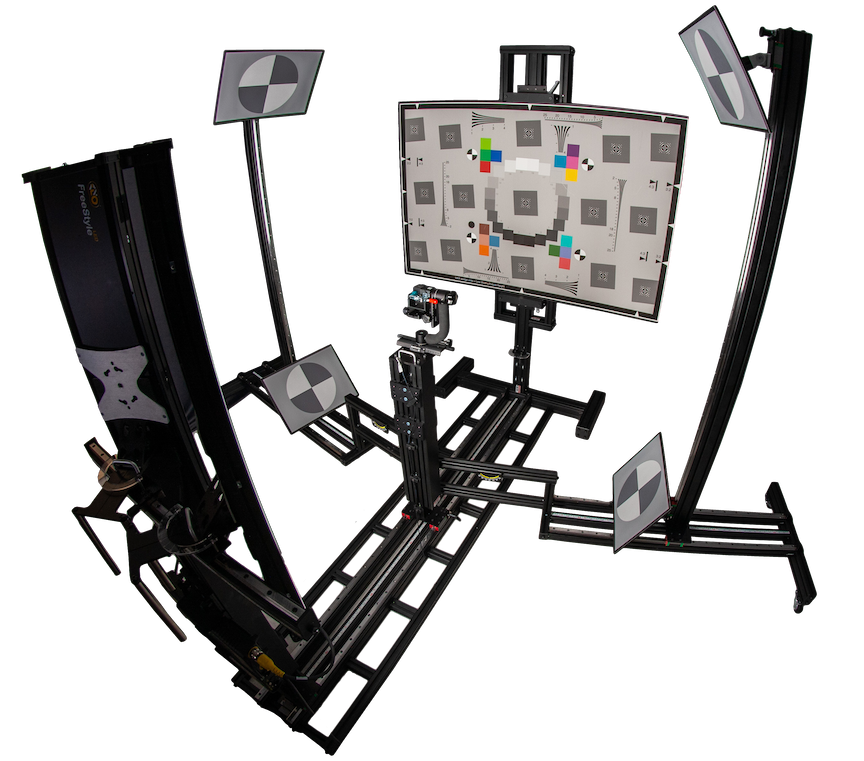

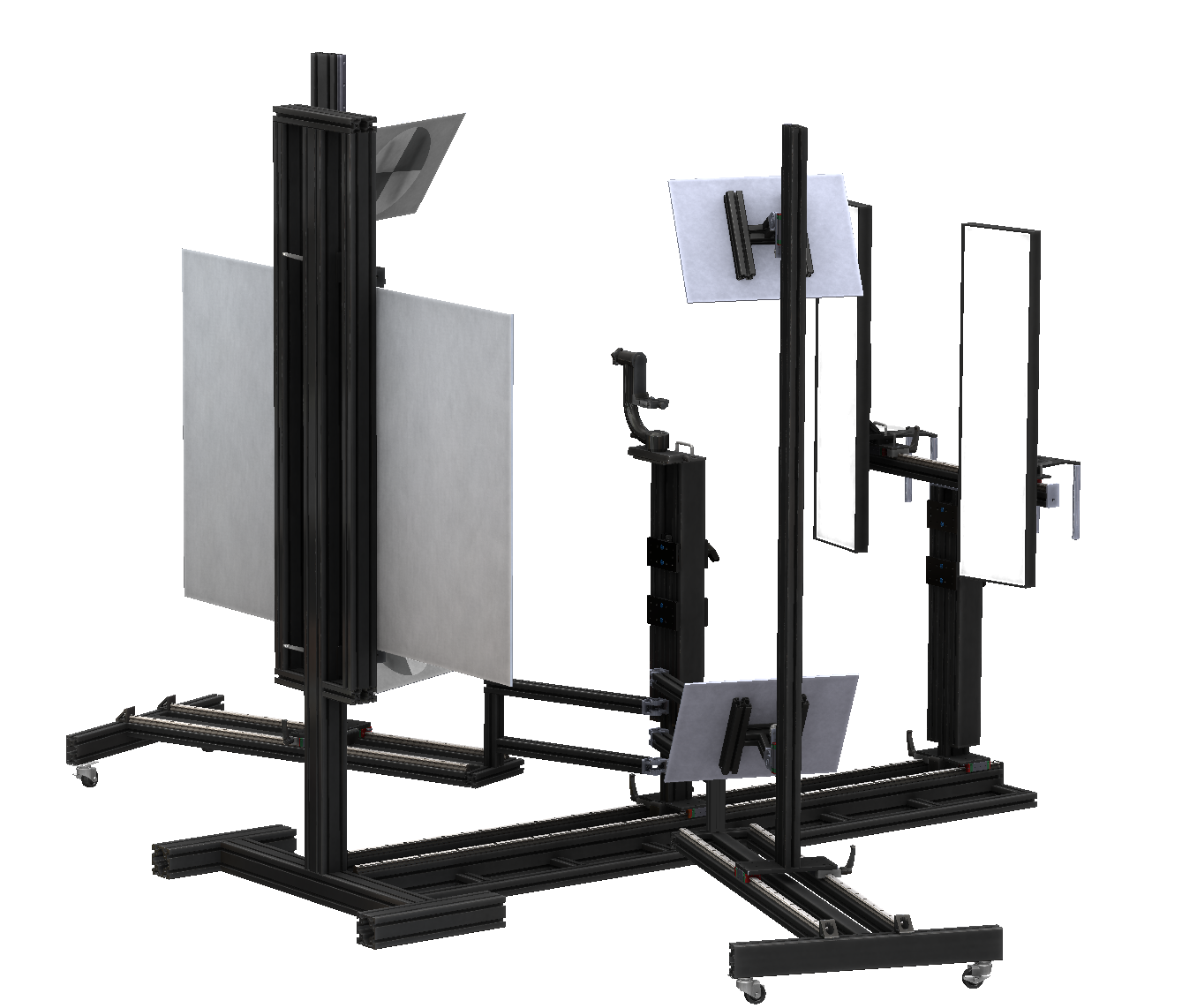

The Imatest Reflective Wide Field of View Module is an add-on to our Modular Test Stand base. It adds mounting points for 4 reflective SFRreg targets to the outside of the base, as well as a sliding light post for mounting KinoFlo LED lights in a way that allows for sufficiently uniform illumination of all 5 test charts. Imatest SFRreg targets can be affixed in a polar relationship to the camera rail and adjusted in distance, angle, and height. The arms rest on lockable casters to move with the camera rail. Mounting points for Imatest Spectral Illuminance Color Sensors allow for easy light measurements to ensure proper uniformity. This module includes one Imatest Spectral Illuminance Color Sensor with the option to add four additional Sensors. This system allows you to analyze captured images in Imatest software to better characterize wide field of view cameras.
- Allows for WFOV testing for cameras with diagonal FOVs between 140º – 200º
- Test distances between 0.5m – 1.5m
- Polar coordinate system
- Efficient and easy adjustments
- Includes 1 Imatest Spectral Illuminance Color Sensor for fast and efficient uniformity measurements
- Modular Test Stand Base module (IMTS), Kino Flo Lights (KF-F31-LIGHTS) and Test Charts are sold separately (recommended set of five targets – 4 SFRreg charts and a center eSFR-ISO chart).
Specifications:
- Weight for RWFOV Module (not including base module, charts or lights): 173lb / 79kg; Crated: 328lb / 149kg
- Overall fixture dimensions for full width max setup: Length: (Length of MTS Base Module) x Width: 3.38m x Height (2.04m)
- Crated dimension: 2.03m x 0.61m x 0.53m
- Testing distances range: 0.5m – 1.5m @ 3:2 or 16:9 camera aspect ratio
- Material: Black anodized 6105 T5 Aluminum
- Includes one Imatest Spectral Illuminance Color Sensor
- Lead Time: 8 weeks
Recommended Chart Sizes (set of five targets – 4 SFRreg charts and a center eSFR-ISO chart):
- Testing under 1m with <160º FOV: 4 Outer targets: SFRreg – Size 0.5x, 1 Center Target: eSFR ISO – Size 2x
- Testing under 1m with >160º FOV: 4 Outer targets: SFRreg – Size 1x, 1 Center Target: eSFR ISO – Size 2x
- Testing over 1m: 4 Outer targets: SFRreg – Size 1.5x, 1 Center Target: eSFR ISO – Size 4x
