The ISO-16505 bundle is made up six charts that are mentioned in various parts of the ISO-16505, Road vehicles — Ergonomic and performance aspects of Camera Monitor Systems standard.
This set of charts is available in three standard sizes: 2x, 4x and 5.5x. Select the ISO size you need based on the table below. Click on the ISO size for pricing and to order.
The 2x size replicates the charts as closely as possible to what is described in the standard. The .5x is the maximum size Inkjet possible. Custom sizing is available upon request.
Find more information, visit our ISO 16505 Road Vehicle Camera Monitor Systems Solution page and our Automotive Solutions page.
Description
The charts included in this bundle are for use in testing ISO 16505, Road vehicles — Ergonomic and performance aspects of Camera Monitor Systems. The specific charts are described below. Reference color measurements are available by request on a chart by chart basis. Please review our ISO 16505 Solution Page which highlights concerns, or contact charts@imatest.com for more information.

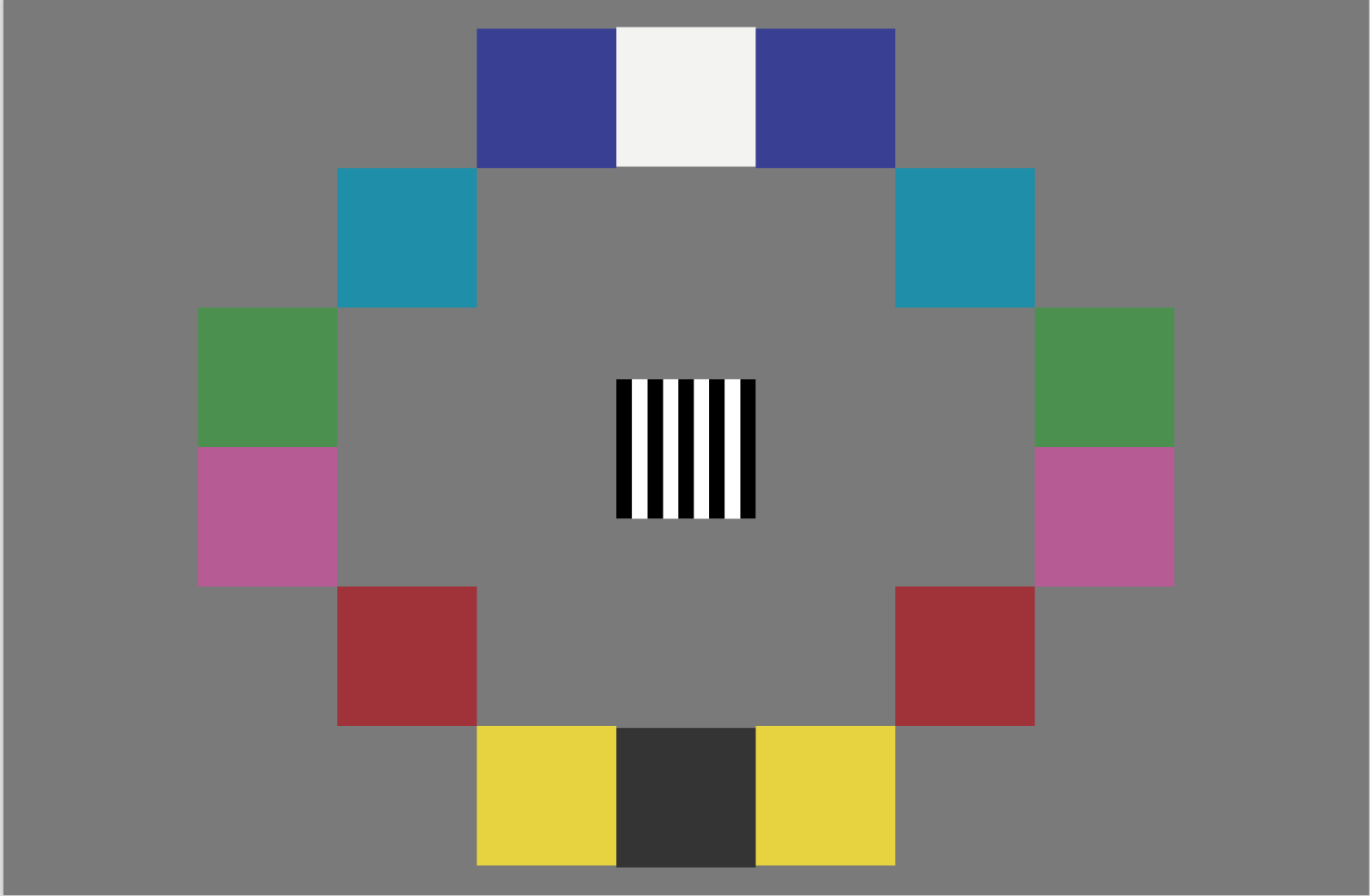

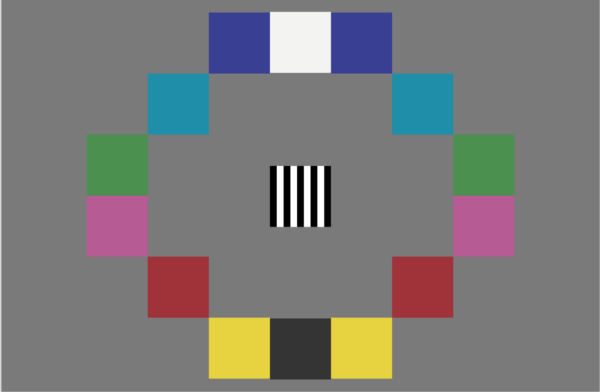

ISO-16505-Color – This color chart uses eight colors (R, G, B, Ye, Cy, Mg, black, and white) based on the X-rite “ColorChecker” chart as specified. The color patches are arranged to keep an even distance from the image center with complementary colors on the opposite side. The background is a diffuse ~18% gray. This target can be analyzed by the color/tone module of Imatest.

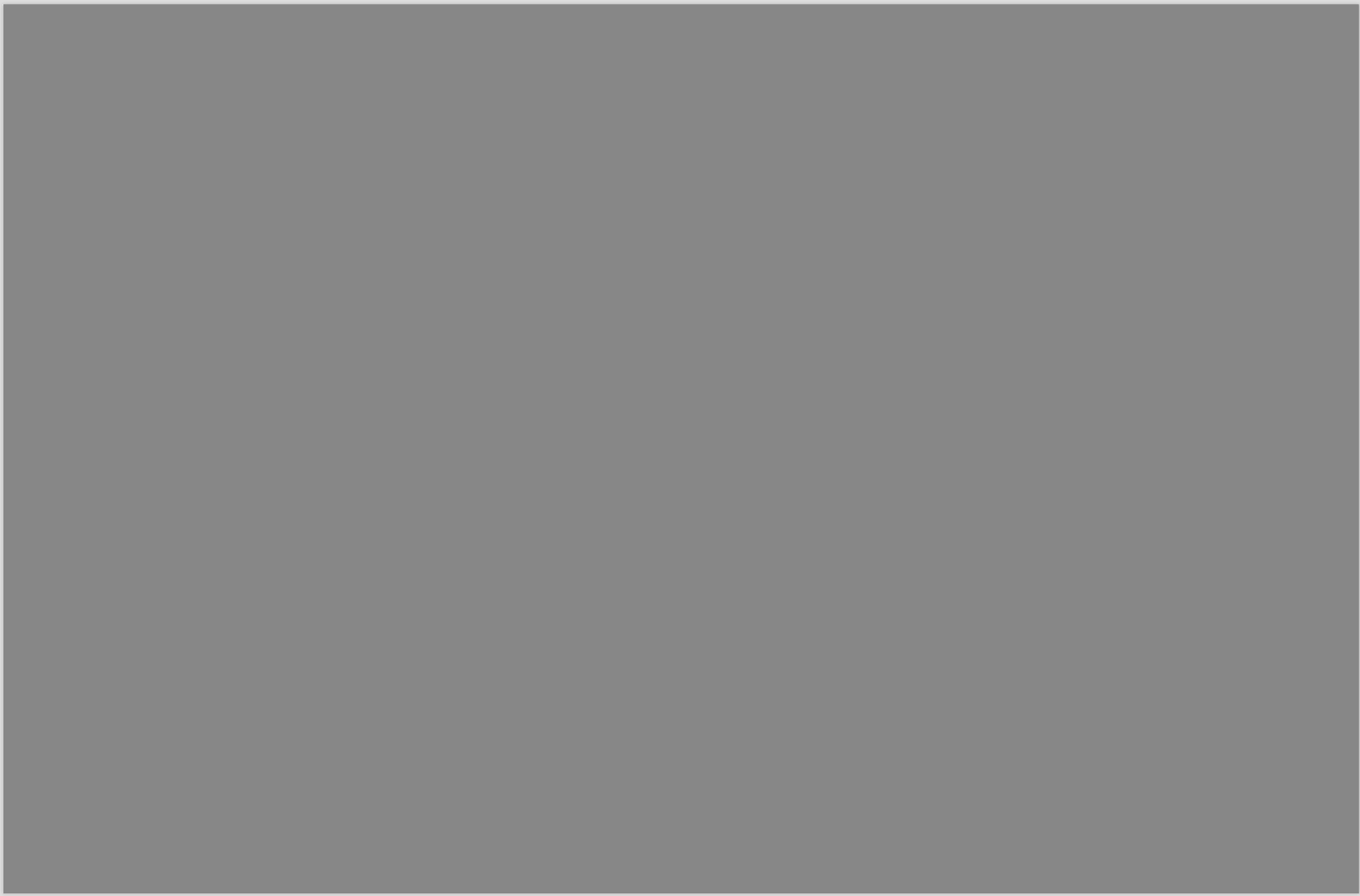

ISO-16505-Gray18 – This 18% gray chart design is a single tone gray chart with >98% uniformity.

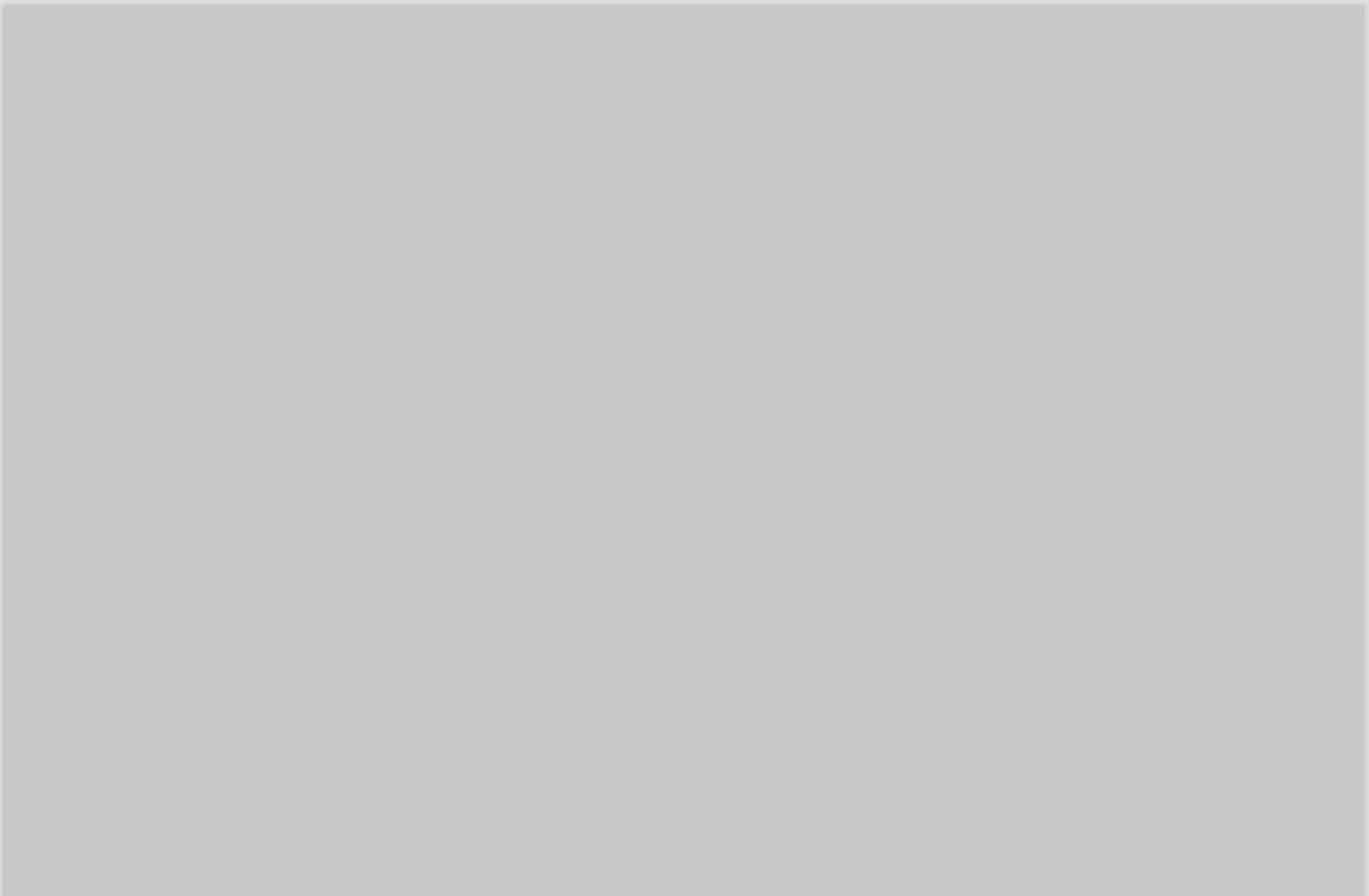

ISO-16505-Gray70 – This 70% gray chart design is a single tone gray chart with >98% uniformity.

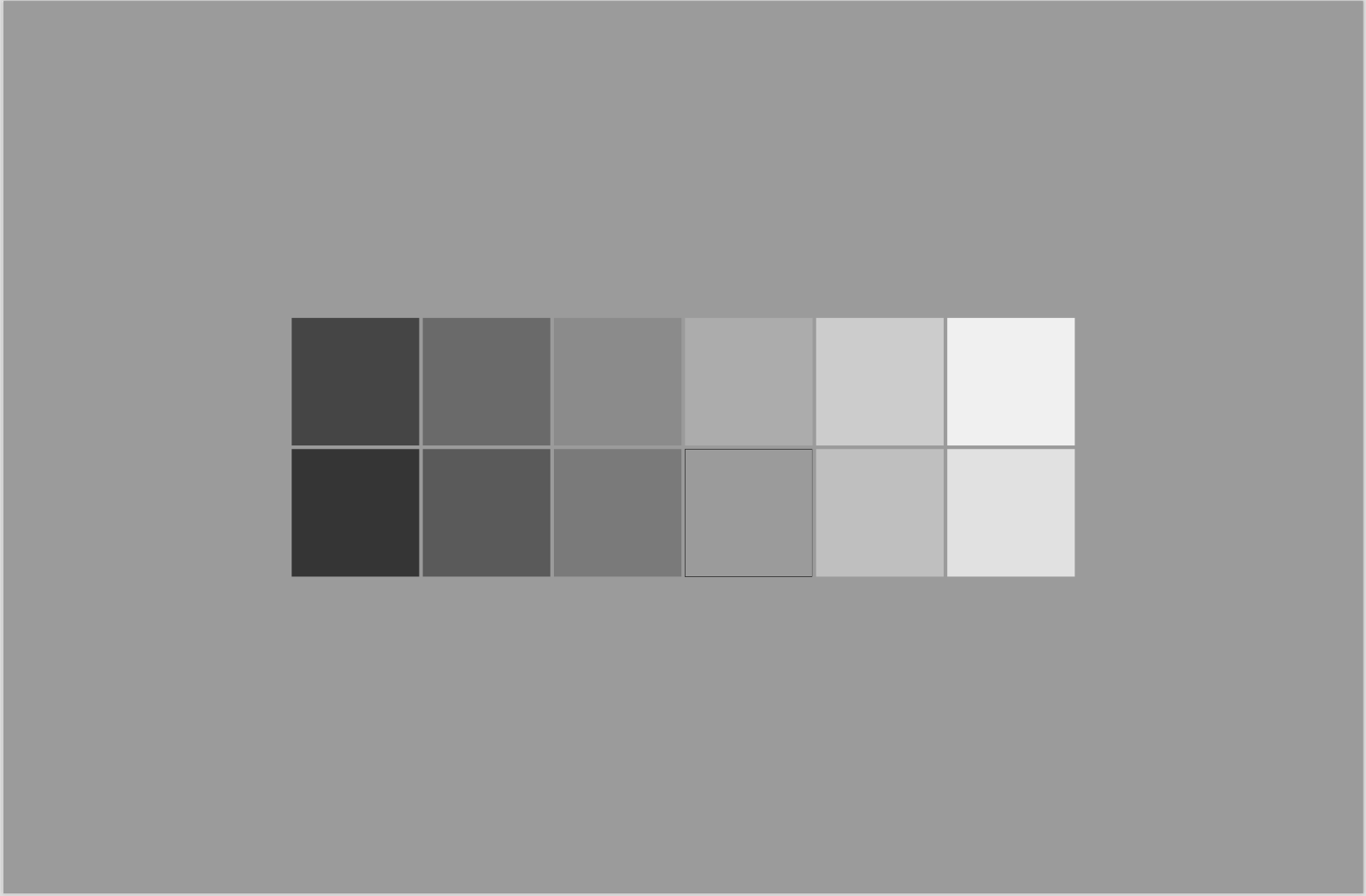

ISO-16505-Grayscale – The grayscale chart is outlined in an earlier version of the standard for luminance measurements. It can be analyzed by the color/tone module of Imatest.

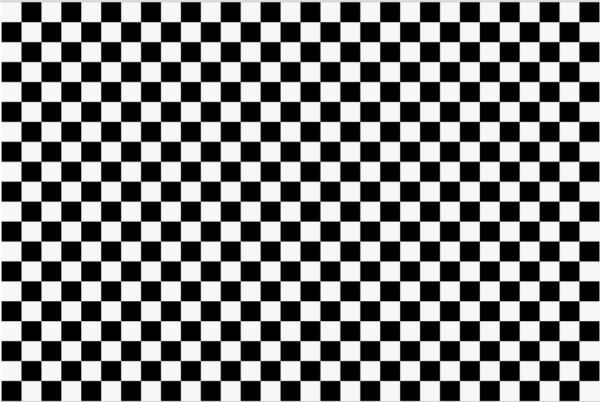

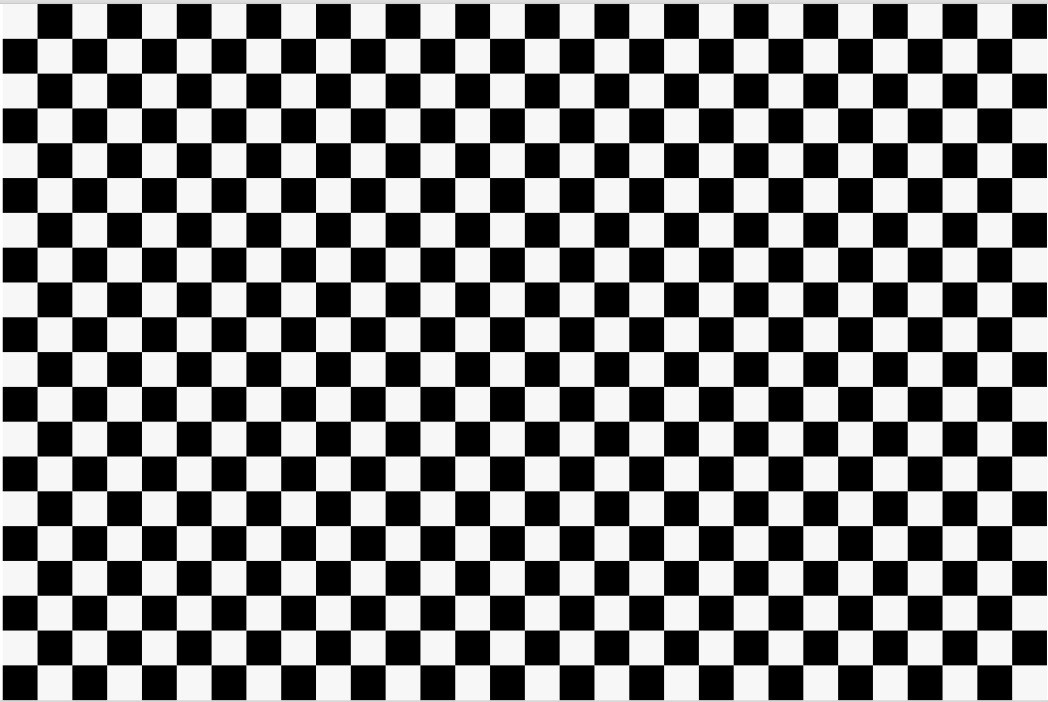

ISO-16505-CB – This high contrast ‘chessboard’ (checkerboard) target is for measuring distortion and magnification according to the specifications outlined in the standard.

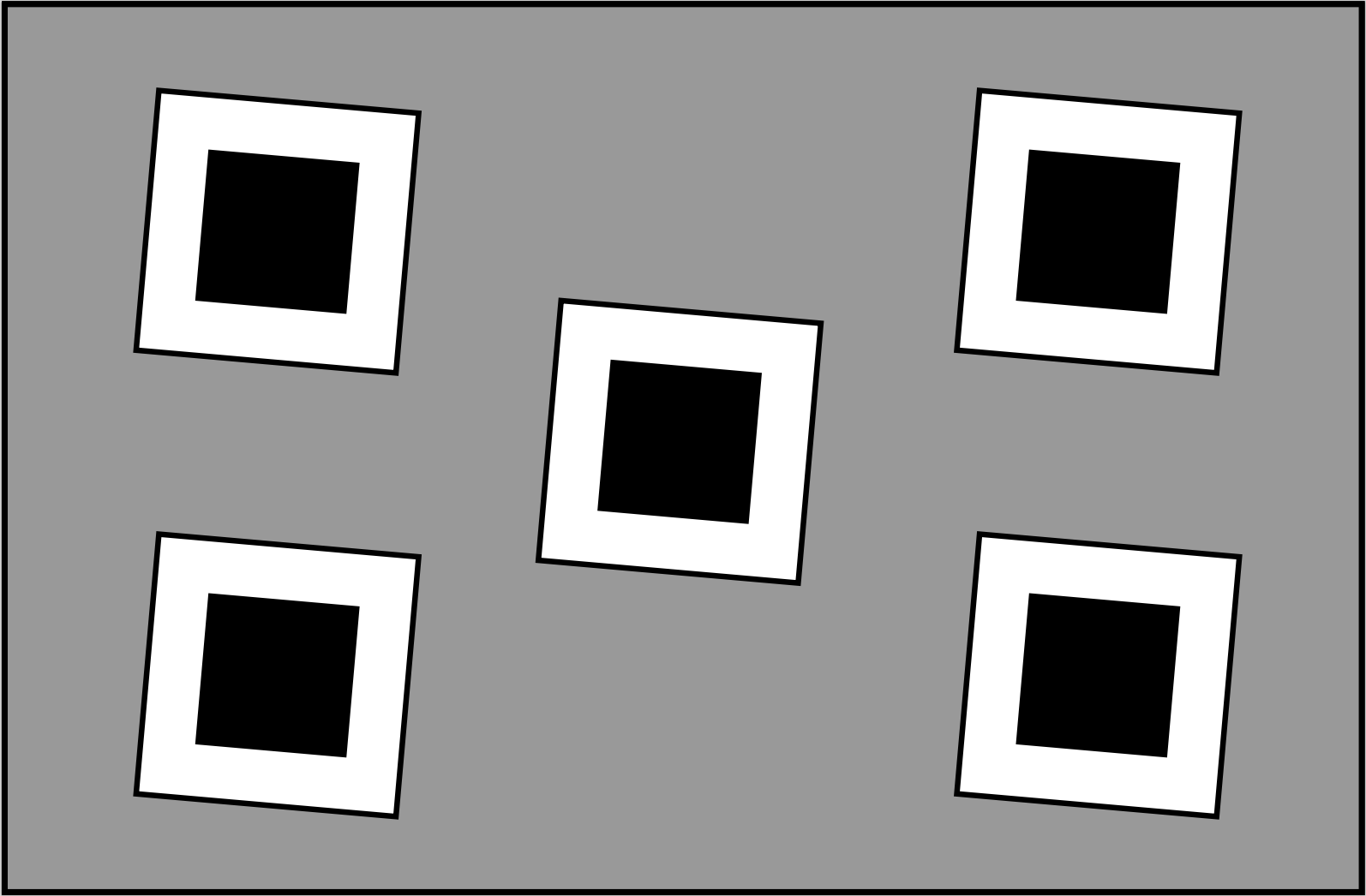

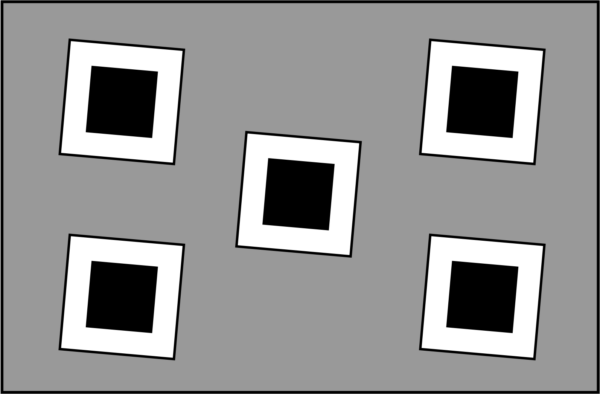

ISO-16505-SFR – The SFR chart is made up of five high contrast slanted squares designed for measuring MTF of the system.
| Test Chart | 2x | 4x | 5.5x |
|---|---|---|---|
| ISO-16505-Color | 24” x 15.75” 610mm x 400mm |
48” x 31.5” 1219mm x 800mm |
66” x 43.31” 1676mm x 1100mm |
| ISO-16505-Gray18 | 36” x 24” 914.4mm x 610mm |
36” x 24” 914.4mm x 610mm |
36” x 24” 914.4mm x 610mm |
| ISO-16505-Gray70 | 36” x 24” 914.4mm x 610mm |
36” x 24” 914.4mm x 610mm |
36” x 24” 914.4mm x 610mm |
| ISO-16505-Grayscale | 24” x 15.75” 610mm x 400mm |
48” x 31.5” 1219mm x 800mm |
66” x 43.31” 1676mm x 1100mm |
| ISO-16505-CB | 24” x 15.75” 610mm x 400mm |
48” x 31.5” 1219mm x 800mm |
66” x 43.31” 1676mm x 1100mm |
| ISO-16505-SFR | 24” x 15.75” 610mm x 400mm |
48” x 31.5” 1219mm x 800mm |
66” x 43.31” 1676mm x 1100mm |
