Motorized Test Stand – Upgrade Kits

February 3, 2022
June 5, 2024

$7,200.00$22,200.00

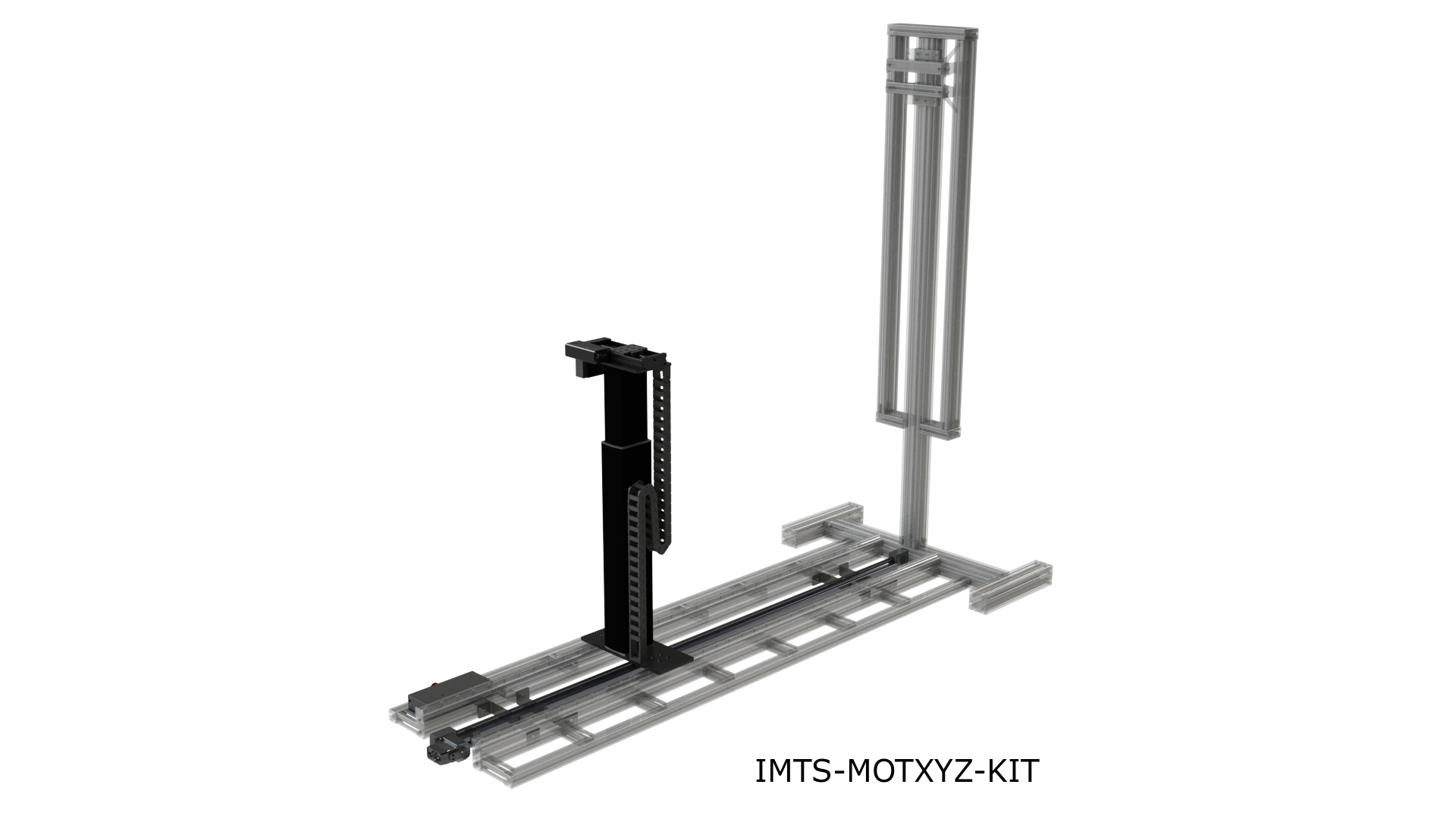

Upgrade your existing Modular Test Stand (MTS) Base Module to a Motorized version. The programmable, motorized lifting column and rail system along the optical axis enable more efficient lab testing. Add a motorized Z-stage (along the optical axis) for positioning the camera post, YZ-stages which adds an automated lifting column, or XYZ-stages which includes lateral camera translation for a fully automated MTS fixture.

Easily create automated test plans with many camera-to-chart test distances and perform live depth of field tests using a computer controlled stage with precise linear movements.

Motorized Z-stage Information Sheet

Motorized MTS Information Sheet

Description

Upgrade your existing Modular Test Stand (MTS) Base Module to a Motorized version. The programmable, motorized lifting column and rail system along the optical axis enable more efficient lab testing. Add a motorized Z-stage (along the optical axis) for positioning the camera post, YZ-stages which adds an automated lifting column, or XYZ-stages which includes lateral camera translation for a fully automated MTS fixture.

Easily create automated test plans with many camera-to-chart test distances and perform live depth of field tests using a computer controlled stage with precise linear movements.

Manual Modular Test Stands can be retrofitted with this motorized add-on.

Features
  • Includes linear stage, dragchain, and adapter kit
  • Includes a recirculating ball bearing carriage which provides high load and long lifetime
  • Easily connect using USB 2.0 or serial communication ports; send commands over RS-232
  • Zaber’s Console software makes it easy to control the speed and position of the camera, change the device settings, and write custom scripts.
  • The linear stage system includes an indexed knob which provides manual control
  • Control Interfaces: USB Serial, Zaber Console Software, Python 3 – Zaber Motion Library
Specifications
  • Upgrade Kit Weights:
    • IMTS-2m
      • MOTZ: 11 Kg (24 lbs)
      • MOTYZ: 23 Kg (50 lbs)
      • MOTXYZ: 27 Kg (60 lbs)
    • IMTS-3.5m
      • MOTZ: 14.7 Kg (32 lbs)
      • MOTYZ: 26.7 Kg (59 lbs)
      • MOTXYZ: 31 Kg (68 lbs)
  • Motorized Carriage Dimensions: 2237mm x 134mm x 76mm
  • IMTS-2M Dimensions (w/Motor): 2550mm x 1000mm x 2020mm
  • Linear Motion: Travel 1850mm | Max Speed 3000mm/sec
  • Microstep Size (Default Resolution): 7.03125 µm
  • Motor Precision: Accuracy (unidirectional) 1,600 µm | Repeatability < 20 µm
  • Motor Backlash: <250 µm
  • Motor Power: Peak Thrust 90N | Max Torque 180 N•cm
  • Operating Temperature Range: 0 to 50°C
  • Maximum DUT Weight: 45 Kg (100 lbs)
  • Electrical: Standard 120V | Max Current Draw 3500 mA
