Reflective scanner test chart ISO-16067-1 – QA-61

September 14, 2011
June 28, 2022
images

$435.00

Used for determining reflective light resolution & imaging characteristics of digital scanning systems.

SKU: QA-61-ISO-16 Category:

Our product pricing and shipping rates do not include import duties, taxes or fees. The customer / recipient is responsible for these expenses.

Description

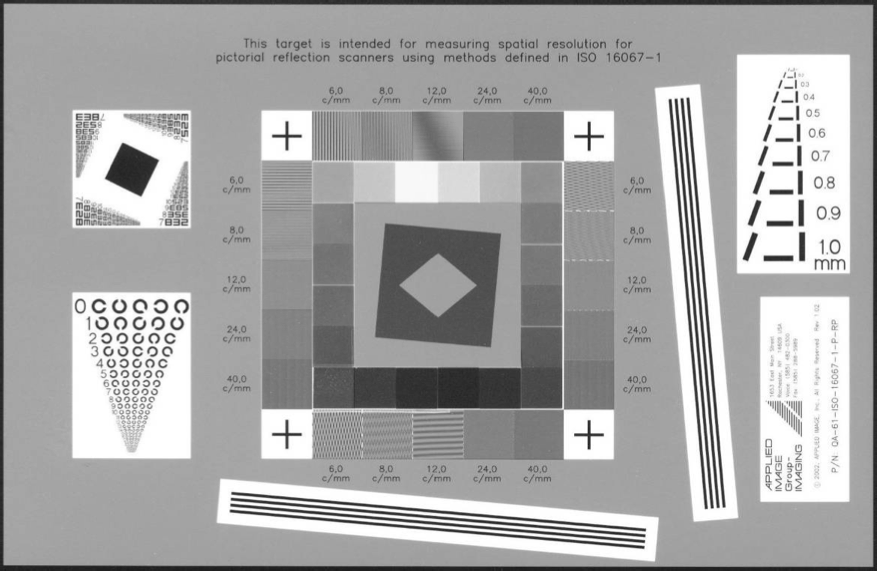

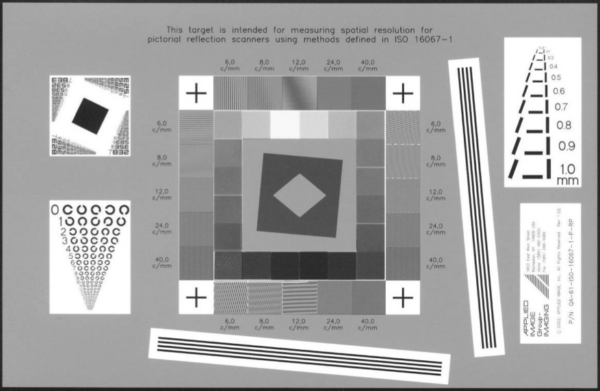

Size 100mm x 152mm (4″ x 6″); designed to ISO-16067-1 specifications. Includes Landolt Ring, alphanumeric resolution and slant edge charts; gray step patches, horizontal, vertical and slanted ronchi patterns (6 – 40 c/mm) plus the APPLIED T-100 Digital Electronic Pixel target.

Overall Size:  152.4mm x 152.4mm (6″ x 6″)

Technical Notes: Reflective Scanner Test Chart ISO-16067-1 QA-61 v1-06.pdf
