SFRplus Large LVT Film Chart

March 10, 2013
October 28, 2024
SPLV155912
images

SPLV155912

$1,000.00 – $1,140.00

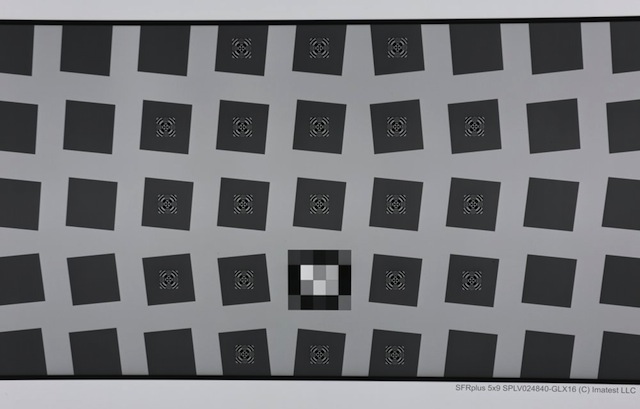

This transmissive (backlit) SFRplus test chart can be used with the Imatest SFRplus module to measure MTF, lateral chromatic aberration, distortion, and tonal response. The SFRplus module features fully automated region-of-interest detection. The SFRplus chart offers significant advantages over commonly used charts such as the ISO 12233 chart, including 1) use of space, 2) the ability to produce a map of sharpness over the sensor surface, 3) better measurement accuracy due to the lower contrast (4:1), and 4) full support for automated testing.

Size

This chart has an active chart area of 48.3 cm x 26.81 cm (19 in x 10.56 in) in a total film size of 30.48 cm x 50.8 cm (12 in x 20 in). Bar-to-bar height is 252 mm (9.92 in).

Email charts@imatest.com for current availability and lead time.

Categories: , Tag:

Our product pricing and shipping rates do not include import duties, taxes or fees. The customer / recipient is responsible for these expenses.

Description

This chart is produced with a high-precision, black and white, LVT film recording process for the best possible density range, low noise, and fine detail. The edges have an MTF50 >= 10 cycles/mm, which is about 2 times better than the best inkjet charts. The contrast ratio is 4:1.

For more information please take a look at our transmissive chart quality comparison. The large patterns produce good results with up to 30 megapixel cameras.

Video (Watch on our site)

Documentation and software support

SFRplus can be run either through the highly-interactive Rescharts interface or as a batch-capable fixed module. The key documentation for getting started is Using SFRplus Part 1, found in the SFRplus section of the Documentation page. We recommend framing the chart with a small amount of white space above and below the top and bottom bars. Badly-framed charts can be analyzed with SFR using manual ROI selection.
