SFRplus Test Charts on Color High-Precision LVT Film

May 16, 2012
November 22, 2024
images
images

$570.00

These charts are produced with a high-precision LVT film recording process for the best possible density range, low noise, and fine detail. We have multiple options available including Small (Half Sheet), Medium (Full Sheet), and Multi-Size (Full Sheet) targets.

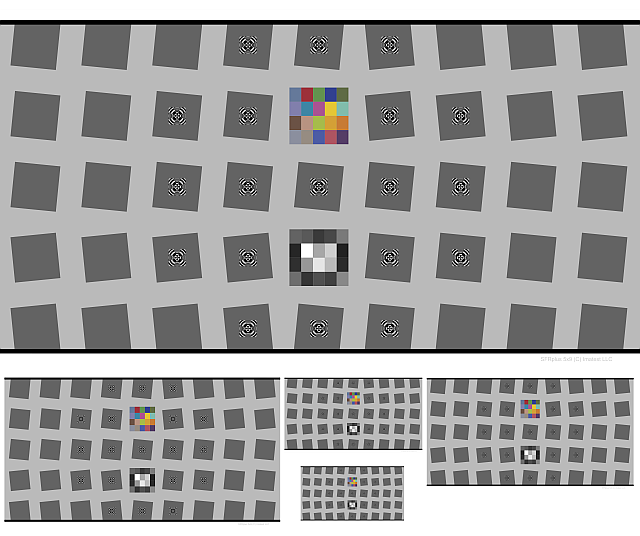

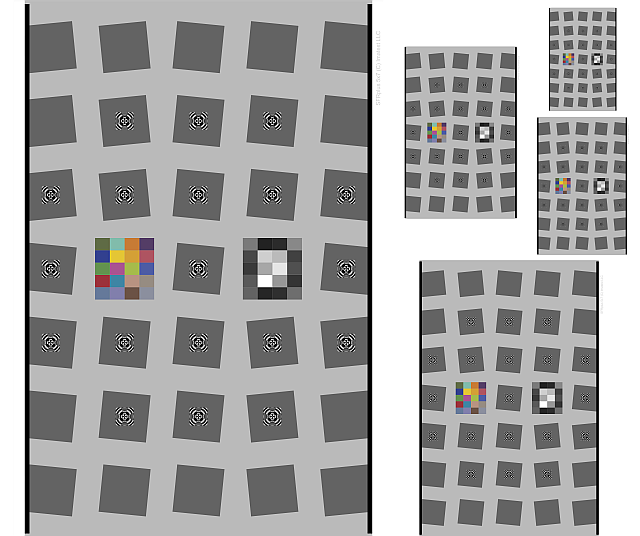

Our Multi-Size option makes maximal use of the film space to provide a variety of different sized charts.

Categories: , , , , Tags: , ,

Our product pricing and shipping rates do not include import duties, taxes or fees. The customer / recipient is responsible for these expenses.

Description

These charts contain SFRplus test patterns with 4:1 contrast and grayscale and color patterns, produced with a high-precision LVT film recording process for the best possible density range, low noise, and fine detail. The Multi-Size versions contain 5 different sizes all printed on one sheet of film. The small and medium options are a single size, as indicated in the table below.

Video (Watch on our site)



5×7 Multi-Chart Dimensions 5×9 Multi-Chart Dimensions 5×7 Medium  5×9 Medium
Active Area Bar-to-Bar
Height		 Active Area Bar-to-Bar
Height		 Active Area Bar-to-Bar
Height		 Active Area Bar-to-Bar
Height
197mm x 136mm
(7.75″ x 5.357″)		 128mm
(5.208″)		 235mm x 131mm
(9.25″ x 5.139″)		 122.8mm
(4.834″)		 229mm x 163.2mm
(9.016″ x 6.425″)		 153.5mm
(6.043″)		 235 mm x 130.5 mm (9.25″ x 5.139″) 122.8 mm (4.835″)
102mm x 70mm
(4″ x 2.765″)		 66.1mm
(2.601″)		 102mm x 56mm
(4″ x 2.222″)		 53.1mm
(2.090″)
64mm x  44mm
(2.5″ x 1.728″)		 41.3mm
(1.625″)		 76mm x 42mm
(3″ x 1.667″)		 39.8mm
(1.568″)		 5×7 Small 5×9 Small
51mm x 35mm
(2″ x 1.328″)		 33mm
(1.3″)		 51mm x 28mm
(2″ x 1.111″)		 26.5mm
(1.045″)		 Active Area Bar-to-Bar
Height		 Active Area Bar-to-Bar
Height
38mm x 26mm
(1.5″ x 1.027″)		 24.8mm
(0.975″)		 38mm x 21mm
(1.5″ x 0.833″)		 19.9mm
(0.784″)		 160mm x 114.3mm
(6.3″ x 4.5″)		 107.5mm
(4.23″)		 196.9 mm x 109.4 mm (7.75″ x 4.306″) 102.9 mm (4.051″)

Documentation and software support

SFRplus can be run either through the highly-interactive Rescharts interface or as a batch-capable fixed module. The key documentation for getting started is Using SFRplus Part 1, found in the SFRplus section of the Documentation page. We recommend framing the chart with a small amount of white space above and below the top and bottom bars. Badly-framed charts can be analyzed with SFR using manual ROI selection.
