Reg-FR-5x
REG-HS-5x (1)
$2,100.00

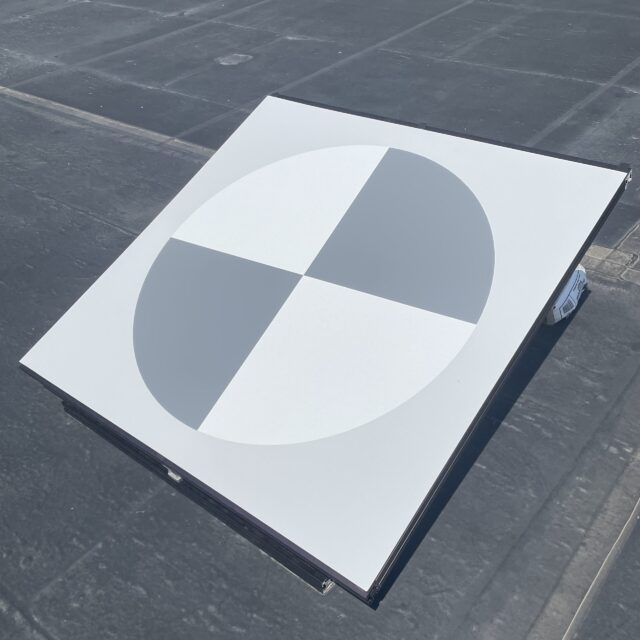

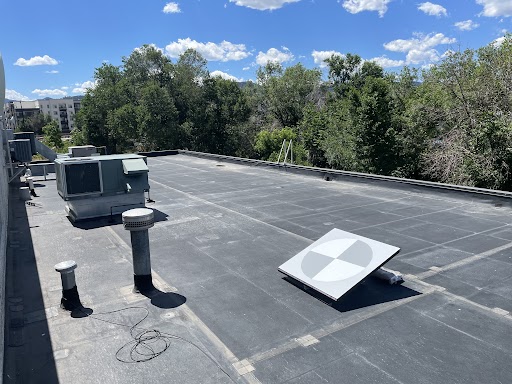

This high stress SFRreg target allows you to test your cameras and equipment in real world settings. It is ideal for testing UAVs, drones, agricultural equipment, weather stations, and more in outdoor environments. With the SFRreg Field Ruggedized target, you can test for resolution or sharpness in outdoor lighting conditions and compare with your results measured in a controlled lab environment. The target is UV and water resistant for the most extreme outdoor conditions. Lead time 3-4 weeks.
Description
- Matte Vinyl substrate suitable for temperature range of -50°F to 180°F
- Recommended uses: Automotive, Architectural, Marine (above static water line)
- Mounted to 6mm ePanel dibond
- Includes M8 through holes for mounting to a wall or frame
- Contrast Ratio of 4 (±1.5):1
- UV and Water resistant
SFRreg Field Ruggedized Target Specifications:
| Specifications | Details |
| Â Weight | Â 9.5 kg (21 lbs) |
| Â Dimensions | Â 1219.2 x 1219.2 x 6mm (48 x 48 x 0.24″) |
| Â SFRreg Diameter | Â 1000 mm (39.37″)Â | SFRreg Size 5x |
|  Temperature Range |  -50°F to 180°F (-60°C to 107°C) |
| Â Substrate Material | Â Supreme Wrap Matte Vinyl |
|  Contrast Ratio | 4 (±1.5):1 |
| Â Recommended Use | Â Automotive, Architectural, UAV, Marine (above static water line) |
|  SFRreg Tilt |  5° |
| Â SKU | Â REG-FR-5x |
Adjustable Stand Specifications:
| Specifications | Details |
| Â Weight | Â 9.5 kg (21 lbs) |
| Â Dimensions | Â 1219.2 x 1219.2 x 6mm (48 x 48 x 0.24″) |
| Â SFRreg Diameter | Â 1000 mm (39.37″)Â | SFRreg Size 5x |
|  Temperature Range |  -50°F to 180°F (-60°C to 107°C) |
| Â Substrate Material | Â Supreme Wrap Matte Vinyl |
