Collimators enable long-range testing to be performed in a compact environment. The relay lens elements produce a virtual image of a target focused at a long distance. Typically, these are focused around the hyperfocal distance or up to infinity. The Imatest Collimator Fixture helps with the precise alignment required when using this system. The CM10120 projection collimator is a compact system that projects a target at a simulated distance.
The Imatest Collimator Fixture includes a validation procedure that ensures minimal work-distance error and an on-board computer that displays and saves camera positions, lens and light panel configurations, and simulated distances. The Fixture is adaptable to numerous camera systems by providing adjustable simulated test distances, interchangeable collimating lenses, and a variety of test charts. The Fixture integrates with Imatest LED Light Panels, sizes C through G, and includes a joystick and computer-control interface for automatic positioning using four motorized stages, and storage and recall of device positions. Here is the Collimator Fixture Ecosystem:
Light Panel Size G
The CM10120 system can simulate a test distance from 1m – infinity. This is useful for testing camera systems that have long focus distances since lab space and production line space are usually limited. The simulated distance (i.e. object distance) is manually adjustable across the entire range. The CM10120 is not intended to fill the camera FOV for most camera systems. The target projected by the CM10120 can be used for testing a given region of the camera FOV, making it useful for tasks such as setting focus or checking for pass/fail criteria. Multiple units can be configured to project multiple targets into a camera if simultaneous multi-region testing is required.
 |
 |
 |
Collimating Lenses
| Lens | Wavelength | FoV | Exit Pupil Size | Virtual Object Distance |
|---|---|---|---|---|

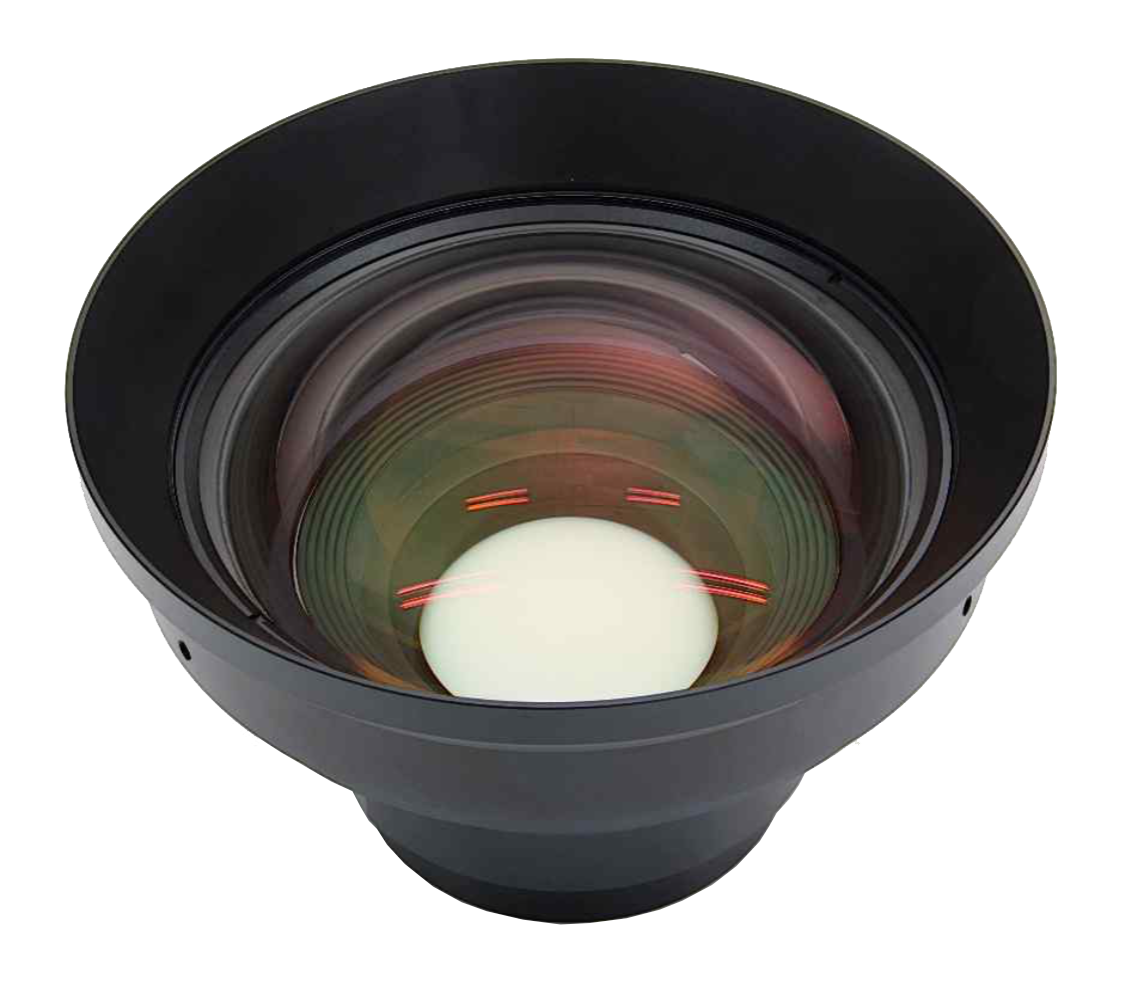

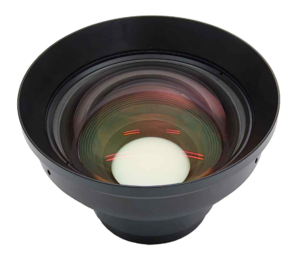

| CL736i | Visible | 70° | 15.0mm | 400mm - Infinity |

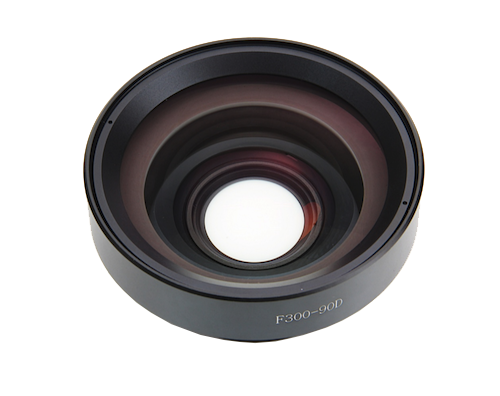

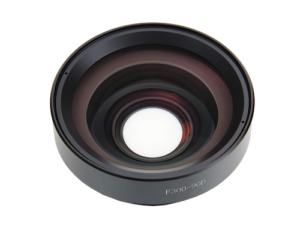

| CL921e | Visible | 90° | 4.5mm | 400mm - Infinity |
| CL1021i | Visible | 100° | 4.5mm | 400mm - Infinity |

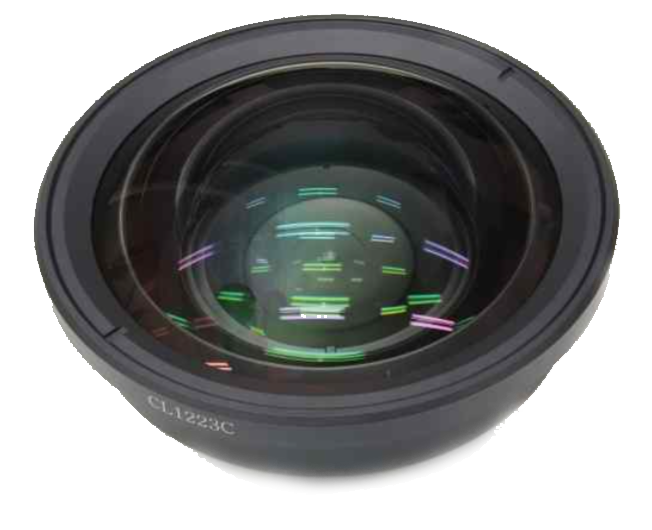

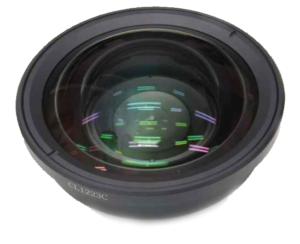

| CL1223i | Visible | 120° | 4.5mm | 350mm - Infinity |
| CL825I | IR (850nm, 940nm) | 80° | 4.0mm | 400mm - Infinity |
| CL921IR | IR (850nm, 940nm) | 90° | 4.5mm | 400mm - Infinity |
This relay lens system is designed for R&D. You can request a quote from the Imatest Store. For more information, pricing, and current lead time, contact sales@imatest.com.
