Using Rescharts

Getting started

Most of the charts described on this page can be purchased from the Imatest store, and many can printed from files created in Test Charts (good equipment and skill required).

Photograph or scan the chart, taking care to avoid glare, which can be problematic in charts with semigloss and glossy surfaces. Glare can be especially difficult to control with wide angle lenses (matte charts are recommended for SFRplus). A recommended lighting setup is described here and in Building a Low-Cost Test Lab.

To start Rescharts, run Imatest, then click the Rescharts button. The Rescharts window will appear with brief instructions, which may be more up-to-date than the ones shown below.

Rescharts opening window, with brief instructions

Select an image to analyze by

• clicking on Read image file if the correct Chart type is displayed, or by
• clicking on one of the entries in the Chart type dropdown menu.

The Read image file button and Chart type popup menu are highlighted (yellow background) when Rescharts starts.

A standard Windows dialog appears with the chart type indicated in the title. Open the image file. Multiple files can be opened for averaging (but batch (sequential) runs are not supported in Rescharts).

If the folder contains meaningless camera-generated file names such as IMG_3734.jpg, IMG_3735.jpg, etc., you can change them to meaningful names that include focal length, aperture, etc., with the Rename Files utility, which takes advantage of EXIF data stored in each file.

For modules other than SFRplus, eSFR ISO, SFRreg or Checkerboard, if the image is the same pixel size as an image previously analyzed by Rescharts (up to 20 recent file settings saved), you’ll be asked if you want to use the same ROI (region of interest). (ROI selection is entirely automatic with SFRplus, eSFR ISO, and SFRreg.)

ROI repeat dialog box, shown zoomed in

If the image size or type is different or if you answer No, a coarse cropping box appears. The initial crop doesn’t have to be precise: you’ll have a chance to refine it.

• For Slanted-Edge SFR, select the region you want. Recommended cropping.
• For Log Frequency (simple), select a narrow strip running from along the direction of increasing spatial frequency. Narrow strips of the Log Frequency-Contrast chart can be used.
• For Log F-Contrast, select most of the chart image excluding the bar patterns at the top and bottom, leaving small margins (1/2 to 1% of the image dimensions) at the edges.
• See the individual instruction pages for Star chart, Wedge, and Random (scale-invariant).

After the rough crop has been selected, the fine adjustment box appears, showing the coarse crop as a rectangle. This dialog box can be enlarged or maximized to facilitate the adjustment. It offers numerous options.

ROI fine adjustment dialog box for SFR. A more complex box may appear for other modules.

• The entire ROI can be moved ( ^ > v < , upper-left).
• The top, bottom, left, or right sides can be moved ( T^ Tv R> R< B^ Bv L> L< , middle-left).
• You can choose between Fine, Coarse, and Extra Coarse movement (1, 5, or 25 pixels of movement per click).
• The display can be zoomed out or in.
• Pixel values for the four corners can be entered (X(tl), Y(br), …, where tl = top-left, br = bottom right, etc.). The origin is the upper-left. Be sure to press the Enter key after entering a value.

When you have completed the fine adjustment, click one of the buttons on the bottom of the window. If you click Yes, Continue , an additional dialog box will appear. The entries in this dialog box can be changed later by clicking on More settings in the Rescharts window. If you click Yes, Continue in Express mode , it will go directly to the Rescharts window, using saved values.

The Rescharts window

After the image file has been entered, calculations are performed and the most recent Chart view is displayed. The normalized MTF/contrast (2D pseudocolor contour) display for Log F-Contrast is shown below.

MTF contours for the Panasonic G3 compact system camera, showing how contrast affects MTF.
Downloaded from Imaging-Resource.com (a great resource:
Find the camera review, click on Samples, then scroll down to Multi-target.)

The main display image is on the upper left. Additional text results may appear below this image. An image of the chart is shown on the upper right. You can choose to display the whole image or the crop (ROI). The remainder of the right side is the control area.

The Zoom dropdown menu (below the thumbnail on the upper-right) lets you choose between Zoom (double-click on the image to restore the original magnification), Rotate 3D, and Data cursor (a useful function that lets you examine numerical values at the point of interest).

The buttons to the right of Zoom set the display to either the Whole image or a Crop of the image (the selected ROI).

Image and Display areas

Display options

The image area on the right of the Rescharts window, includes the the Read image file and Reload buttons, the Chart type dropdown menu (described above), and additional controls.

Reload reloads an image from a file or reacquires it from a device or video stream (depending on how the image was originally acquired).

Immediately below the Chart type menu is the New analysis (same image) button and menu. When the button is pushed or an item is selected on this menu, the image is recropped for analysis by the selected chart type (which may be the same or different). This menu is useful when several regions of an image need to be analyzed or when the target contains more than one chart type.

More settings brings up the input dialog box for the selected chart type. This is the same box that appears when you press Yes, continue (not Express mode) in the ROI repeat or ROI selection window.

Display, immediately below the image area, selects the results to display. Choices depend on the chart type.

The Display options area is immediately below Display. The contents, which depend on the Display selection, are described below in the sections for the individual displays.

Save screen (shown on the right) saves a snapshot of the current display (the entire Rescharts screen) as a PNG file (a widely-used losslessly-compressed format). It also allows you to immediately view the snapshot (if the Open window… box is checked) so it can be used a reference for comparing with other results.

File name and Directory at the top of the window set the location of the file to save.

When you check the Open window in an image viewer… box, the current screen will be opened either the system default viewer (if the box under Image viewer is blank) or a viewer/editor of your choice (if the box contains the path name to the viewer/editor). We recommend Irfanview, which is fast, compact, free, and supports an amazing number of image file formats. (It can be valuable for converting nonstandard images to Imatest-readable formats.) Its normal location in English language installations is C:Program FilesIrfanViewi_view32.exe. FastStone viewer is also an excellent choice.

Save data Saves detailed results in CSV, XML, and/or JSON formats. The exact content depends on the module.

Help opens this web page in an HTML browser window.

Exit terminates Imatest Rescharts and returns to the Imatest main window.

Rescharts utilities

Numerous helpful utilities are available from the Rescharts window. We present the highlights from the dropdown menu (omitting items that have their own buttons). The dropdown menu has the following entries:

File Settings INI File Settings Region selection Help

File	Save image file	Saves the image under test in a named file. Useful for the Image Sensor version, where images may be acquired directly from devices.
	Copy screen	Copies the screen to the clipboard. Paste may not work in all applications.
	Copy image	Copies the image under test to the clipboard. Paste may not work in all applications.
	Copy image file name	May be useful in reports.
	Copy image file path	Can be pasted into Windows Explorer.
	Explore image file folder	Opens Windows Explorer for the image file folder.
	Explore recent save folder	Opens the recent save folder. Very useful for viewing saved results.
	View all EXIF data	Opens a separate window with EXIF (meta)data for the file under test. Exiftool must be installed.
Settings	Read raw setup	Set up parameters to read manufacturer’s (unpacked) raw files. Described here.
	Small… Fonts	Set font size. Useful when Rescharts window is displayed large for demonstrations.
	Show annotation box	Replaces a portion of the Display area with a box where you can type text to describe screen images (use with Save screen). Close with Close button on lower right.
	Annotation box- last setting	Opens the Annotation box with the last (saved) setting.
	Save 3D view	Save the current 3D view (angle) for the next time a 3D plot is opened.
	Default 3D view	Restore the default 3D view angle.
	AGC 16-bit MTF files	Auto adjust levels for MTF analysis of 16-bit (48-bit color) files. Helps when files are too dark.
INI File Settings	These utilities allow you to manipulate the ini file, which is the file where settings are saved. rescharts.ini (where saved settings are stored) has been merged into imatest-v2.ini, which is now compatible with non-Latin characters (Asian languages) They are listed in Saved settings.
Chart configuration	Set Chart configuration for Random/Dead Leaves, Star, or Log F-Contrast. They affect the region selection (chart layout, location of grayscale patches, registration marks, etc.). The proper setting should be made before reading the file.
Help	Online Help	Opens this web page, Using Rescharts.
	Register	Opens the Imatest (Nalpeiron) License manager.
	About	Opens the About Imatest page, which contains the version, build date, and links to Registration programs.
	Using [module, etc.]	Opens web pages with instructions for the various Rescharts modules.

Modules

This section describes the Rescharts modules in more detail, illustrating some of the available displays and options. Note that most of these also function as fixed (batch-capable) modules. More information is available in the pages for the individual modules (Chart typea-s).

Slanted-edge SFR

Slanted-edge SFR measures sharpness as Spatial Frequency Response, also called MTF (Modulation Transfer Function) from images of slanted edges. ROI (Region of Interest) selection, calculations, and output largely duplicate SFR. Available displays Edge and MTF (shown on the right). The edge can be displayed linearized or not and normalized or not. LSF (the Line Spread Function) can be displayed in place of the edge. Chromatic Aberration (right, below) SQF (Subjective Quality Factor) Noise spectrum & Shannon capacity Histograms & noise stats (left, below) Summary & EXIF (for JPEGs) The principal differences from SFR are the highly interactive interface and the limitation that only one ROI can be displayed. In the histogram of ROI levels, shown below, Black is the entire ROI. Cyan is the portion on the left and red is the portion on the right, both away from the edge. The upper histogram is for the original image (pixel levels/255); the lower histogram is for the linearized image (gamma applied).

SFR Edge and MTF display

SFR Histogram

SFR Lateral Chromatic Aberration

SFRplus, eSFR ISO, SFRreg, and Checkerboard

SFRplus multi-region summary display for 9 automatically-selected regions

Log Frequency (simple)

Log frequency image: right-click to download an image that can be used for testing.

Log Frequency measures image contrast of sinusoidal charts that increase in spatial frequency on a logarithmic scale (log frequency increases with x). For a sinusoidal image pattern (not a bar pattern) the contrast is equivalent to SFR or MTF. This method is more direct than Slanted-edge SFR, but less accurate because it is degraded by noise and sampling phase variation— and it requires a lot more real estate. It also measures color moiré (Imatest Master only). The chart can be created by Test Charts and printed on a high quality inkjet. Also works with narrow strips of the Log Frequency-Contrast chart.

Available displays: Full instructions

The display on the right shows Contrast (MTF) on the top and color moire on the bottom as a function of spatial frequency (displayed linearly). Color moire can me measured in several ways: R-B (normalized Red − Blue channel) is shown on the right. The total color moire is the spread of values above 0.3 cycles/pixels (indicated by the red curve). Details of the color moire measurement can be found in Log Frequency. The Correct for color density box should be checked for best results.

Pattern (original pixel levels and linearized)

Log F-Contrast

Log F-Contrast (short for Log Frequency-Contrast) measures the image contrast of charts that vary in spatial frequency on one axis (log frequency increases with x) and in contrast on the other (contrast is proportional to ( y/h)2 for image height h). When the image pattern is sinusoidal (rather than a bar pattern) the contrast is equivalent to SFR or MTF. This module can be used to measure how much fine, low-contrast detail is lost to software noise reduction. The chart can be created by Test Charts and printed on a high quality inkjet printer. Available displays: Full instructions The Pattern (original pixel levels and linearized) MTF (linear frequency scale) MTF (log frequency scale) 2D pseudocolor contour plots that can display any of several MTF-related parameters: MTF (envelope – standard) (standard MTF, normalized to 1 at maximum contrast and zero spatial frequency) Normalized contrast level (MTF normalized to 1 at zero spatial frequency for all contrast levels) Normalized contrast loss (MTF normalized to 1 at zero spatial frequency for all contrast levels as well as all spatial frequencies at the maximum contrast level: shows contrast loss from ideal) MTFnn or MTFnnP (spatial frequencies where MTF = nn% of the low frequency or peak value EXIF data The displays on the right show the Normalized contrast level (MTF normalized to 1 at low spatial frequencies for all chart contrast levels) for the Panasonic TZ1 camera with ISO speed set at 80 (top) and 800 (bottom). Spatial frequency is on a linear scale with a maximum displayed frequency of 0.5 cycles/pixel. The difference between the two images is quite striking. The TZ1 has much more noise reduction— and correspondingly less detail— at ISO 800. These plots are explained in detail in Log F-contrast.

Normalized contrast level (MTF) (1 at low frequencies for all chart contrasts): Panasonic TZ1, ISO 80 Normalized contrast level: TZ1, ISO 800

Star chart

Star Chart measures contrast (MTF or SFR) of sinusoidally-modulated star charts (also known as the Siemens star) proposed for inclusion in the updated ISO 12233 standard. Charts have 144, 72, or 48 cycles and can be analyzed in 8, 12, or 24 segments. Star charts can be created by Test Charts and printed on a high quality inkjet printer. Available displays: Full instructions Display Description MTF (original and linearized) MTF for up to 1, 8, 12, or 24 segments of the star. Both linear and logarithmic frequency displays are available. MTFnn or MTFnnP Display MTFnn (the frequencies where MTF equals nn % of the low frequency values) and MTFnnP (the frequencies where MTF equals nn % of the peak value) for nn = 70, 50, 30, 20, and 10. Both polar (spider) and rectangular plots are available. MTF contours (rectangular) Display MTF contours in a rectangular plot with linear or logarithmic frequency display. Similar to the MTFnn rectangular plot. MTF contours (polar) Display MTF contours in a polar plot whose geometry duplicates that of the target. EXIF data Show EXIF data if available. The display on the right shows MTF70 through MTF10 (spatial frequencies where MTF = 70 through 10% of the low frequency level). Spatial frequency is displayed in cycles per pixel, but Line Widths per Picture Height (LW/PH), cycles/inch, or cycles/mm can be selected with More settings.

MTF70 – MTF10: Polar coordinates, Linear frequency on radius.

Wedge

Wedge  measures the onset of aliasing (the spatial frequency where the bar count starts decreasing; related to vanishing resolution) as well as MTF (Modulation Transfer Function) from converging bar patterns, called “wedges”, which are a part of many popular resolution test charts, including eSFR ISO. “Hyperbolic” (linear in frequency) wedge patterns are central to the CIPA DC-003 standard for digital camera resolution measurement, which is included in the ISO 12233:2014 resolution measurement standard.

Wedge can analyze vertical and horizontal (but not diagonal) wedges. To the best of our knowledge, Imatest Wedge is the only software that can calculate MTF from wedge patterns, but there is a significant limitation with the calculation: the results at the Nyquist frequency (and also 2/3 Nyquist) are highly sensitive tothe phase of the bars relative to the pixels, i.e., the sub-pixel positioning, which is difficult to control in practice.

Full instructions The display on the right shows Contrast (MTF) and the onset of aliasing (the frequency where the number of detected bars (smoothed) drops below the actual number of bars in the chart. The original wedges are shown (with squeezed aspect ratio). Several results including MTFnn for nn = 70-10 are shown below the image. The color moire plot for R-B (normalized Red − Blue channel) is shown on below. Color moire

MTF and Aliasing onset (“vanishing resolution”)

Random / Dead Leaves / Spilled Coins

Imatest 5.0+ supports several variants of this chart. Automatic region detection is available.

Analyzes scale-invariant (or nearly scale-invariant) random patterns, which have a 1/f Fourier transform (1/f ² Power Spectral Density (PSD)). Scale-invariant patterns have the same general appearance (the same statistics) regardless of distance. They include the Imatest “Spilled Coins” enhancement of the “Dead Leaves” pattern, recommended for texture measurements in the IEEE CPIQ Standard.

Imatest “Spilled Coins” (Dead Leaves) chart Since the random scale-invariant random pattern lacks contrasty edges, images typically have the minimum sharpening and maximum noise reduction for imaging systems with nonlinear/non-uniform signal processing (including most small consumer cameras and camera phones). This makes this pattern an excellent indicator of a camera’s ability to render fine low-contrast detail, i.e., texture. The Spilled Coins/Dead Leaves pattern has some low-contrast edges, making it fairly representative of realistic images— and also valuable for measuring texture response. Slanted-edges, by comparison, tend to have maximum sharpening and minimum noise reduction, and hence may not give an accurate indication of a camera’s response to fine texture. Noise power measured in the smooth outer regions, is subtracted from the PSD of the random pattern. Low contrast slanted-edges are used to verify the random pattern results.

MTF from Random scale-invariant pattern

Focus Score (formerly Any Image Sharpness)

Measures sharpness of any scene. The sharpness metric is nonstandard and applies to the individual scene only (it cannot be used for comparisons with other scenes). (It’s the same metric used in Find sharp files.) Useful for optimizing focus during reloads using direct acquisition of frames from live (video) feeds.  Displays the image and a history showing changes in sharpness as the device is focused.

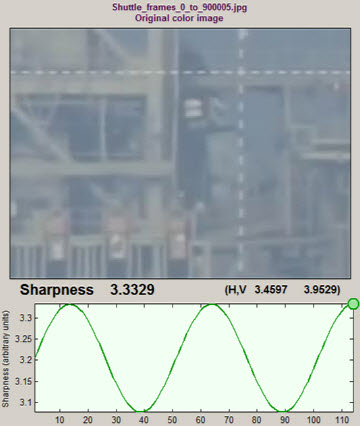

Focus Score display
showing simulated history
(representing focusing to find optimum)
